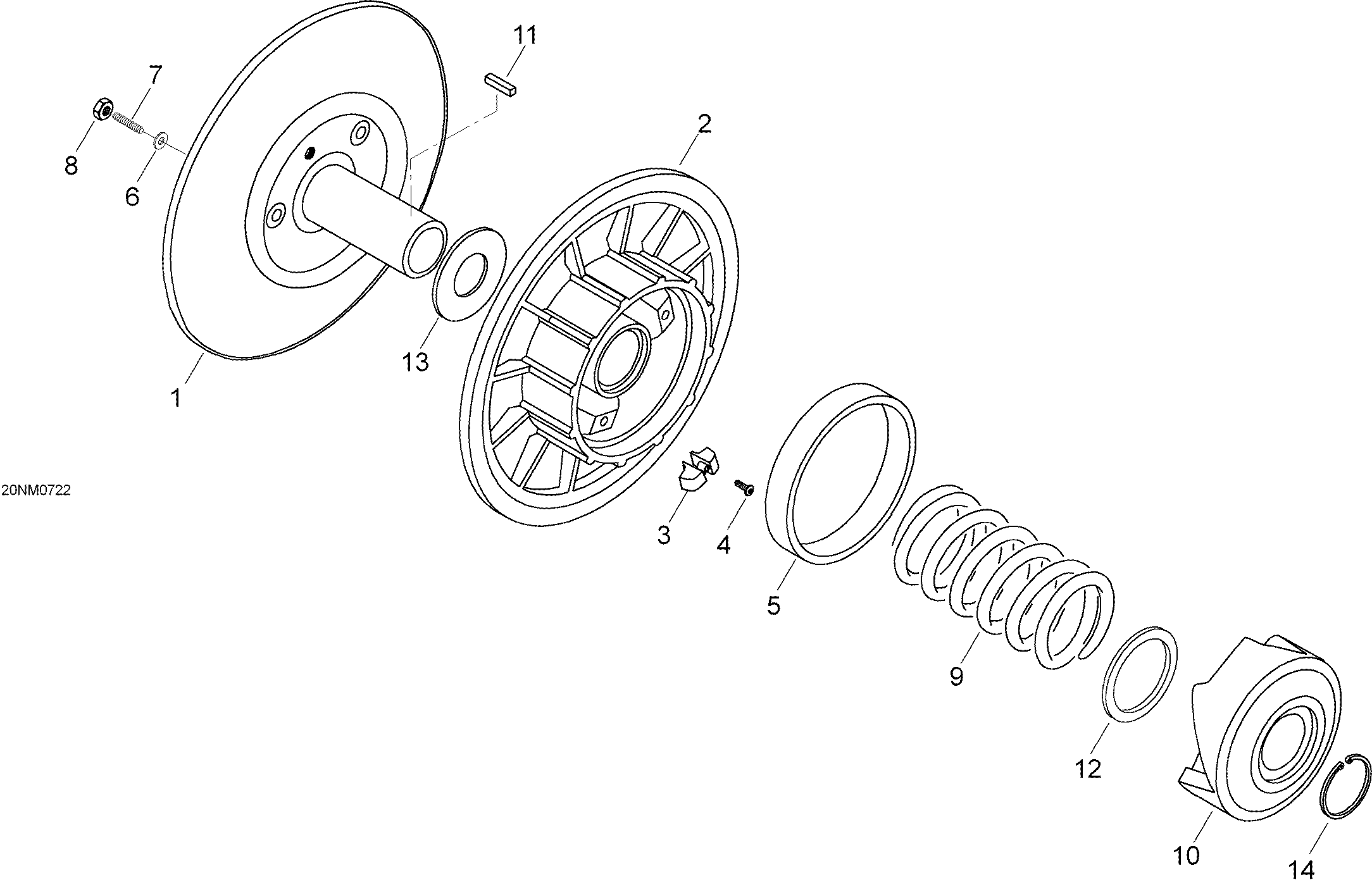

05- Driven pulley для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
1140065 Fixed half pulleyFixed half pulley
-
2140066 Sliding half pulley. Includes 2 to 5Sliding half pulley. Includes 2 to 5
-
3140068 Cam shoeCam shoe
-
4619100006 ScrewScrew
-
5140053 Cam bushingCam bushing
-
6420245370 WasherWasher
-
7619100003 Hexagonal head screwHexagonal head screw
-
8232061414 Nut M6Nut M6
-
9417119100 Spring blueSpring blue
-
10140067 Fix cam 40Fix cam 40
-
11417119400 Sguare keySguare key
-
12619100007 WasherWasher
-
13504099600 ShimShim
-
14371903100 Snap ringSnap ring
