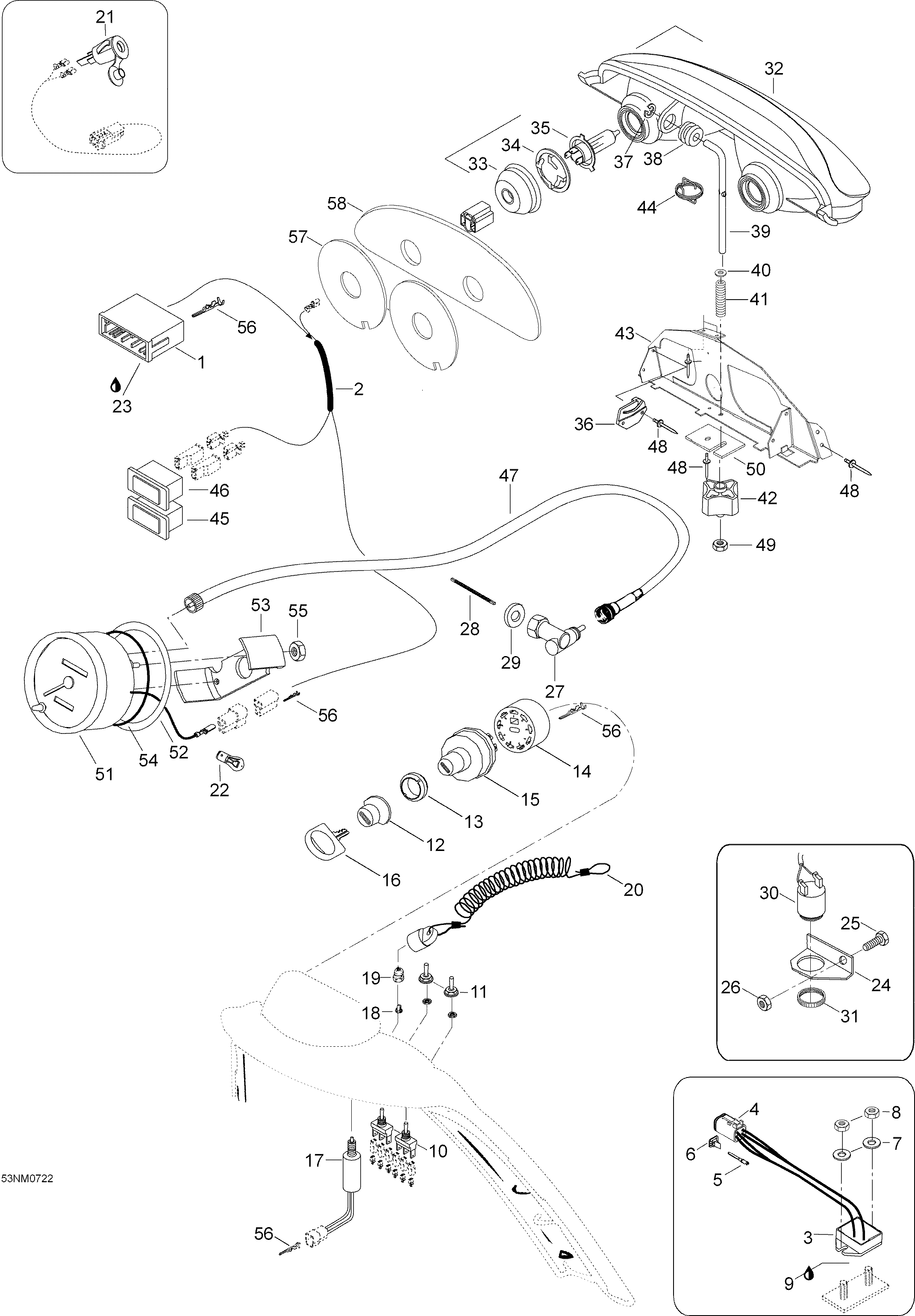

10- Electrical Acessories для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
142617 Male connector housingMale connector housing
-
25348360 Wiring harness, hoodWiring harness, hood
-
3515175939 Rectifier ass'y. Includes 3 to 6Rectifier ass'y. Includes 3 to 6
-
4278001477 Connector housingConnector housing
-
5515175568 ConnectorConnector
-
6278001478 WedgeWedge
-
720009 Washer A6,4Washer A6,4
-
833010 Elastic stop nut M6Elastic stop nut M6
-
9413707500 GreaseGrease
-
10410107300 SwitchSwitch
-
11515175281 CoverCover
-
12570013700 BootBoot
-
13410112100 NutNut
-
14572150700 Ignition blockIgnition block
-
1542019 Ignition switchIgnition switch
-
16414991700 Blank keyBlank key
-
17515175571 Brake switch ass'yBrake switch ass'y
-
18570151100 CapCap
-
19515145900 NutNut
-
20515151500 Cap ass'yCap ass'y
-
2142026 Flush mounted socketFlush mounted socket
-
22410504200 Instrumentation bulbInstrumentation bulb
-
23320005 Dielectric greaseDielectric grease
-
24549459 BracketBracket
-
2540029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2633200 Elastic flanged nut M6Elastic flanged nut M6
-
2735021 Gear UnitGear Unit
-
2845009 Insert cableInsert cable
-
295444186 SealSeal
-
30414792102 Back up alarmBack up alarm
-
31414805101 RingRing
-
325347352 Head lamp ass'y. Includes 32 to 35Head lamp ass'y. Includes 32 to 35
-
33410607100 CoverCover
-
34410608300 Bulp halderBulp halder
-
35410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
36517289300 R.H. Headlamp SupportR.H. Headlamp Support
-
36517289400 L.H. Headlamp SupportL.H. Headlamp Support
-
37732610072 Nut PushNut Push
-
38415100800 GrommetGrommet
-
395448100 Adjuster rodAdjuster rod
-
4020003 Washer A6,4Washer A6,4
-
41415100600 SpringSpring
-
42515175548 HandleHandle
-
435248092 BracketBracket
-
445445737 SpringSpring
-
45410109600 Pilot LampPilot Lamp
-
46410109500 Pilot LampPilot Lamp
-
475344162 Speedometer cableSpeedometer cable
-
4836005 RivetRivet
-
4933010 Elastic stop nut M6Elastic stop nut M6
-
505448320 Locking plateLocking plate
-
51605152889 SpeedometerSpeedometer
-
52517258500 Washer. ST 550Washer. ST 550
-
53414806500 Holder. ST 550Holder. ST 550
-
54414807100 O-ring. ST 550O-ring. ST 550
-
5533062 Elastic flanged nut M5Elastic flanged nut M5
-
5642603 ConnectorConnector
-
575247817 FilterFilter
-
585447818 Plastic platePlastic plate
