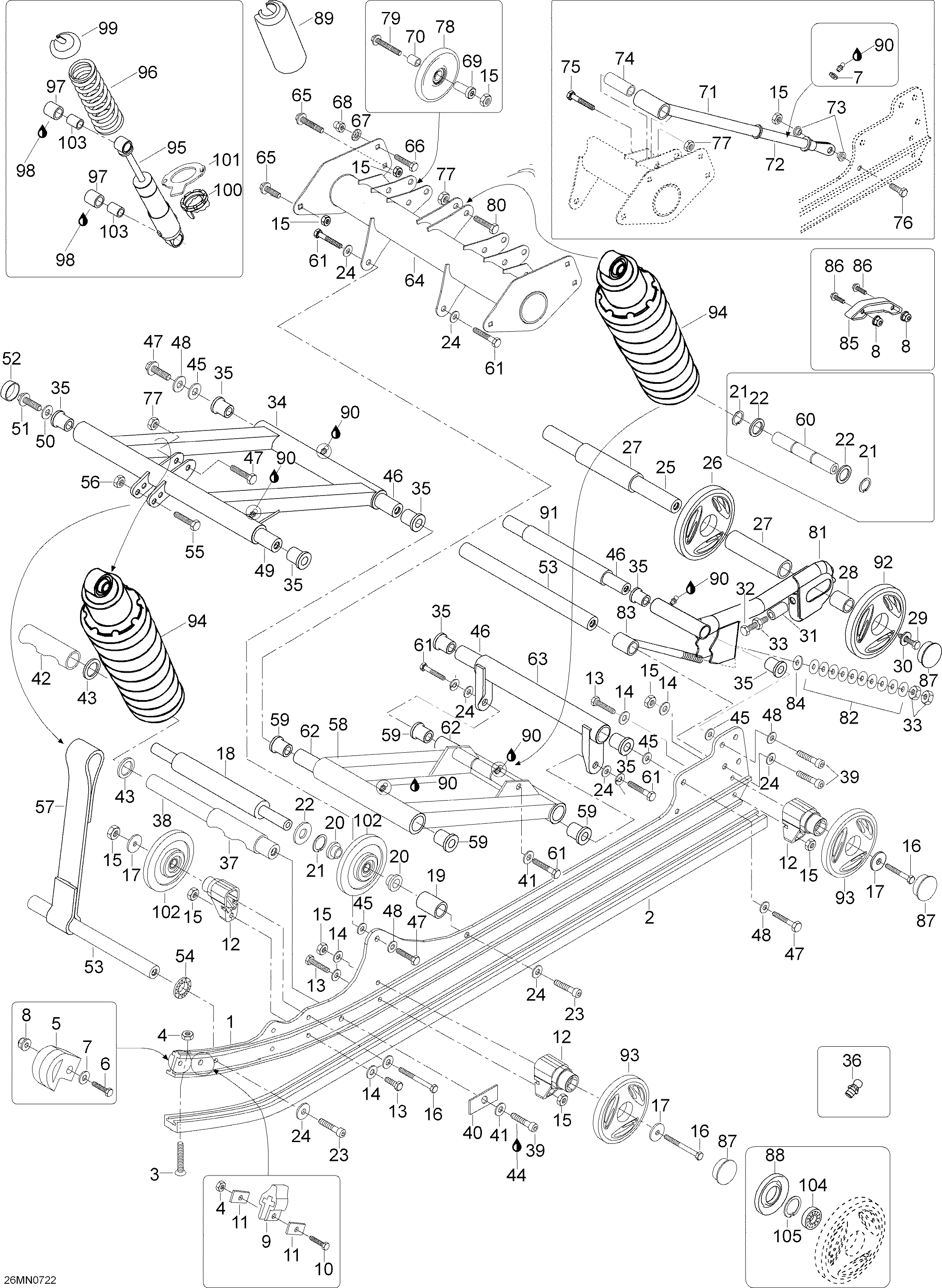

08- Rear Suspension для BRP Lynx ST 550 - 2007
-
№АртикулНазвание
-
1605253573 RunnerRunner
-
25347724 Shoe runnerShoe runner
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95448216 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 Support plateSupport plate
-
12605450182 SupportSupport
-
1340037 Hex. screw M8 x 25Hex. screw M8 x 25
-
1420104 Washer, hardened 8mmWasher, hardened 8mm
-
1533011 Elastic stop nuut. M8Elastic stop nuut. M8
-
1640089 Hex. screw M8 x 75Hex. screw M8 x 75
-
17503183100 Washer 8mm, hardenedWasher 8mm, hardened
-
185347950 AxleAxle
-
195447951 SleeveSleeve
-
20503189534 InsertInsert
-
2131007 CirclipCirclip
-
2231091 ShimShim
-
2340134 Socket head screw M10 x 45Socket head screw M10 x 45
-
2420105 Washer, hardened 10mmWasher, hardened 10mm
-
255343284 AxleAxle
-
26503189478 Support wheel 165mmSupport wheel 165mm
-
275444096 SleeveSleeve
-
285444098 SleeveSleeve
-
2940050 Hex. screw M10 x 35Hex. screw M10 x 35
-
30503183300 Washer, hardened 10mmWasher, hardened 10mm
-
31605452332 SleeveSleeve
-
3240239 Hex. screw M10 x 100Hex. screw M10 x 100
-
3333004 Nut M10Nut M10
-
345147672 Front armFront arm
-
3531024 CushionCushion
-
3634011 Grease nippleGrease nipple
-
375347718 LimiterLimiter
-
385347726 AxleAxle
-
3940536 Socket head screw M10 x 45Socket head screw M10 x 45
-
405447940 Support plateSupport plate
-
4120068 Lock washerLock washer
-
425346649 LimiterLimiter
-
4331013 ShimShim
-
44293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
4520116 WasherWasher
-
465347713 AxleAxle
-
4740016 Hex. screw M10 x 45Hex. screw M10 x 45
-
48512056700 Lock washerLock washer
-
49605348606 AxleAxle
-
5020090 WasherWasher
-
5140243 Hex. screw M12 x 60Hex. screw M12 x 60
-
525448025 CapCap
-
535347717 AxleAxle
-
544181158 Snap ringSnap ring
-
5540008 Hex. screw M8 x 45Hex. screw M8 x 45
-
5633011 Elastic stop nut M8Elastic stop nut M8
-
575447961 Stopper strapStopper strap
-
58605349313 Rear armRear arm
-
5931027 CushionCushion
-
60605451897 AxleAxle
-
6140014 Hex. screw M10 x 40Hex. screw M10 x 40
-
625346865 AxleAxle
-
635347668 Rear armRear arm
-
64605249988 Upper armUpper arm
-
6540058 Locking screw M8 x 20Locking screw M8 x 20
-
6640056 Locking screw M8 x 16Locking screw M8 x 16
-
6720072 Lock washerLock washer
-
6833044 Nut M8Nut M8
-
69605450372 SleeveSleeve
-
70605450373 SleeveSleeve
-
715347851 Poker shaftPoker shaft
-
725347852 Poker tubePoker tube
-
735447853 SleeveSleeve
-
745447848 CushionCushion
-
7540011 Hex. screw M8 x 60Hex. screw M8 x 60
-
76207103544 Hex. screw M10 x 35Hex. screw M10 x 35
-
7733012 Elastic stop nut M10Elastic stop nut M10
-
7846027 Idler wheelIdler wheel
-
7940088 Hex. screw M8 x 70Hex. screw M8 x 70
-
8040017 Hex. screw M10 x 50Hex. screw M10 x 50
-
81605251780 R.H. ExtensionR.H. Extension
-
81605251779 L.H. ExtensionL.H. Extension
-
8225004 Spring plateSpring plate
-
835447373 Eye bolt adjusterEye bolt adjuster
-
8420011 Washer 10,5mmWasher 10,5mm
-
855343191 ProtectorProtector
-
8640064 Locking screw M6 x 40Locking screw M6 x 40
-
87570063600 ProtectorProtector
-
88572089000 Labyrinth sleeveLabyrinth sleeve
-
895346754 Shock protectorShock protector
-
90413711500 Synthetic greaseSynthetic grease
-
91605448429 SleeveSleeve
-
92503190856 Idler wheel 165mm/Full MoonIdler wheel 165mm/Full Moon
-
93503190797 Idler wheel 135mm/Full MoonIdler wheel 135mm/Full Moon
-
94605348908 Shock ass'y, front arm. Includes 94 to 100Shock ass'y, front arm. Includes 94 to 100
-
94605348909 Shock ass'y, rear arm. Includes 94 to 101Shock ass'y, rear arm. Includes 94 to 101
-
94605350647 Shock ass'y, rear armShock ass'y, rear arm
-
9523161 Shock, fron armShock, fron arm
-
9523152 Shock, rear armShock, rear arm
-
9625059 Spring, front armSpring, front arm
-
9625060 Spring, rear armSpring, rear arm
-
9731094 CushionCushion
-
98320006 Glue. LoctiteGlue. Loctite
-
99230076 Spring seatSpring seat
-
100230078 Adjusting cam (front/rear)Adjusting cam (front/rear)
-
101605348748 Cam adjusterCam adjuster
-
102503191029 Support wheel 135/blackSupport wheel 135/black
-
1035446652 SleeveSleeve
-
104405404500 Ball BearingBall Bearing
-
105371901700 CirclipCirclip
