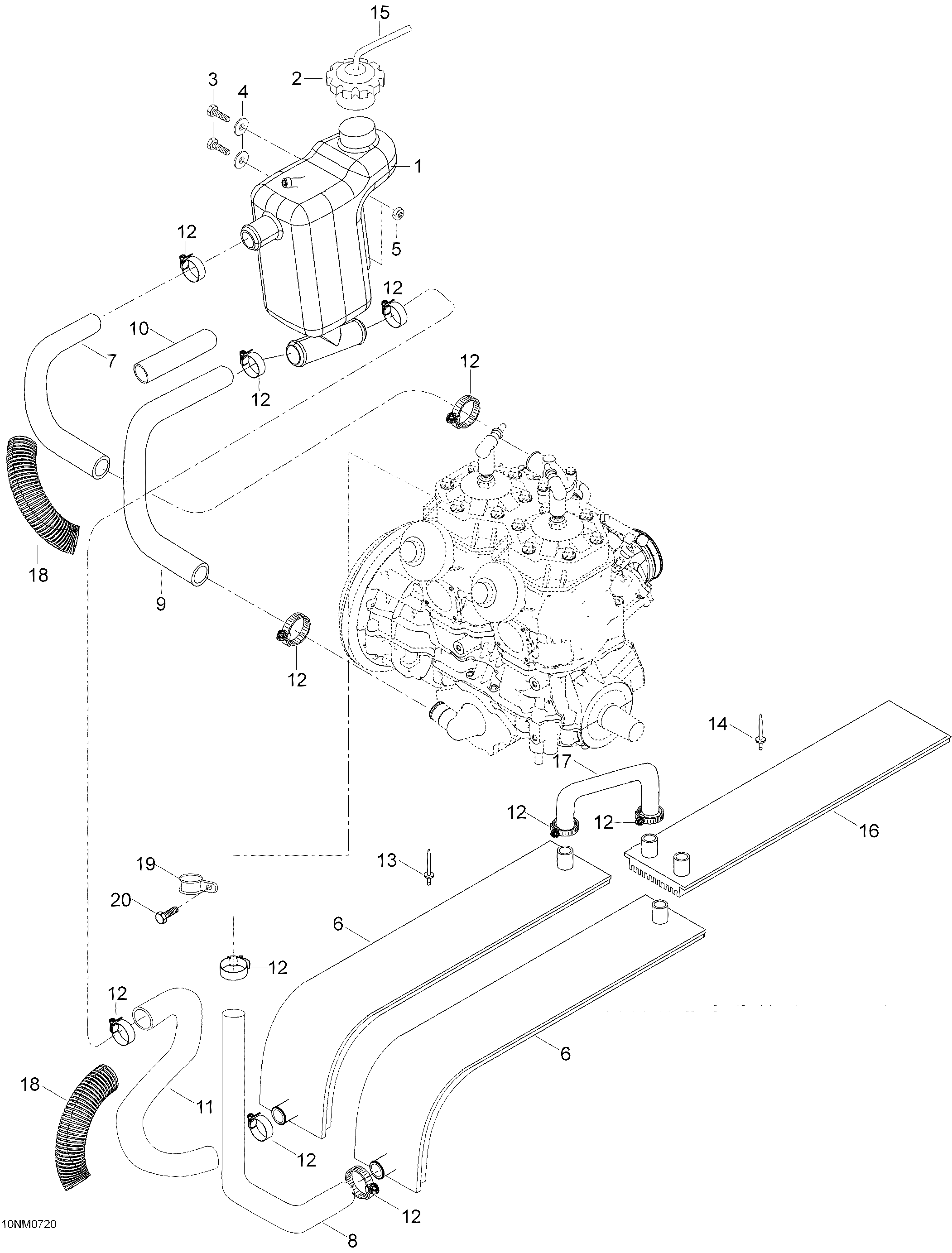

01- Cooling System для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
1605152223 Coolant tankCoolant tank
-
221018 CapCap
-
340029 Hex. sacrew M6 x 16Hex. sacrew M6 x 16
-
420009 Washer A6.4Washer A6.4
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6605151690 R.H. RadiatorR.H. Radiator
-
6605151689 L.H. RadiatorL.H. Radiator
-
7605353969 HoseHose
-
8605253629 HoseHose
-
9605253621 HoseHose
-
1039062 Isolating tubingIsolating tubing
-
11605353968 HoseHose
-
12408800400 ClampClamp
-
1336108 RivetRivet
-
1436489 RivetRivet
-
1539038 HoseHose
-
16605351687 Radiator, rearRadiator, rear
-
17605253904 HoseHose
-
18390003 TubingTubing
-
1927011 ClampClamp
-
2040327 Hex. screw M6 x 12Hex. screw M6 x 12
