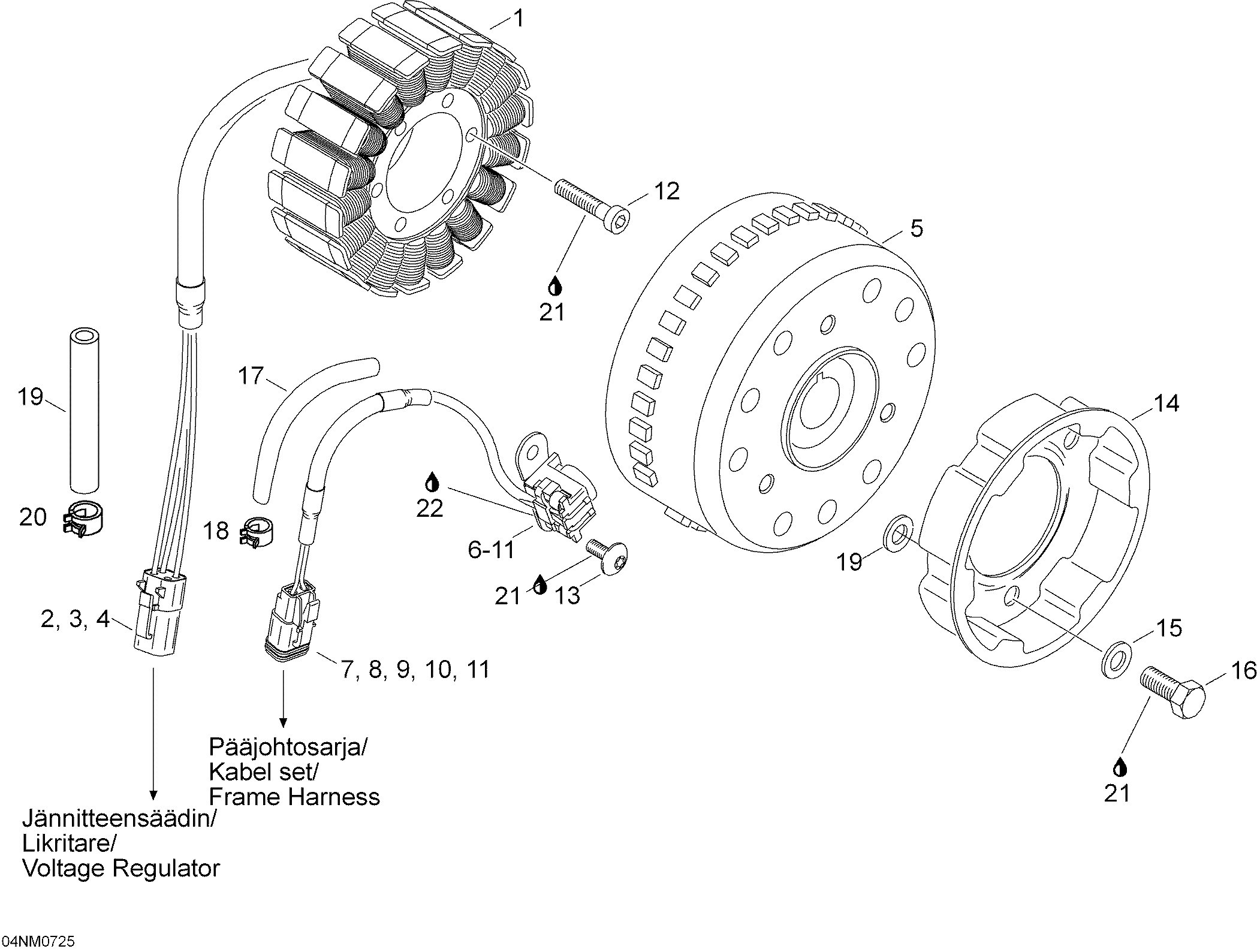

01- Ignition для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
1420866065 Stator assy. Includes 1 to 4Stator assy. Includes 1 to 4
-
2278001473 Female terminal housingFemale terminal housing
-
3515175568 Female terminalFemale terminal
-
4278001474 Female lockFemale lock
-
5420866041 Magneto flywheelMagneto flywheel
-
6420966835 Pick up. Includes 6 to 11Pick up. Includes 6 to 11
-
7515175670 Female terminal housingFemale terminal housing
-
8278000632 Female terminalFemale terminal
-
9278001661 Female terminalFemale terminal
-
10515175675 Female lock (2 circuits)Female lock (2 circuits)
-
11293000052 PlugPlug
-
12420241816 Socket head screw M6 x 40Socket head screw M6 x 40
-
13420640321 Taptite screw M6 x 16Taptite screw M6 x 16
-
14420852532 Starter cupStarter cup
-
15420827405 WasherWasher
-
16420940581 Screw M8 x 16Screw M8 x 16
-
17420460012 TubingTubing
-
18420960890 ClipClip
-
19420660911 TubingTubing
-
20420960892 ClipClip
-
21293800060 Loctite 243, 10mlLoctite 243, 10ml
-
22293530011 PU-glue, sikaflex 255PU-glue, sikaflex 255
