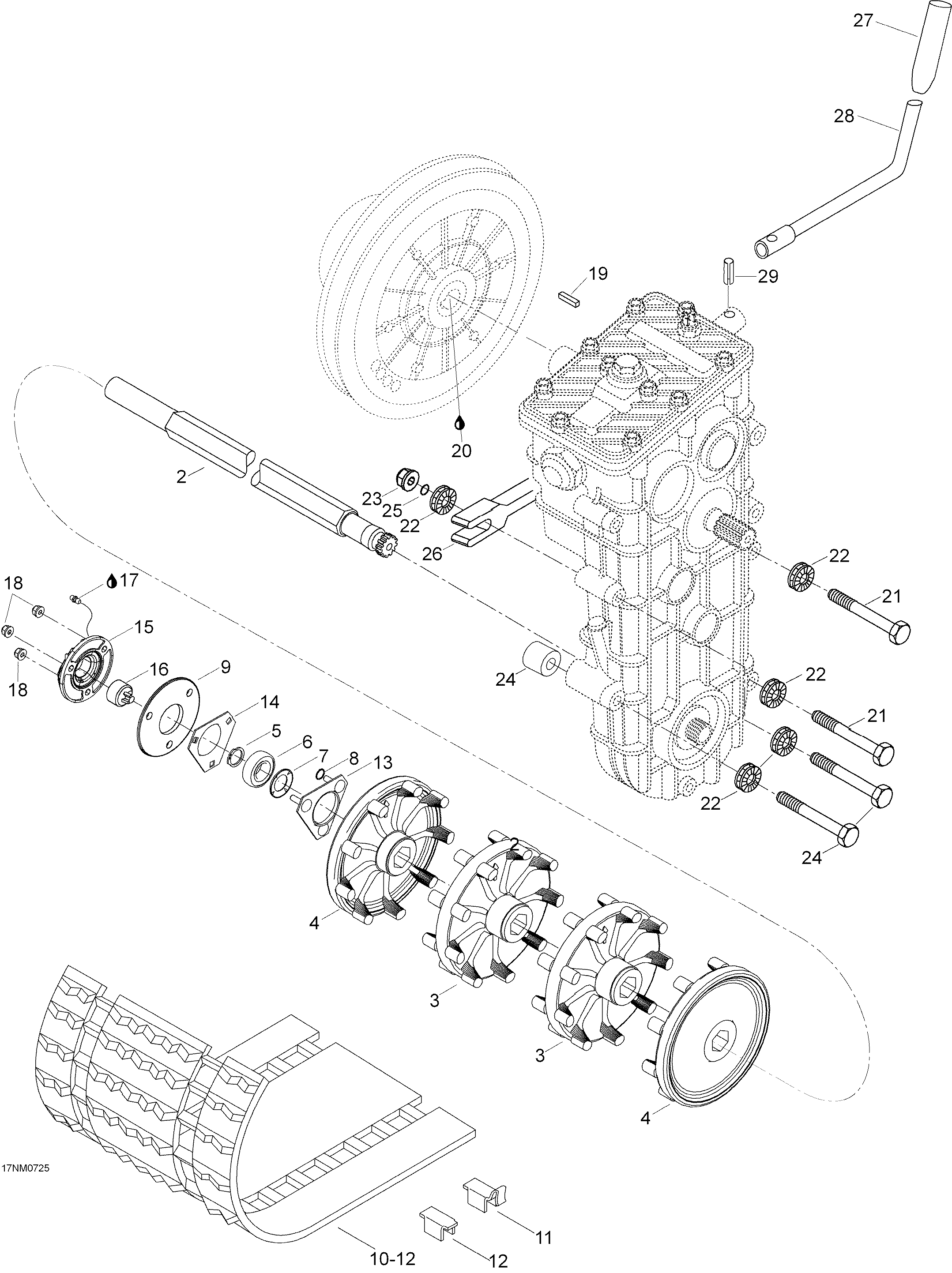

05- Drive Axle And Track для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
1605250539 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605249455 Drive axleDrive axle
-
3414931800 SprocketSprocket
-
4415067400 SprocketSprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 ProtectorProtector
-
8414484400 O-ringO-ring
-
95446641 PlatePlate
-
1013070 Track ass'y. Includes 10 to 12Track ass'y. Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Ball bearing housingBall bearing housing
-
14501025000 FlangeFlange
-
15504152173 Speede sensor flangeSpeede sensor flange
-
16504152040 Magnetic adaptorMagnetic adaptor
-
17413711500 Synthetic greaseSynthetic grease
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, antiseize lubricant, 8ozLoctite 767, antiseize lubricant, 8oz
-
2140299 Hex, screw M8 x 110Hex, screw M8 x 110
-
2220072 Lock washerLock washer
-
605453927 ClampClamp
-
40299 Hex, screw M8 x 100Hex, screw M8 x 100
-
2333011 Elastic flanged nut M8Elastic flanged nut M8
-
24605452406 SleeveSleeve
-
25506151140 O-ringO-ring
-
26605352407 Support shaftSupport shaft
-
2728247 Shift buttonShift button
-
28605350153 Shaft handleShaft handle
-
2941008 Spring keySpring key
