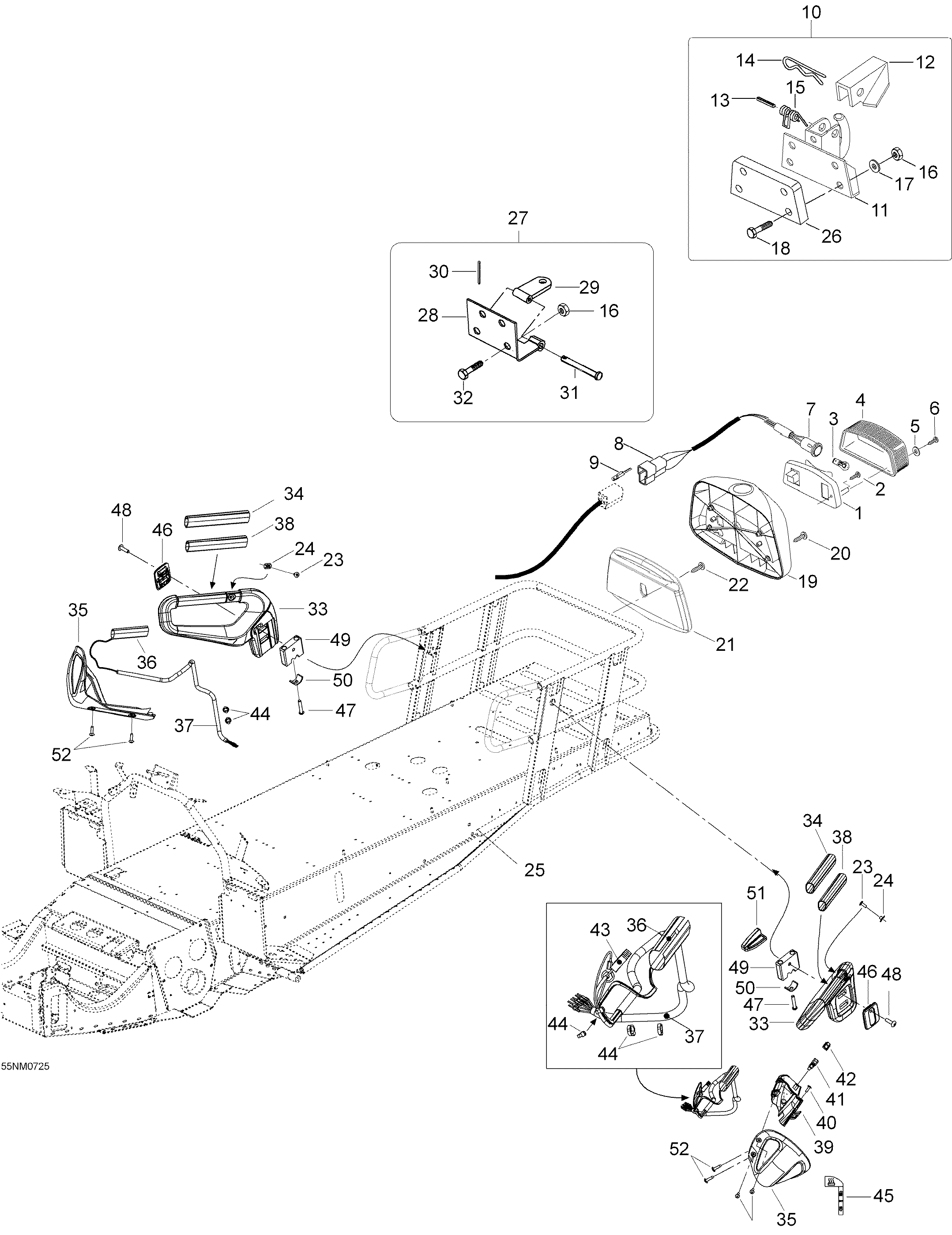

09- Luggage Rack для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
1515175397 Tail lamp housingTail lamp housing
-
240207 Screw 4.8 x 45Screw 4.8 x 45
-
3410504000 Bulp tail lampBulp tail lamp
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6414516300 ScrewScrew
-
7515175852 Bulp holder + cabelBulp holder + cabel
-
842606 Female terminal housing (3-circuits)Female terminal housing (3-circuits)
-
942614 Female terminalFemale terminal
-
105344156 Hitch ass'y. Includes 12 to 17Hitch ass'y. Includes 12 to 17
-
115344208 HitchHitch
-
125440767 LockLock
-
1341012 PinPin
-
1441029 Hair pinHair pin
-
15545693 SpringSpring
-
1633011 Elastic stop nut M8Elastic stop nut M8
-
1720004 Washer A8,4Washer A8,4
-
1840009 Screw M8 x 50Screw M8 x 50
-
19605251392 Bakljus skyddBakljus skydd
-
2040206 Screw 4.8 x 25Screw 4.8 x 25
-
21605251963 Base tail lampBase tail lamp
-
2240322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
23250000129 Screw M6 x 16Screw M6 x 16
-
24293100003 NutNut
-
25572051500 PlugPlug
-
26605351510 ExtensionExtension
-
275344152 Hitch ass'yHitch ass'y
-
285344151 PlatePlate
-
29548745 Hitch plateHitch plate
-
30560309200 Pin-retainerPin-retainer
-
3141031 PinPin
-
3240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
33510004367 R.H. GripR.H. Grip
-
33510004711 L.H. GripL.H. Grip
-
34510004449 GripGrip
-
35510004415 R.H. DeflectorR.H. Deflector
-
35510004416 L.H. DeflectorL.H. Deflector
-
36515176393 Heating elementHeating element
-
37515175506 TubingTubing
-
38510004709 Handle reinforcementHandle reinforcement
-
39510004566 Housing switchHousing switch
-
40250000146 ScrewScrew
-
41510004413 SwitchSwitch
-
42510004414 Prorector switchProrector switch
-
43515176241 Wiring harnessWiring harness
-
44414115200 Tie-rapTie-rap
-
45516002835 DekalDekal
-
46510004405 MoldingMolding
-
47250000220 Screw M8 x 45Screw M8 x 45
-
48250000197 Torx-screw M8 x 30Torx-screw M8 x 30
-
49510004530 Handle linkHandle link
-
50510004565 Handle clampHandle clamp
-
51510004419 GripGrip
-
52250000199 ScrewScrew
