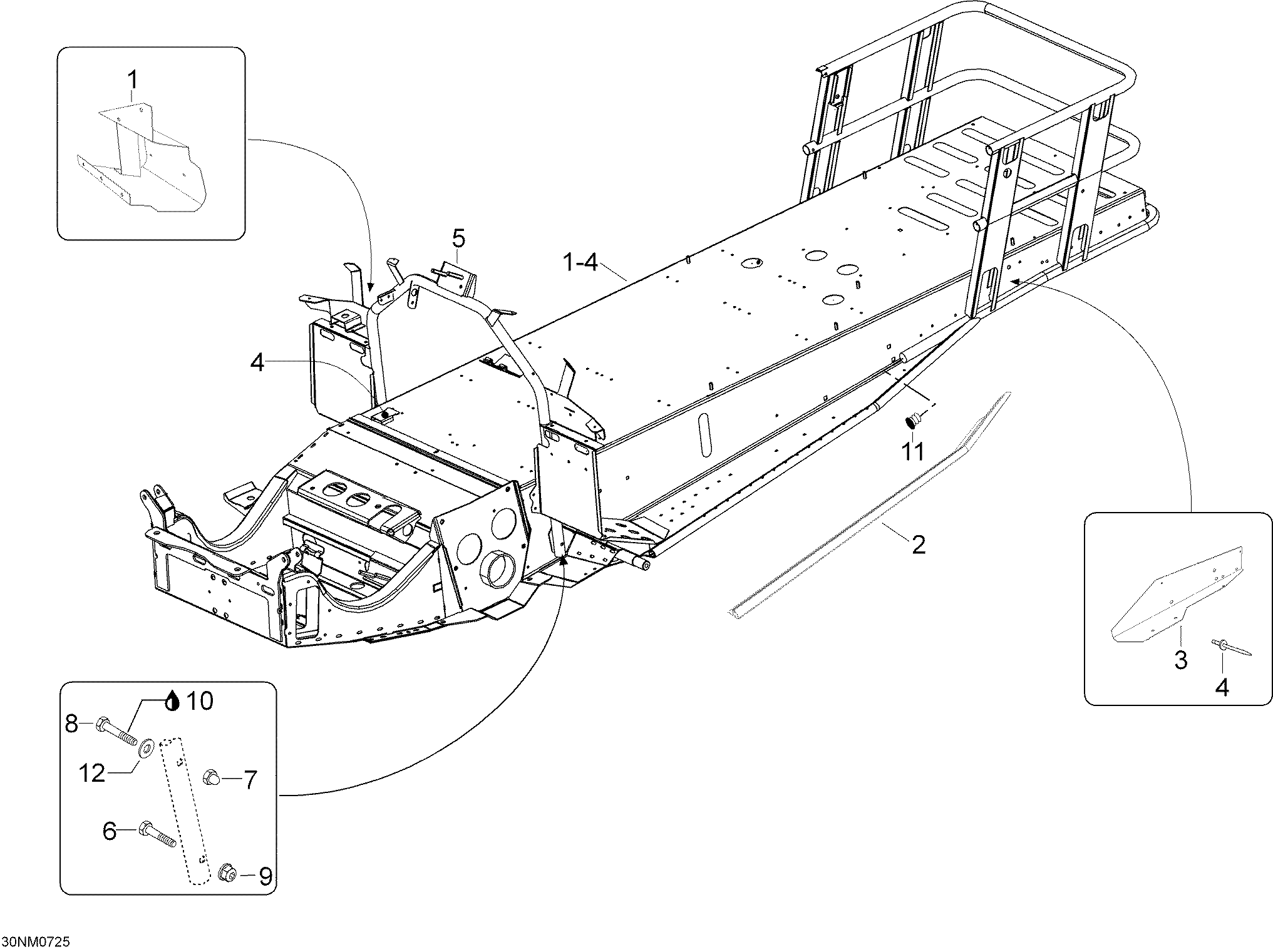

09- Frame для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
-605154553 Frame ass'y. Includes 1 to 4Frame ass'y. Includes 1 to 4
-
1605350839 R.H. FootrestR.H. Footrest
-
1605350840 L.H. FootrestL.H. Footrest
-
2605250773 L.H. SupportL.H. Support
-
2605250774 R.H. SupportR.H. Support
-
3605350845 L.H. ReinforcementL.H. Reinforcement
-
3605350846 R.H. ReinforcementR.H. Reinforcement
-
5605151693 Steering supportSteering support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
733051 Nut M6Nut M6
-
840002 Hex. screw M6 x 40Hex. screw M6 x 40
-
933200 Elastic flanged nut, M6 NylockElastic flanged nut, M6 Nylock
-
10293800060 Loctite 243, 10mlLoctite 243, 10ml
-
1128210 PlugPlug
-
1220003 Washer A6,4Washer A6,4
