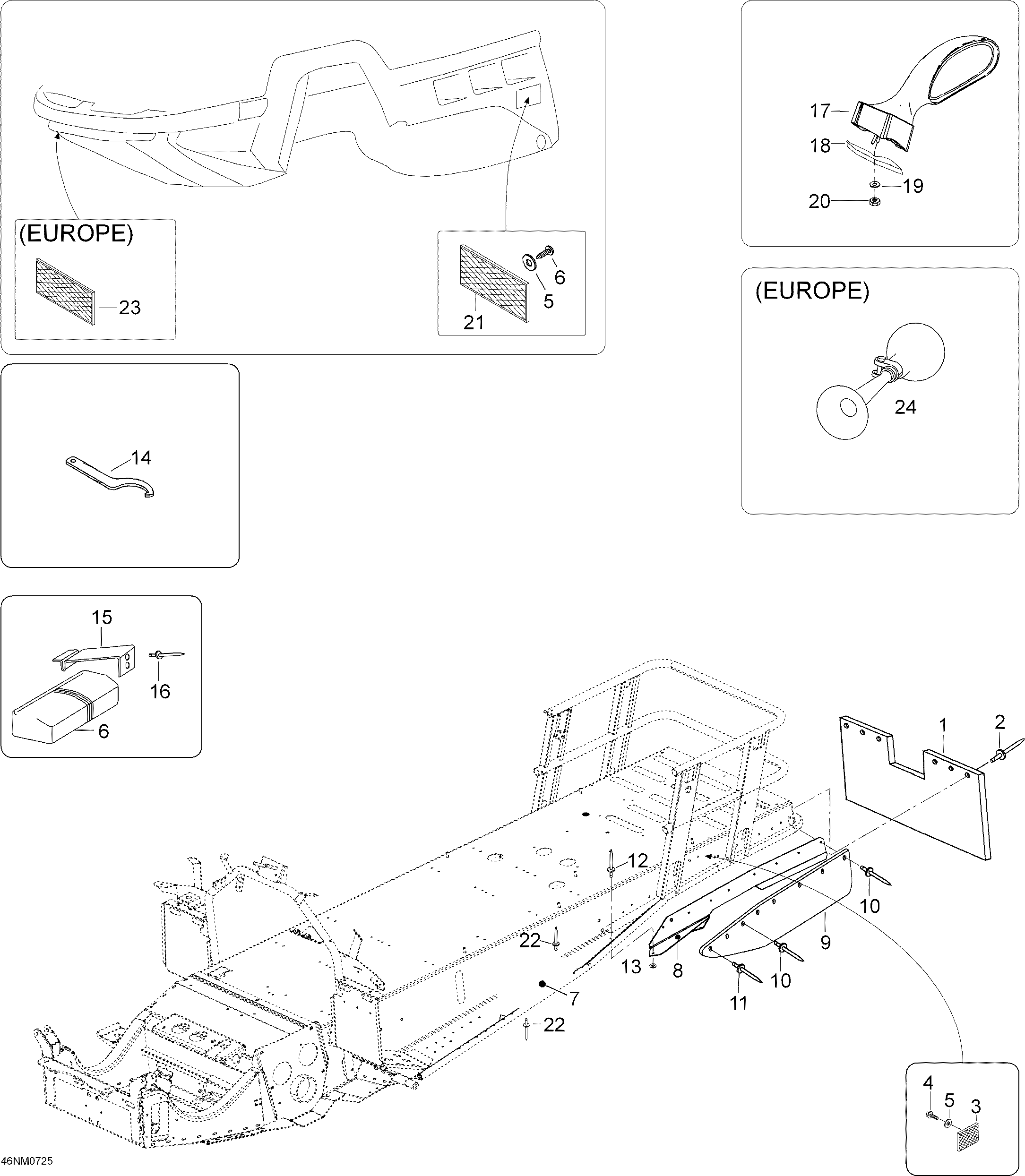

09- Utilities для BRP Lynx YETI TUV 600HO SDI - 2007
-
№АртикулНазвание
-
1535437 Snow guardSnow guard
-
236036 RivetRivet
-
3414510100 Reflector (Red). NAReflector (Red). NA
-
321121 Reflector (Yellow). EuropeReflector (Yellow). Europe
-
440070 Self tapping screw M5 x 10Self tapping screw M5 x 10
-
520018 Washer A5,3Washer A5,3
-
6605350525 Tool ass'yTool ass'y
-
7605354068 Footrest. NAFootrest. NA
-
8605251249 R.H. BracketR.H. Bracket
-
8605251248 L.H. BracketL.H. Bracket
-
95142828 Side snow quardSide snow quard
-
1036097 RivetRivet
-
1136891 RivetRivet
-
1236005 RivetRivet
-
1320008 Washer A5,3Washer A5,3
-
14529035582 Wrench adjusterWrench adjuster
-
155346728 Spring plateSpring plate
-
1636108 RivetRivet
-
17605250583 R.H. MirrorR.H. Mirror
-
17605250582 L.H. MirrorL.H. Mirror
-
18605350577 R.H. AdapterR.H. Adapter
-
18605350576 L.H. AdapterL.H. Adapter
-
1920037 Washer A4,3Washer A4,3
-
2033008 Elastic stop nut M4Elastic stop nut M4
-
21414510200 Reflector (Amber)Reflector (Amber)
-
2236489 RivetRivet
-
2321060 Reflector (White). EuropeReflector (White). Europe
-
2421003 Horn. EuropeHorn. Europe
