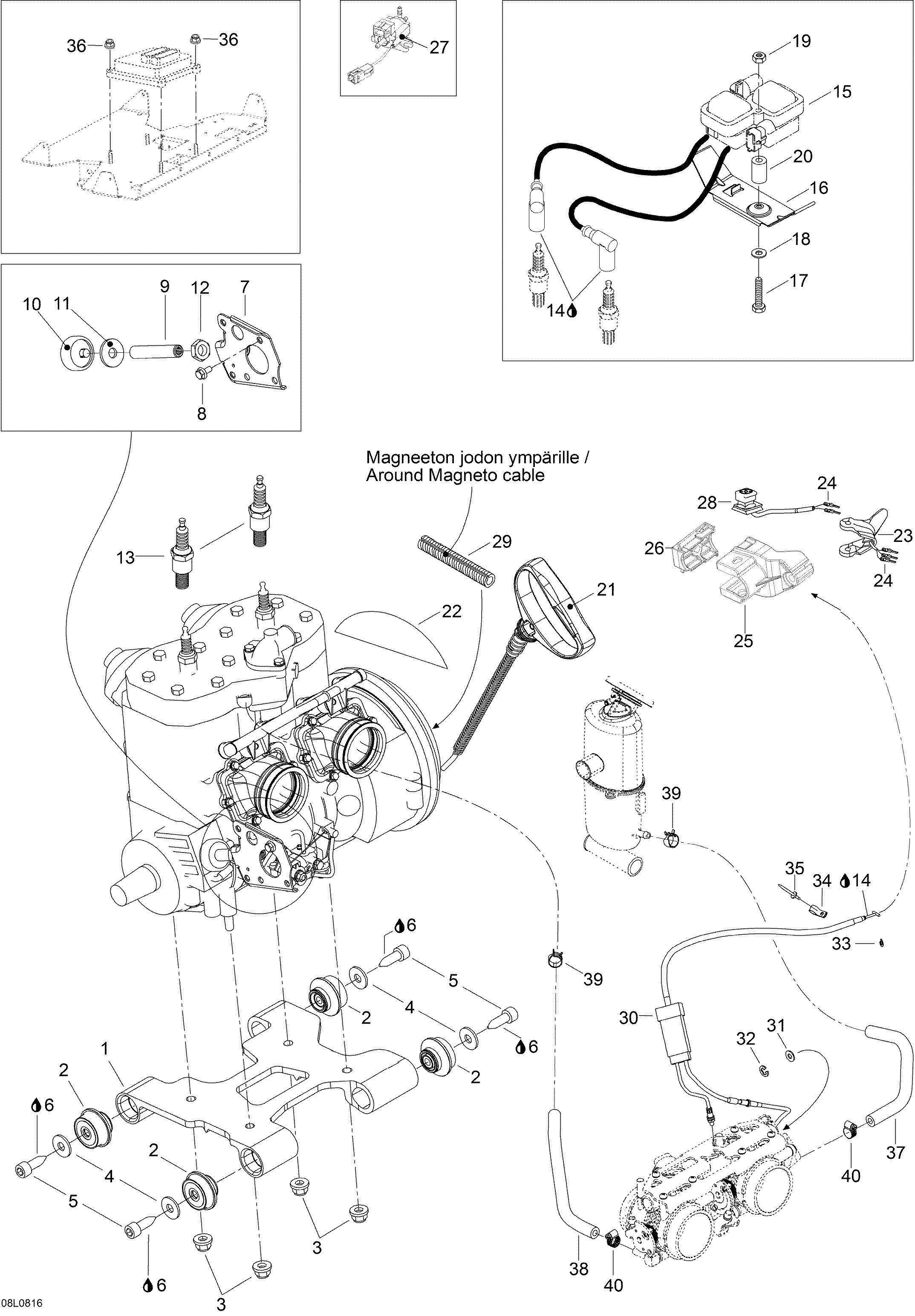

01- Engine And Engine Support для BRP Lynx Xtrim 600 SDI - 2008
![](/wa-data/public/shop/sheme/bombardier/lynx/943abb88-cdd3-410c-9f66-f5cf77cc6e35.png)
-
№АртикулНазвание
-
1512060050 Engine supportEngine support
-
2512059691 Rubber mountRubber mount
-
333074 Elastic flanged nut M10Elastic flanged nut M10
-
4506151251 WasherWasher
-
5250000094 Screw M10 x 30Screw M10 x 30
-
6293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
7512059840 PlatePlate
-
840327 Hex. screw M6 x 12Hex. screw M6 x 12
-
9250500007 Stopper screwStopper screw
-
10512059610 StopperStopper
-
1120023 WasherWasher
-
12232170411 Nut M14Nut M14
-
13512060029 Spark plug BR8 ECSSpark plug BR8 ECS
-
14293550004 GreaseGrease
-
15420891640 Ignition coilIgnition coil
-
16512059865 Support, Ignition coilSupport, Ignition coil
-
1740084 Hex. screw M6 x 45Hex. screw M6 x 45
-
1820003 Washer A6,4Washer A6,4
-
1933010 Elastic stop nut M6Elastic stop nut M6
-
20512059812 SleeveSleeve
-
21572084400 GripGrip
-
22512059893 Reflection sheetReflection sheet
-
23605354964 Throttle handleThrottle handle
-
24605642628 Connector housingConnector housing
-
25512060197 Throttle handle body, lower partThrottle handle body, lower part
-
26512060198 Throttle handle body, upper partThrottle handle body, upper part
-
27515176653 BracketBracket
-
28605355686 Kill switchKill switch
-
2928004 TubingTubing
-
30512060087 Throttle cableThrottle cable
-
31234081100 WasherWasher
-
3231035 CirclipCirclip
-
3331038 CirclipCirclip
-
3427026 Tie rapTie rap
-
3536037 RivetRivet
-
3633201 Elastic flanged nut M6Elastic flanged nut M6
-
37605354600 HoseHose
-
38605354601 HoseHose
-
39513033029 ClampClamp
-
40605627003 ClampClamp
