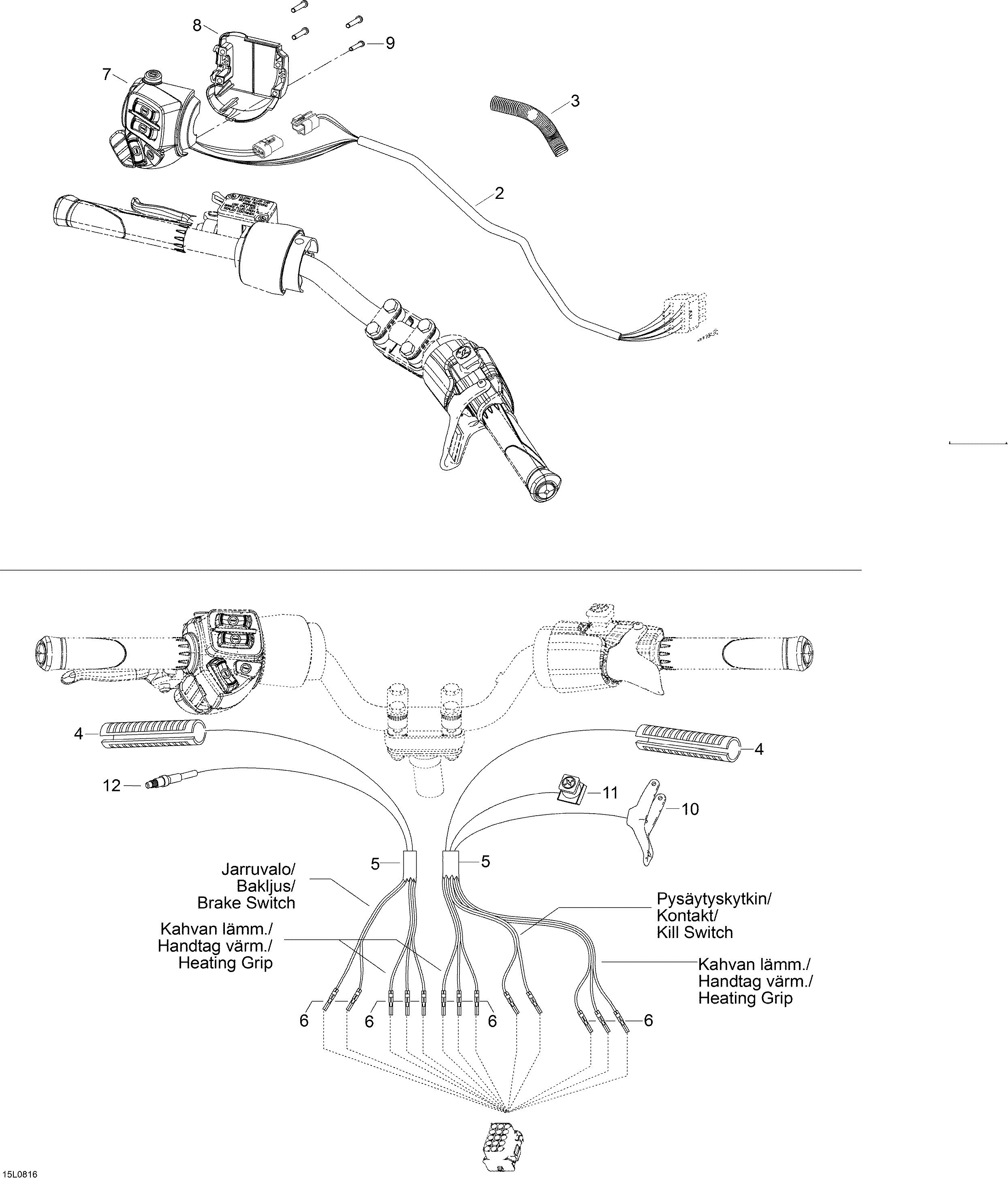

10- Steering Harness для BRP Lynx Xtrim 600 SDI - 2008
-
№АртикулНазвание
-
1605354911 Harness ass'y. Not shown in the pictureHarness ass'y. Not shown in the picture
-
2605353265 Harness ass'y, handle barHarness ass'y, handle bar
-
3605353992 TubingTubing
-
4515175657 Heating elementHeating element
-
539023 TubingTubing
-
6605642628 ConnectorConnector
-
7515176015 Switch housingSwitch housing
-
8515175926 Switch housing plateSwitch housing plate
-
940903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
10605354964 Throttle handleThrottle handle
-
11605355686 Kill switchKill switch
-
12507032366 MicroswitchMicroswitch
