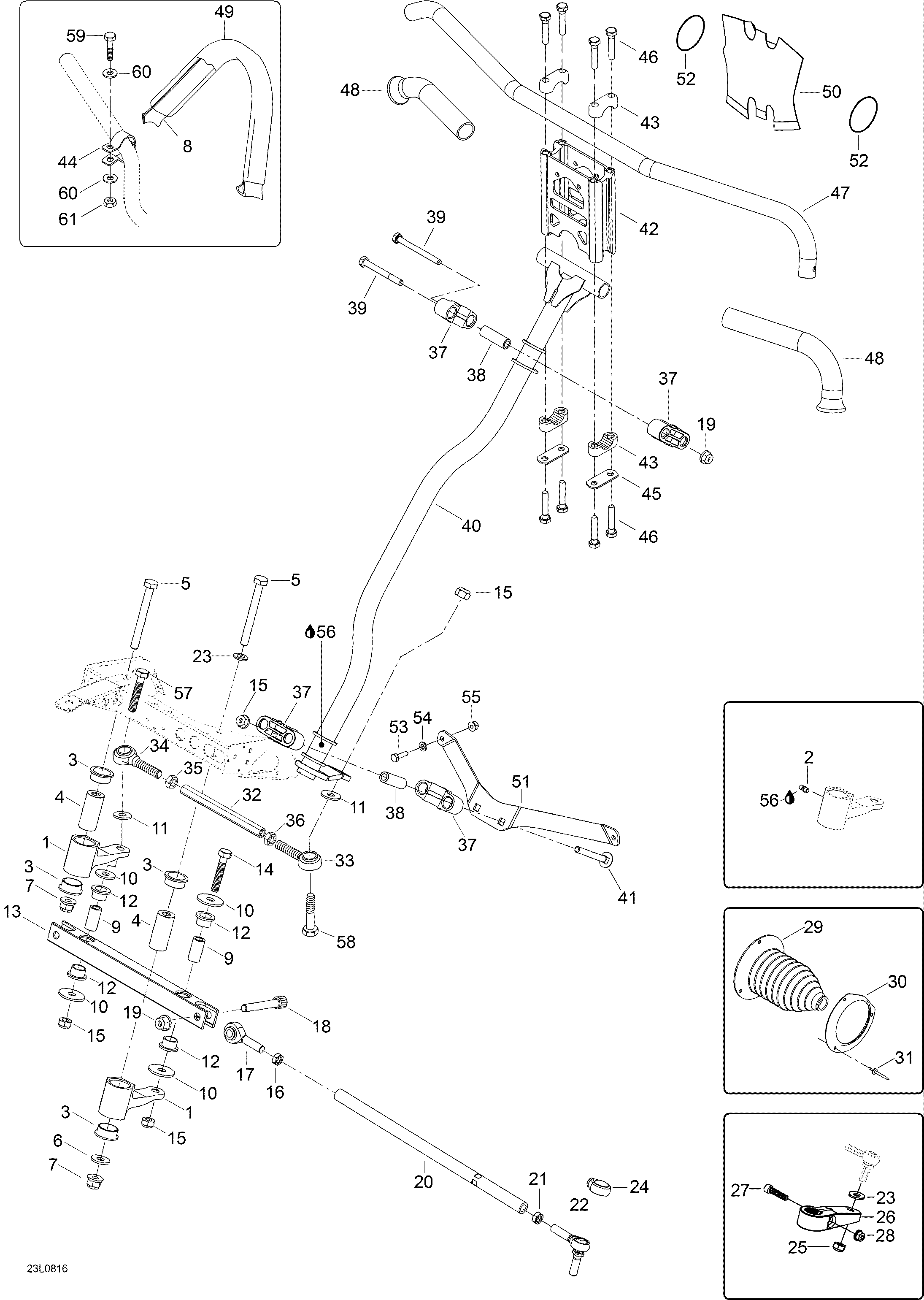

07- Steering System для BRP Lynx Xtrim 600 SDI - 2008
-
№АртикулНазвание
-
1506152124 R.H. swivel armR.H. swivel arm
-
1506152123 L.H. swivel armL.H. swivel arm
-
234011 Grease fittingGrease fitting
-
3415041100 CushionCushion
-
4506151272 BushingBushing
-
540021 Hex. screw M10 x 70Hex. screw M10 x 70
-
620105 Washer A10,5Washer A10,5
-
733012 Elastic stop nut M10Elastic stop nut M10
-
8415095500 Tie-downTie-down
-
9506151273 Pivot barPivot bar
-
10506151251 WasherWasher
-
1131014 WasherWasher
-
12506150200 Bushing swivelBushing swivel
-
13605349868 Bar-swivelBar-swivel
-
1440017 Screw M10 x 50Screw M10 x 50
-
1533055 Elastic flanged nut M8Elastic flanged nut M8
-
16250100016 L.H. jam nut M10L.H. jam nut M10
-
17506151496 L.H. Ball jointL.H. Ball joint
-
1840395 Socket head screw M8 x 35Socket head screw M8 x 35
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20605353870 Tie-rodTie-rod
-
21732610010 R.H. jam nut M10R.H. jam nut M10
-
22506151491 R.H. Joint ballR.H. Joint ball
-
2320105 Washer, hardened 10mmWasher, hardened 10mm
-
24506151650 Protection capProtection cap
-
2533023 Elastic stop nut M10Elastic stop nut M10
-
26506144800 R.H. steering armR.H. steering arm
-
26506144900 L.H. steering armL.H. steering arm
-
2740843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2833201 Elastic flanged nut M8Elastic flanged nut M8
-
29605252101 Tie-rod capTie-rod cap
-
30605351469 Retainer ringRetainer ring
-
3136009 RivetRivet
-
32605353888 Tie-rodTie-rod
-
33311031L L.H. Ball jointL.H. Ball joint
-
34311031R R.H. Ball jointR.H. Ball joint
-
3533004 Nut M10Nut M10
-
363310934L L.H. Nut M10L.H. Nut M10
-
37506150400 Housing halfHousing half
-
38506150500 Housing bushingHousing bushing
-
3940011 Screw M8 x 60Screw M8 x 60
-
40605255492 Main tubeMain tube
-
41207787044 Screw M8 x 70Screw M8 x 70
-
42506152109 ExtensionExtension
-
43506151622 Steering supportSteering support
-
44506151792 Support plateSupport plate
-
45506151196 ReinforcementReinforcement
-
46250000074 Hex. screw M8 x 40Hex. screw M8 x 40
-
47506152191 Handle barHandle bar
-
48605355701 R.H. GripR.H. Grip
-
49415090200 GripGrip
-
50605352881 CapCap
-
51506151854 BracketBracket
-
5212402 O-ringO-ring
-
5340030 Screw M6 x 20Screw M6 x 20
-
5420009 Washer A6,4Washer A6,4
-
5533200 Elastic flanged nut M6Elastic flanged nut M6
-
56293550033 Synthetic grease, 400gSynthetic grease, 400g
-
5740020 Screw M10 x 65Screw M10 x 65
-
5840049 Screw M10 x 35Screw M10 x 35
-
5940031 Screw M6 x 25Screw M6 x 25
-
6020003 Washer A6,4Washer A6,4
-
6133010 Elastic stop nut M6Elastic stop nut M6
