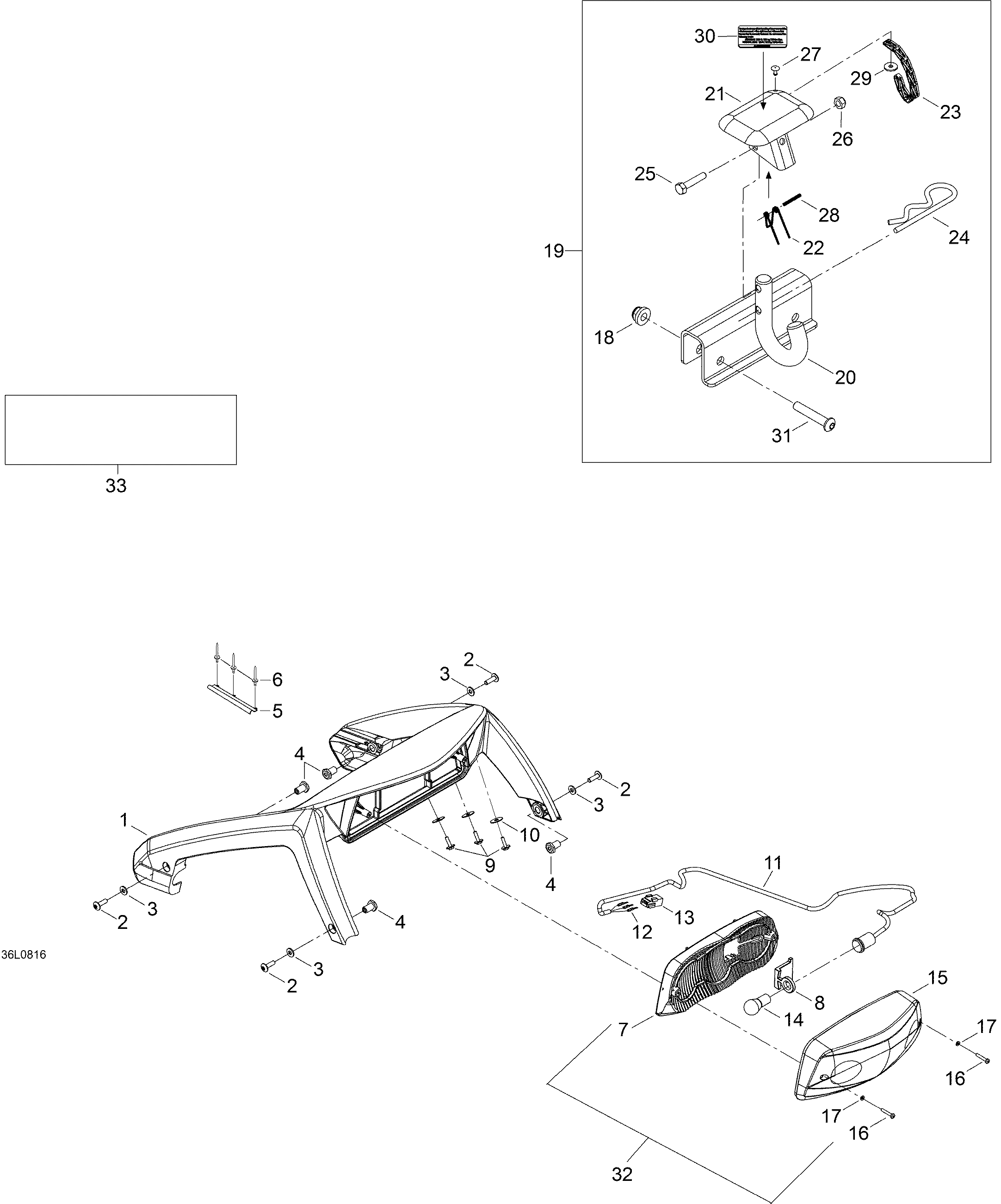

09- Luggage Rack для BRP Lynx Xtrim 600 SDI - 2008
-
№АртикулНазвание
-
1511000425 Luggage rackLuggage rack
-
2250000168 ScrewScrew
-
3250200039 WasherWasher
-
4511000398 InsertInsert
-
5605453559 ProtectorProtector
-
636108 RivetRivet
-
7510004442 ReflectorReflector
-
8511000431 Rubber damperRubber damper
-
940847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
-
1020117 WasherWasher
-
11515175852 FittingFitting
-
12605642628 Male connectorMale connector
-
1342271 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
14410504000 Tail lamp bulpTail lamp bulp
-
15861509300 LensLens
-
16209632580 Screw M 3.9 x 25Screw M 3.9 x 25
-
17414516400 WasherWasher
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
20511000354 Hitch. Includes 21-30Hitch. Includes 21-30
-
21517152700 Hitch protectorHitch protector
-
22517152800 SpringSpring
-
24114045200 Hair pinHair pin
-
25207063044 Screw M6 x 30Screw M6 x 30
-
26232561414 Elastic stop nut M6Elastic stop nut M6
-
27390409400 RivetRivet
-
28732804000 Spring pinSpring pin
-
30516002685 Security labelSecurity label
-
3140008 Screw M8 x 45Screw M8 x 45
-
32861509300 Rearlight compl.. includes 7,8.,14-17Rearlight compl.. includes 7,8.,14-17
-
33605255828 Tunnel cover, centerTunnel cover, center
