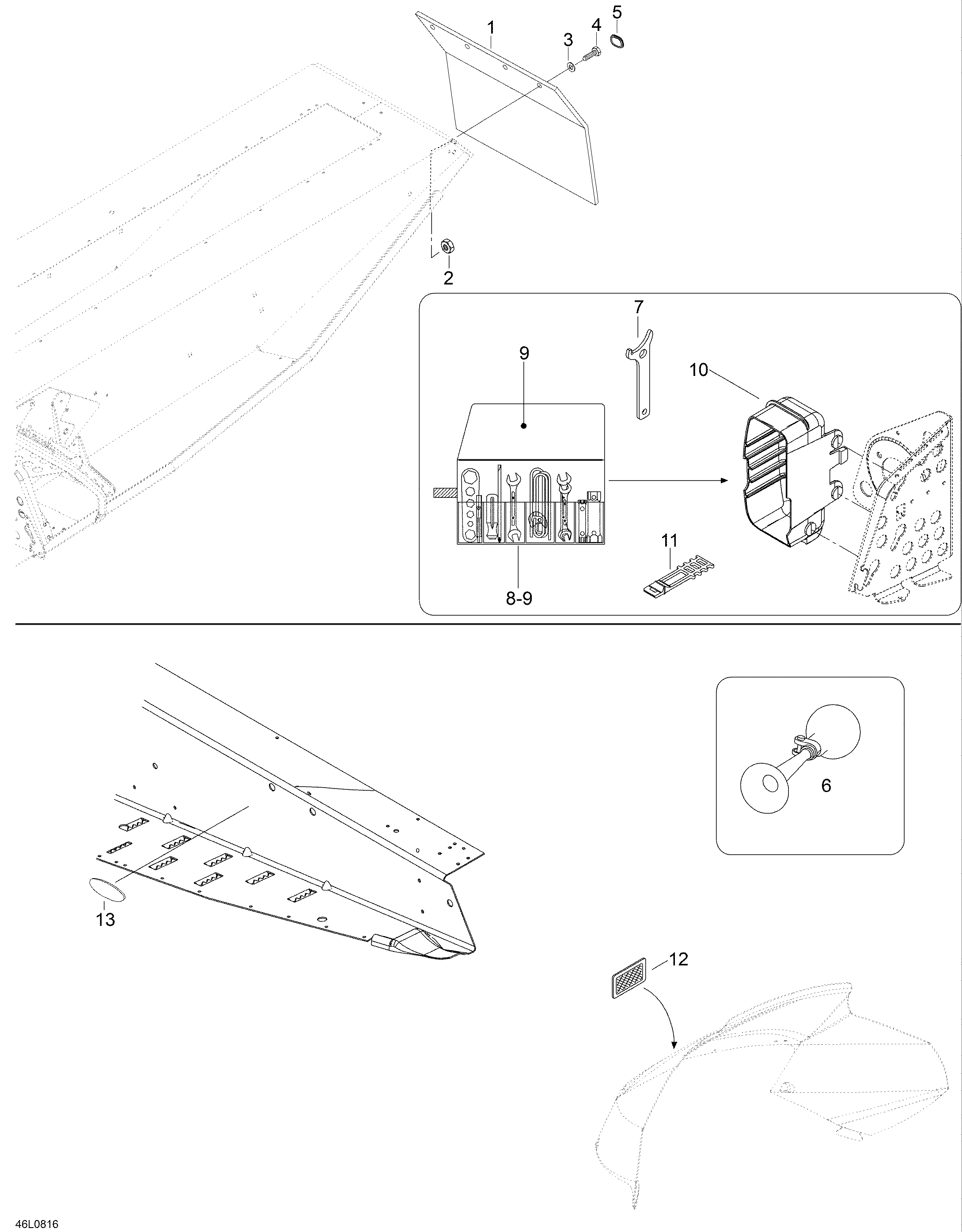

09- Utilities для BRP Lynx Xtrim 600 SDI - 2008
-
№АртикулНазвание
-
15246131 Snow guardSnow guard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6.4Washer A6.4
-
440078 Hex. screw M6 x 22Hex. screw M6 x 22
-
5415073300 CapCap
-
621003 HornHorn
-
7529032900 Wrench adjusterWrench adjuster
-
8529035596 Tool set. Includes 8 to 9Tool set. Includes 8 to 9
-
9520000047 Tool bagTool bag
-
10520000322 TrunkTrunk
-
11570069700 LatchLatch
-
1221118 Reflector, BrightReflector, Bright
-
13605621001 Reflector, yellowReflector, yellow
