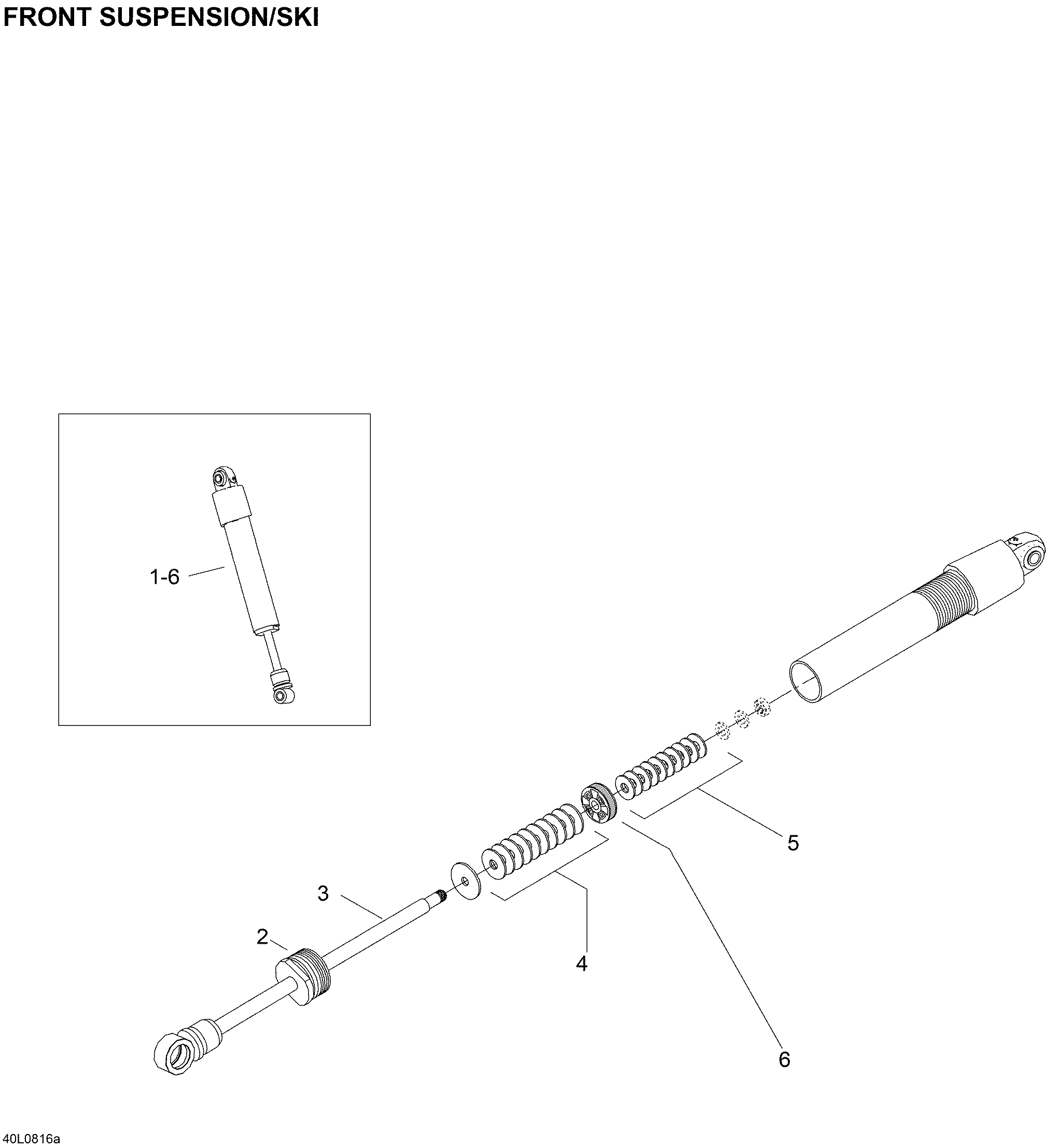

07- Take Apart Shock, Ski для BRP Lynx Xtrim 600 SDI - 2008
-
№АртикулНазвание
-
1605354527 Shock, ski T/A. Includes 1 to 14Shock, ski T/A. Includes 1 to 14
-
2619300010 Seal carrier assySeal carrier assy
-
3619300012 Rod assyRod assy
-
4414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
4414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
4415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
4414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
4230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
4414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
4414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
4230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
4414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
4414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
4230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
4230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
4414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
4230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
4230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
4230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
4230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
4230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
4414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
4415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
4230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
4230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
4414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
4414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
4415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
5414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
5414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
5414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
5415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
5414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
5230121 Leaf valve 17x0.203Leaf valve 17x0.203
-
5230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
5414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
5414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
5230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
5414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
5414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
5230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
5230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
5414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
5230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
5230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
5230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
5230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
5230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
5414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
5415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
5230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
5230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
5414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
5414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
5415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
6230027 Piston, 1 slitsPiston, 1 slits
-
6414888305 Manta, 2 slitsManta, 2 slits
-
6230028 Piston, 3 slitsPiston, 3 slits
