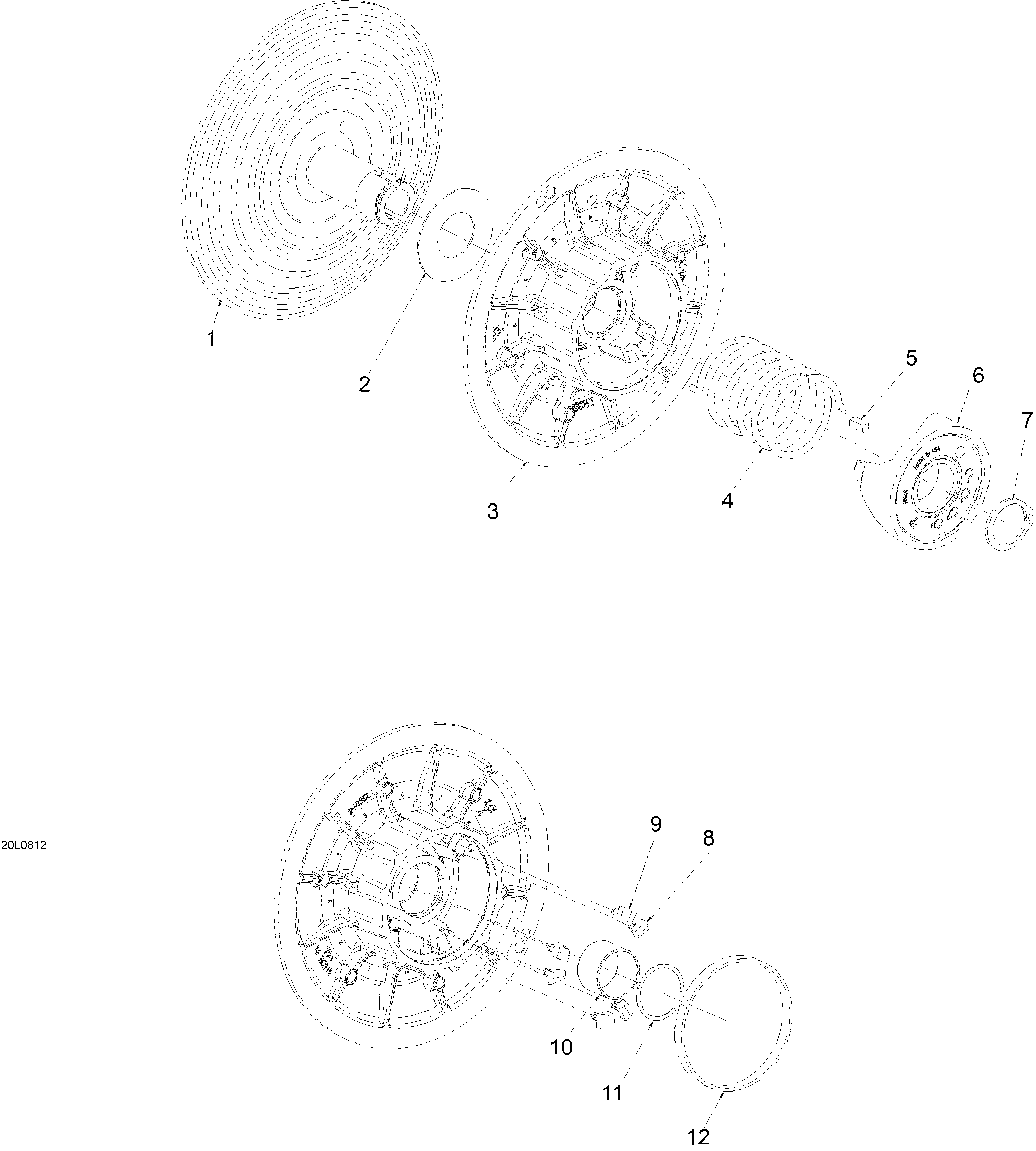

05- Driven Pulley для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1619100024 Fixed flangeFixed flange
-
2504099600 WasherWasher
-
3619100026 Sliding flangeSliding flange
-
4619100038 ReleaseRelease
-
5619100028 KeyKey
-
6619100035 Cam 40/30 degr.Cam 40/30 degr.
-
7619100027 CirclipCirclip
-
8619100040 Foward sider shoeFoward sider shoe
-
9619100039 Reverse sider shoeReverse sider shoe
-
10619100032 BushingBushing
-
11619100033 CirclipCirclip
-
12619100034 BushingBushing
