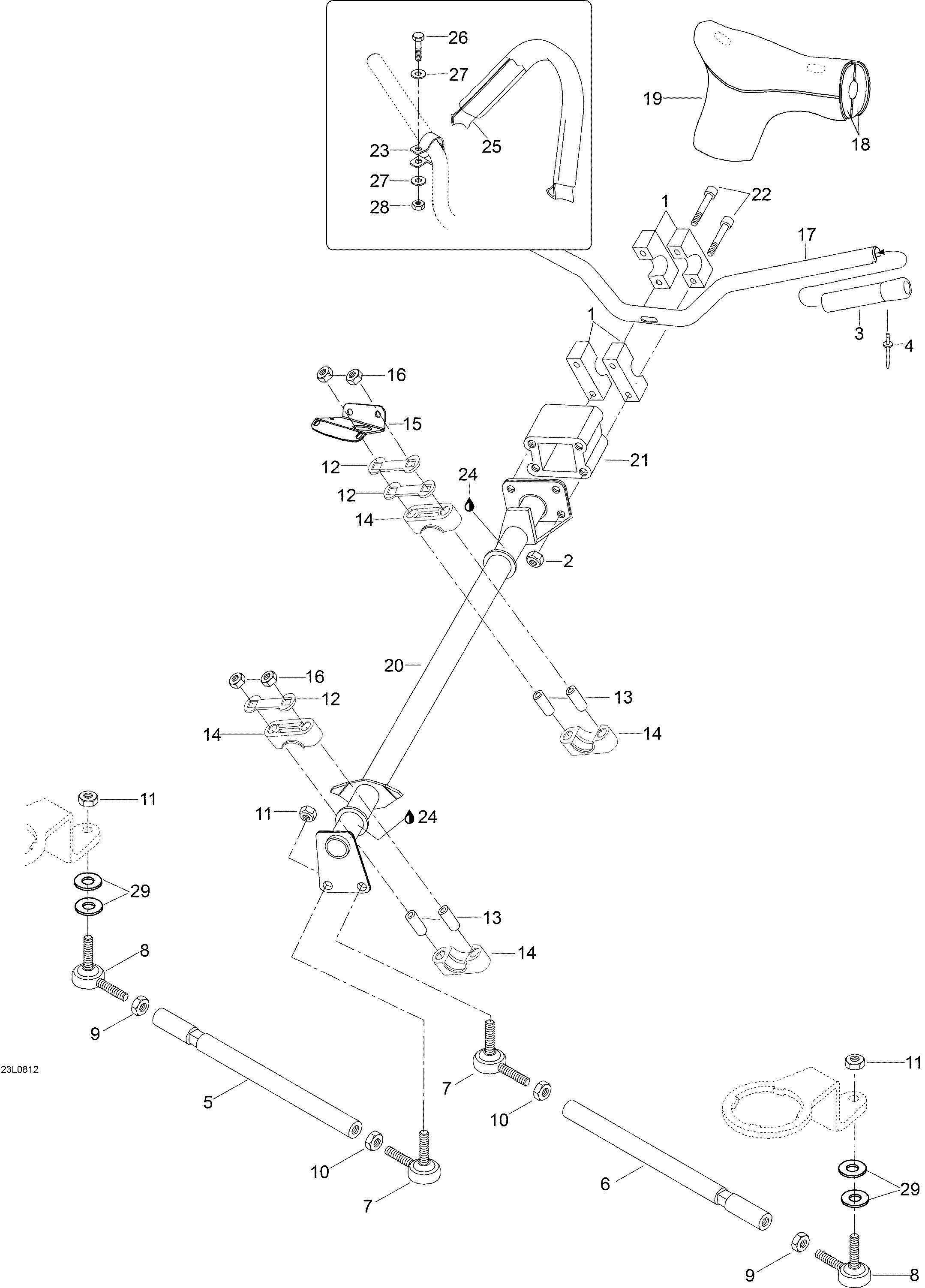

07- Steering System для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1506151622 Steering clampSteering clamp
-
2605351973 Console holderConsole holder
-
35340464 GripGrip
-
436005 RivetRivet
-
5605454772 R.H Tie rodR.H Tie rod
-
6605454293 L.H Tie rodL.H Tie rod
-
7506151495 L.H. Ball jointL.H. Ball joint
-
8506151492 R.H. Ball jointR.H. Ball joint
-
933019 Nut R.H.Nut R.H.
-
1033017 Nut L.H.Nut L.H.
-
1133023 Elastic stop nut M10Elastic stop nut M10
-
12506150600 Stopper plateStopper plate
-
13506150500 Housing bushingHousing bushing
-
14506150400 Half bushingHalf bushing
-
15250000074 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17605251368 Handle barHandle bar
-
18605354907 Foam,Foam,
-
19605254571 CoverCover
-
20605253421 Main tubeMain tube
-
21860603900 ExtensionExtension
-
22250000074 Socket head screw M8 x 40Socket head screw M8 x 40
-
23506151792 Support plateSupport plate
-
24519700417 Synthetic greaseSynthetic grease
-
25415095500 Tie-downTie-down
-
2640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
2720003 WasherWasher
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
2931014 Shim ringShim ring
