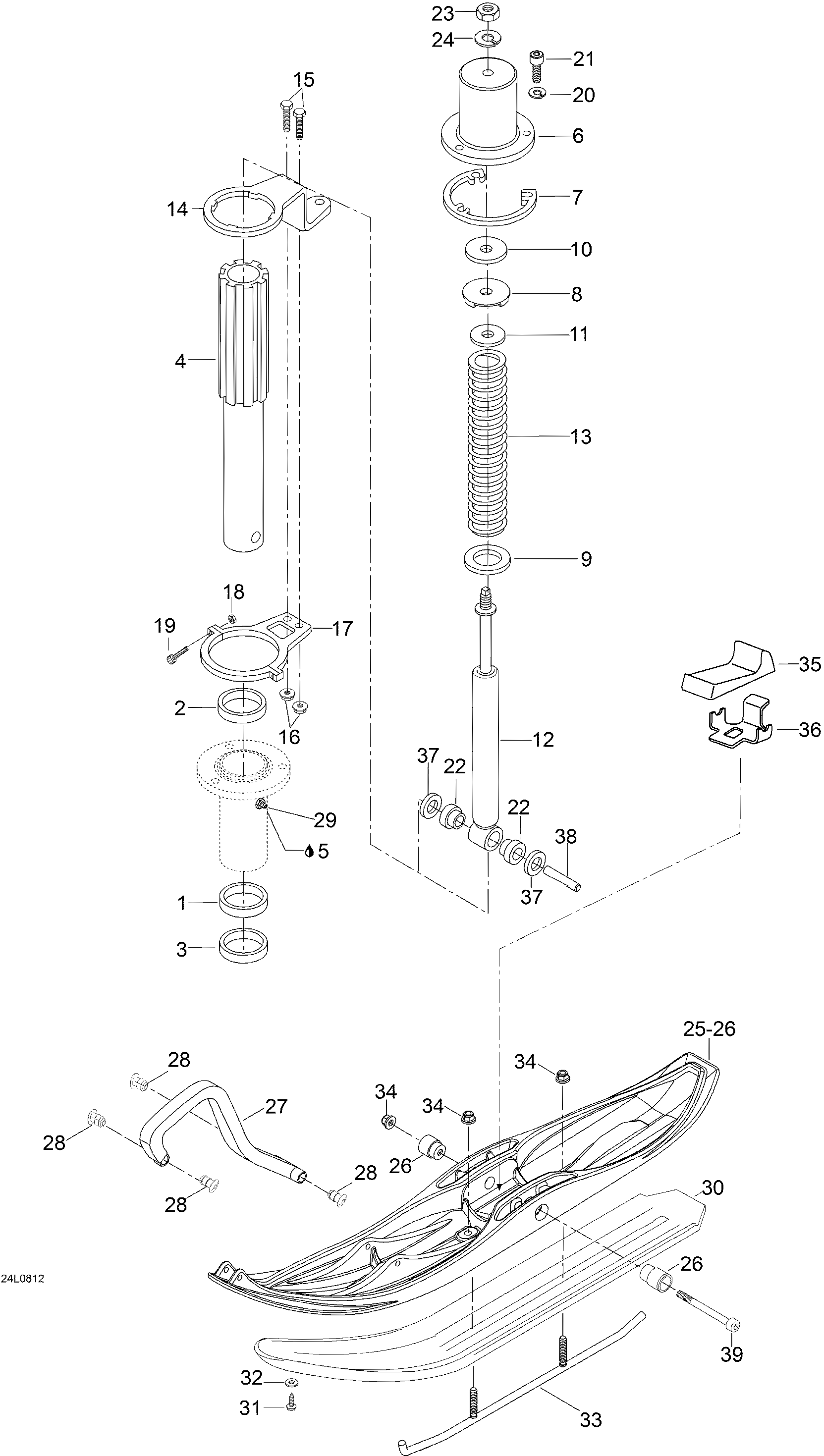

07- Front Suspension And Ski для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1414803200 Lower cushionLower cushion
-
2414803100 Upper cushionUpper cushion
-
3316373 Oil sealOil seal
-
45245362 Ski-legSki-leg
-
5519700417 GreaseGrease
-
6605249284 Welded coverWelded cover
-
7503145600 Spacer plateSpacer plate
-
8605354835 StopperStopper
-
9549493 BearingplateBearingplate
-
105440399 PlatePlate
-
11549492 Holder plateHolder plate
-
1223134 ShockShock
-
135241330 SpringSpring
-
14605353422 Steering Arm RHSteering Arm RH
-
14605353423 Steering Arm LHSteering Arm LH
-
1540031 Screw M6 x 25Screw M6 x 25
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
175344180 Support arm ass'ySupport arm ass'y
-
1833008 Nut elastic M4Nut elastic M4
-
1940146 Socket head screw M4 x 20Socket head screw M4 x 20
-
2020014 Lock washer A8Lock washer A8
-
2140305 Socket head screw M8 x 20Socket head screw M8 x 20
-
22572034500 SleeveSleeve
-
2333012 Elastic stop nut M10Elastic stop nut M10
-
2420012 Washer A10,5Washer A10,5
-
25605153775 Plastic ski. Includes 25 to 26Plastic ski. Includes 25 to 26
-
26605348392 SleeveSleeve
-
27505070963 Plastic handlePlastic handle
-
28505071812 RetainerRetainer
-
2934019 Grease nippleGrease nipple
-
30605153964 Ski LinerSki Liner
-
3140901 Screw-plastofast 5 x 20Screw-plastofast 5 x 20
-
3220037 Washer A4,3Washer A4,3
-
33605352643 Runner carbide assyRunner carbide assy
-
3433074 Elastic flanged nut M10Elastic flanged nut M10
-
35605348439 StopperStopper
-
36605348437 Support plateSupport plate
-
37605448594 SleeveSleeve
-
38605348921 SleeveSleeve
-
3940225 Socket head screw M10 x 140Socket head screw M10 x 140
