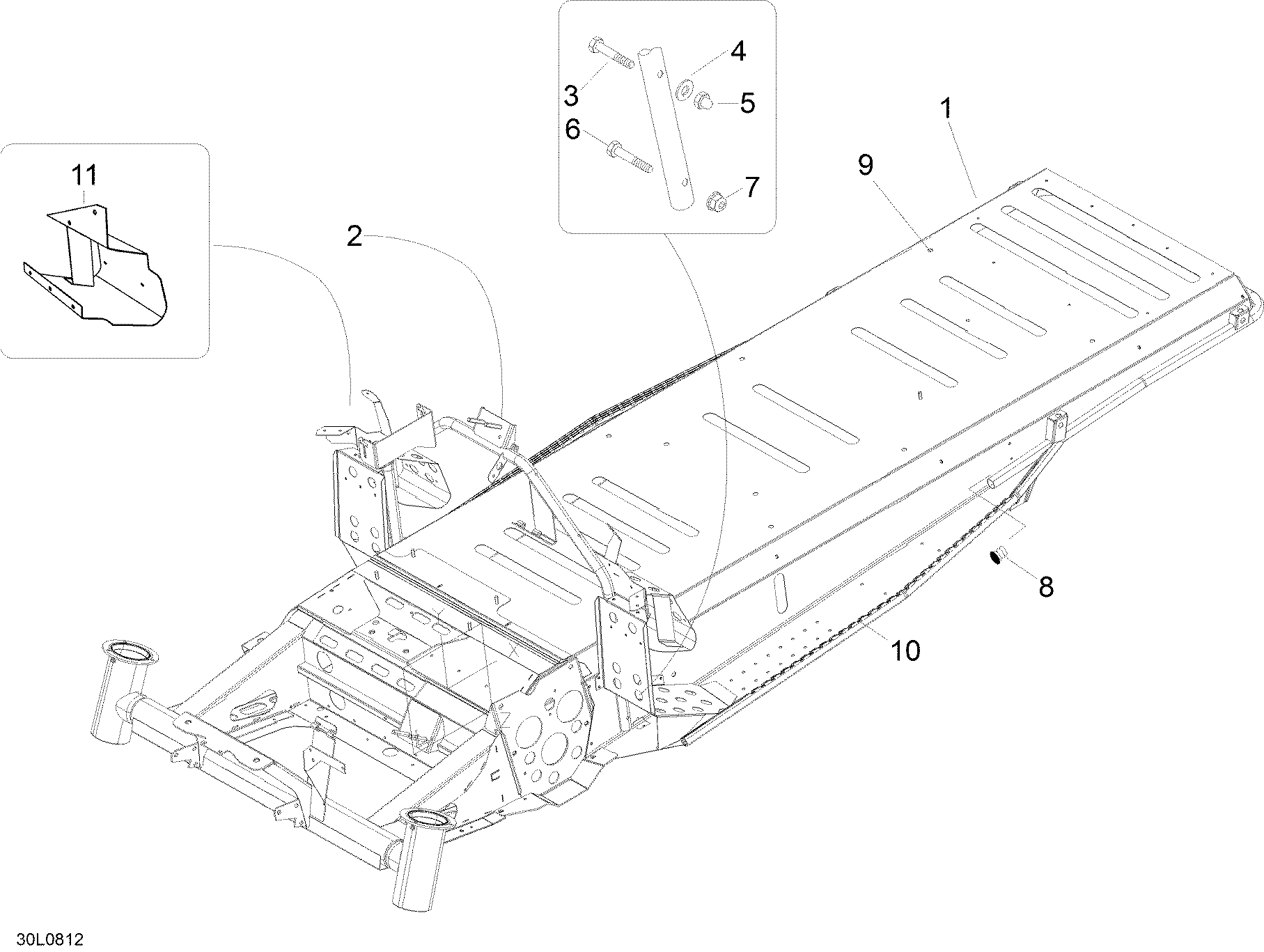

09- Frame для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1605152547 Frame ass'y. Includes 1 to 4Frame ass'y. Includes 1 to 4
-
1605155168 Frame ass'y, White. Includes 1 to 4Frame ass'y, White. Includes 1 to 4
-
2605153465 Handle steering supp.Handle steering supp.
-
340003 Screw M6 x 35Screw M6 x 35
-
420003 WasherWasher
-
533051 Nut M6Nut M6
-
640002 Screw M6 x 40Screw M6 x 40
-
733200 Nut M6Nut M6
-
828136 Filler plug 16/19Filler plug 16/19
-
10605253506 Reinforcement R.H.Reinforcement R.H.
-
10605253507 Reinforcement L.H.Reinforcement L.H.
-
11605253504 Toe rest R.HToe rest R.H
-
11605253505 Toe rest L.HToe rest L.H
