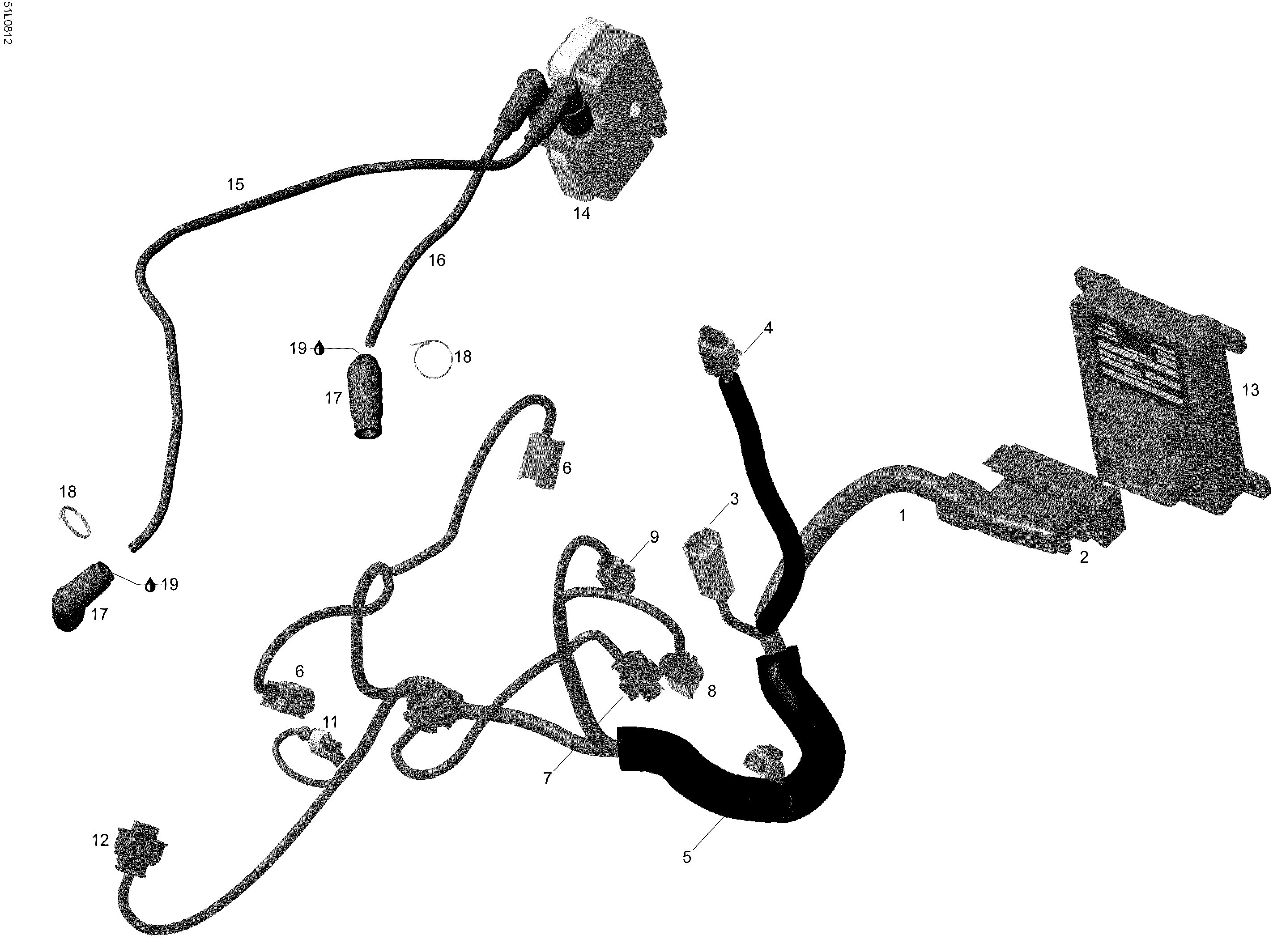

10- Engine harness and Electronic Module для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1420665243 Wiring harness. Includes 1 - 12Wiring harness. Includes 1 - 12
-
2420664450 Connector housingConnector housing
-
13420665279 Electronic moduleElectronic module
-
14420266070 Double ignition coilDouble ignition coil
-
15420665330 Ignition Cable 630 mmIgnition Cable 630 mm
-
16420664305 Ignition Cable, 245 mmIgnition Cable, 245 mm
-
17420265240 Suppressed spark plug connectorSuppressed spark plug connector
-
18420866710 Tie rapTie rap
-
19293550004 Dielectric-grease, 150gDielectric-grease, 150g
