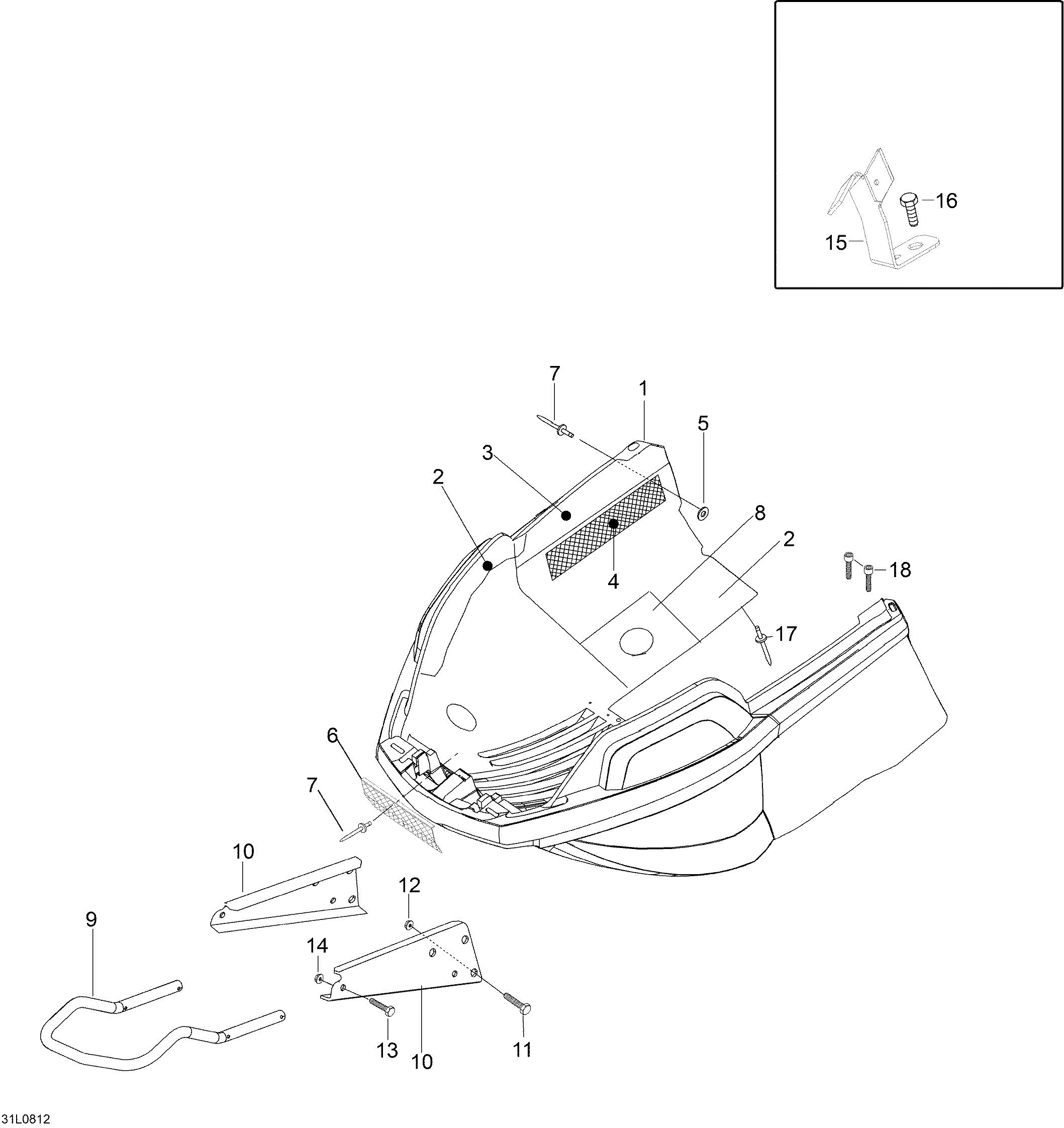

09- Bottom Pan для BRP Lynx YETI Pro V-800 - 2008
-
№АртикулНазвание
-
1605153487 Bottom panBottom pan
-
2619690001 Heat protectorHeat protector
-
3605354966 Heat protectorHeat protector
-
4605354968 Side Grill R.HSide Grill R.H
-
4605354969 Side Grill L.HSide Grill L.H
-
520008 Washer A5,3Washer A5,3
-
6605255513 Grill centerGrill center
-
736009 RivetRivet
-
8605354031 Heat protectorHeat protector
-
9605255112 BumperBumper
-
10605355113 Bumper Fastening Plate L.HBumper Fastening Plate L.H
-
10605355114 Bumper Fastening Plate R.HBumper Fastening Plate R.H
-
114002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1233200 Elastic flanged nut M6Elastic flanged nut M6
-
1340036 Hex. screw M8 x 20Hex. screw M8 x 20
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15605354709 L.H. BracketL.H. Bracket
-
15605354710 R.H. BracketR.H. Bracket
-
1640401 Hex. screw M6 x 10Hex. screw M6 x 10
-
1736037 RivetRivet
-
1840332 Allen Screw M6 x 16Allen Screw M6 x 16
