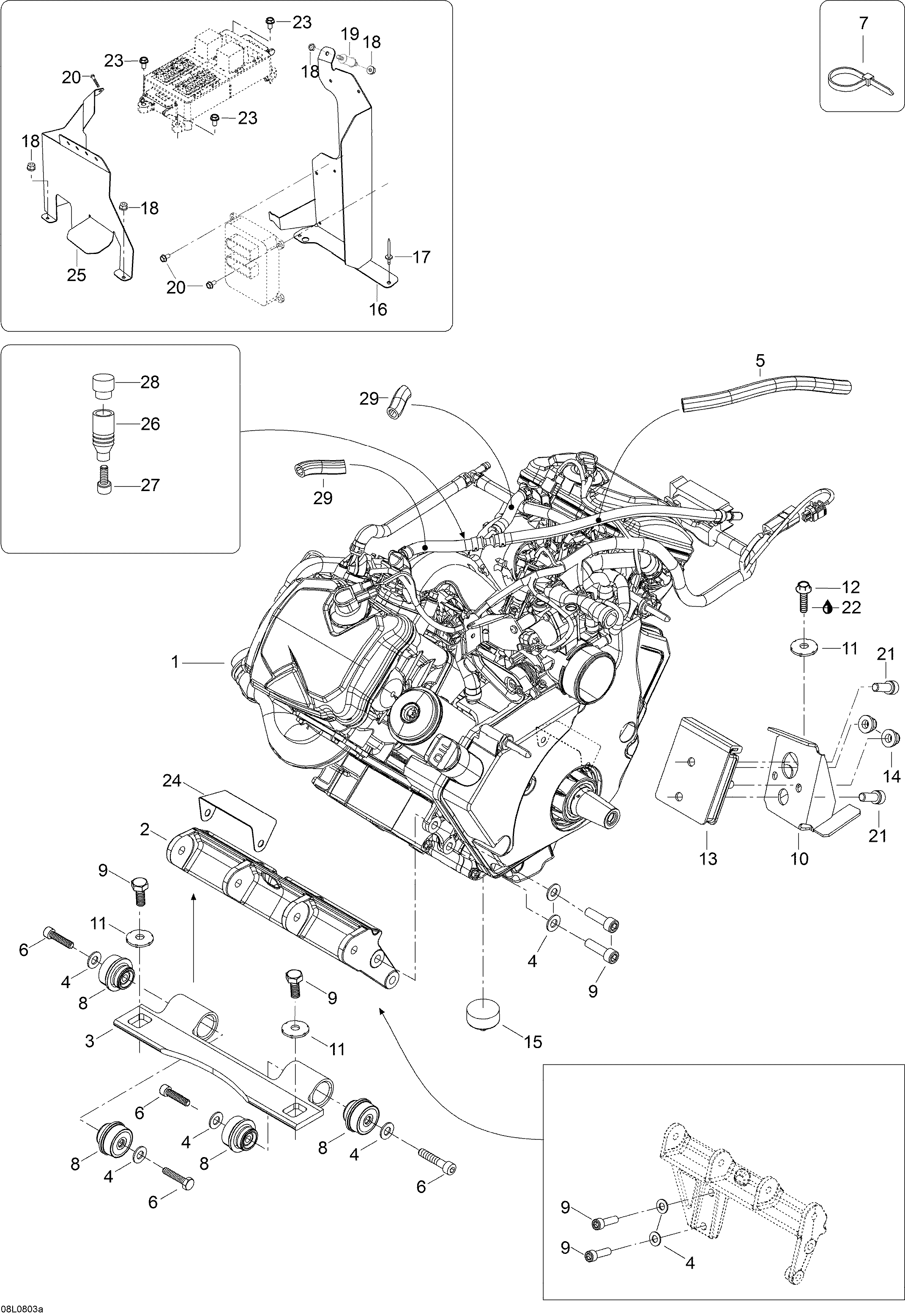

01- Engine And Engine Support для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
1361304190 EngineEngine
-
2605250905 Engine supportEngine support
-
3512059425 Engine support frontEngine support front
-
420105 Washer A10,5Washer A10,5
-
527127 TubingTubing
-
6205003544 Screw M10 x 35Screw M10 x 35
-
727026 Tie-rapTie-rap
-
8512059691 Rubber mountRubber mount
-
940041 Screw M10 x 30Screw M10 x 30
-
10605350835 Engine support, rearEngine support, rear
-
11512056700 Lock washerLock washer
-
1240335 Screw M10 x 30Screw M10 x 30
-
13512059958 Rubber mountRubber mount
-
1433074 Elastic flanged nut M10Elastic flanged nut M10
-
15512059710 Rubber mountRubber mount
-
16605250844 Support plateSupport plate
-
1736108 RivetRivet
-
1833200 Elastic flanged nut M6Elastic flanged nut M6
-
1912419 Rubber mountRubber mount
-
2040327 Screw M6 x 16Screw M6 x 16
-
2140053 Socket head screw M10 x 25Socket head screw M10 x 25
-
22293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
23210251680 Screw M5 x 16Screw M5 x 16
-
24514053620 Heat protectorHeat protector
-
25605351330 Heat protectorHeat protector
-
26605350745 BracketBracket
-
2740053 Allen screw M10 x 25Allen screw M10 x 25
-
28570044700 Rubber damperRubber damper
-
2927127 TubingTubing
