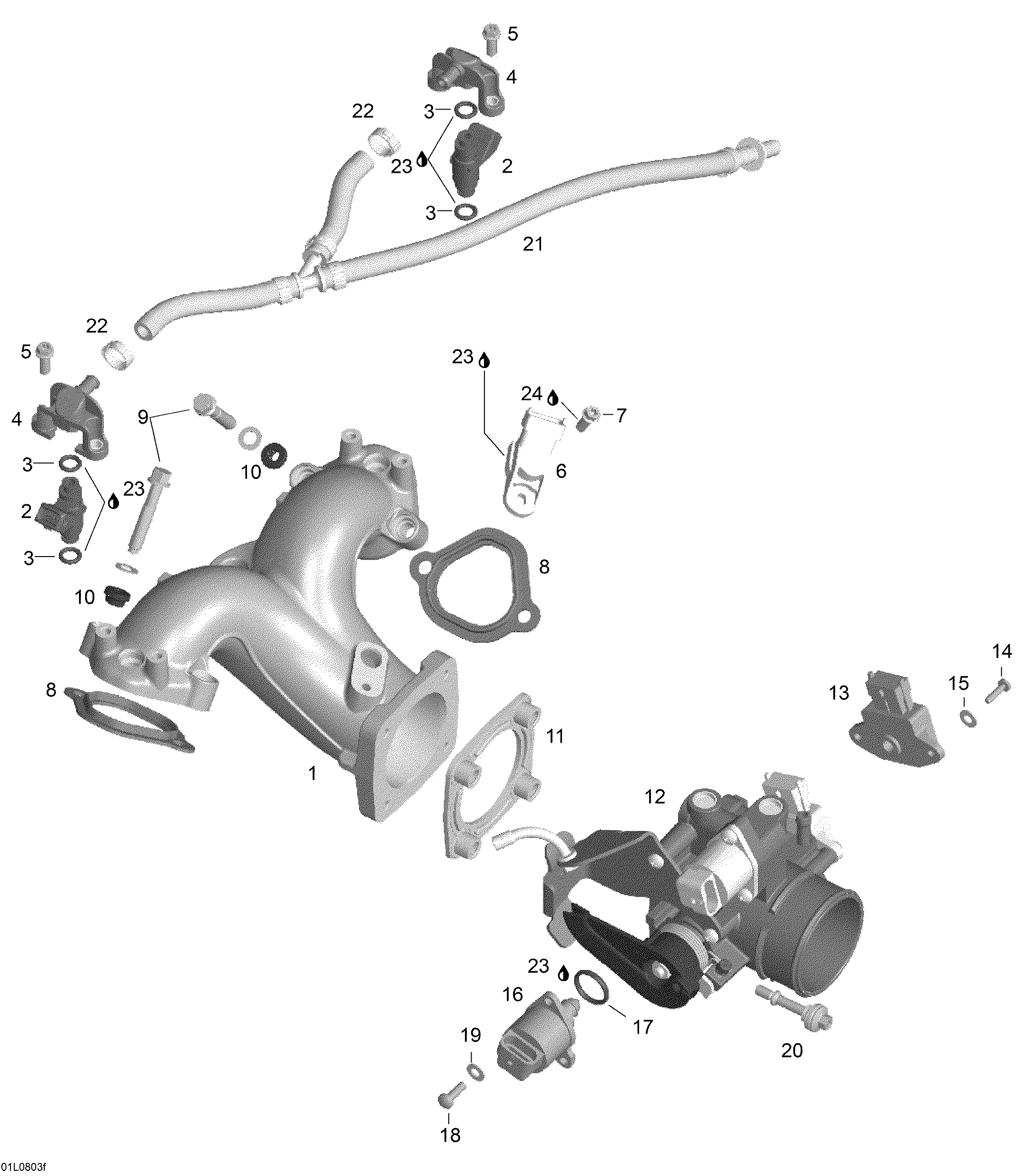

01- Inletmanifold для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
1420867942 Air inlet manifoldAir inlet manifold
-
2420874404 Injection valve. Includes 2 to 3Injection valve. Includes 2 to 3
-
3420631220 O-ringO-ring
-
4420874410 Fuel railFuel rail
-
5420440162 Screw M6 x 16Screw M6 x 16
-
6420874650 Temperature sensorTemperature sensor
-
7420440162 Screw M6 x 16Screw M6 x 16
-
8420950692 GasketGasket
-
10420660190 Rubber sleeveRubber sleeve
-
11420950792 Rubber gasketRubber gasket
-
12420888902 Throttle body socket ass'y. Includes 13 to 20Throttle body socket ass'y. Includes 13 to 20
-
16420963057 Idle bypass valveIdle bypass valve
-
17420631780 O-ringO-ring
-
18420440911 Screw M5 x 16Screw M5 x 16
-
19420845710 Snap ringSnap ring
-
20420440560 Screw M6 x 30Screw M6 x 30
-
21420874562 Fuel hoseFuel hose
-
22420851458 ClampClamp
-
23293550030 Grease, super lubeGrease, super lube
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
