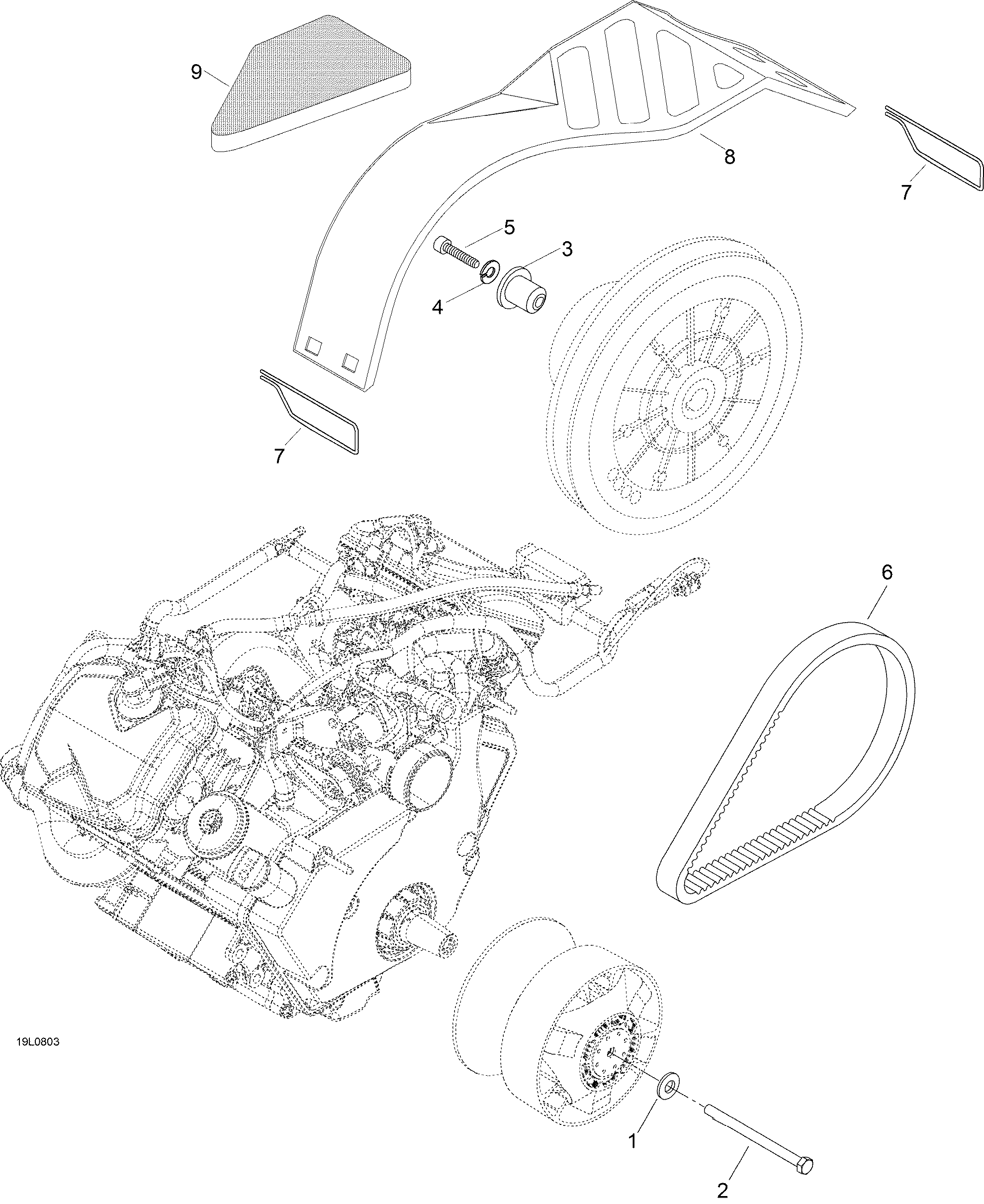

05- Pulley system для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
120110 Lock washer M14Lock washer M14
-
2417300285 ScrewScrew
-
35443201 SleeveSleeve
-
420014 Lock washer A8Lock washer A8
-
540286 Socket head screw M8 x 45Socket head screw M8 x 45
-
6605348425 Drive beltDrive belt
-
75442726 PinPin
-
8605149860 Belt quardBelt quard
-
9605250741 FoamFoam
