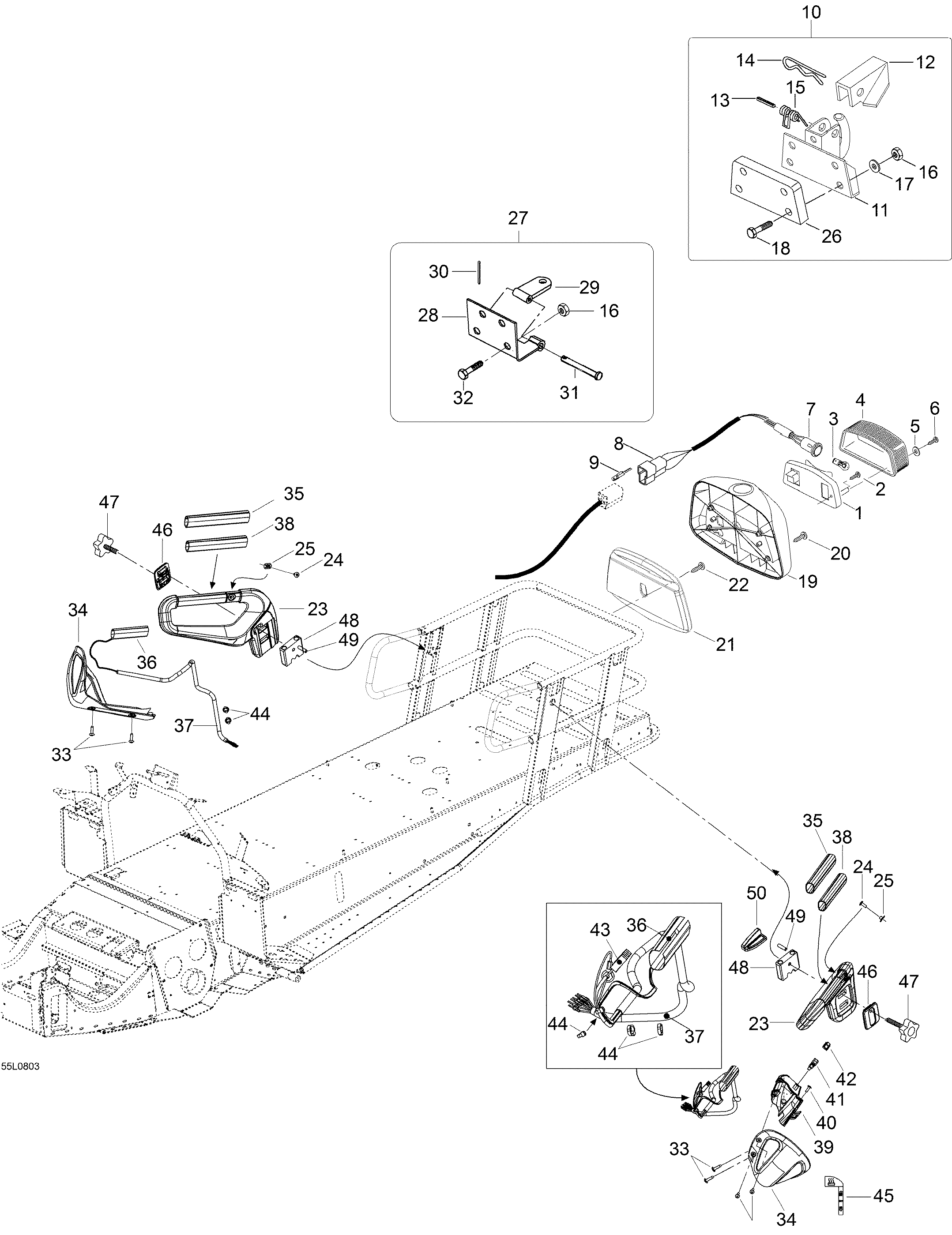

09- Rack для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
240207 Screw 4.8 x 45Screw 4.8 x 45
-
3410504100 Tail Light BulbTail Light Bulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
7515175852 AdapterAdapter
-
9605642629 Female terminalFemale terminal
-
105344156 Hitch ass'y. Includes 12 to 17Hitch ass'y. Includes 12 to 17
-
115344156 Hitch ass'yHitch ass'y
-
125440767 LockLock
-
1341012 PinPin
-
1441029 Hair pinHair pin
-
15545693 SpringSpring
-
1633011 Elastic stop nut M8Elastic stop nut M8
-
1720004 Washer A8,4Washer A8,4
-
1840009 Hex. screw M8 x 50Hex. screw M8 x 50
-
19605251392 Mold Tail LampMold Tail Lamp
-
2040206 Screw 4.8 x 25Screw 4.8 x 25
-
21605251963 BaseBase
-
2240322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
23510004367 RH HandleRH Handle
-
23510004768 Seat BeltSeat Belt
-
24250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
25293100003 NutNut
-
26605351510 SpacerSpacer
-
275344152 Hitch ass'yHitch ass'y
-
285344151 PlatePlate
-
29548745 Hitch plateHitch plate
-
30560309200 Pin-RetainerPin-Retainer
-
3141031 PinPin
-
3240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
33250000199 Screw 25mmScrew 25mm
-
34510004415 RH DeflectorRH Deflector
-
34510004416 LH DeflectorLH Deflector
-
35510004449 Handle GripHandle Grip
-
36515176393 HeaterHeater
-
37515175506 TubingTubing
-
38510004709 Handle ReinforforcementHandle Reinforforcement
-
39510004566 Switch HousingSwitch Housing
-
40250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
41510004413 Rocker SwitchRocker Switch
-
42510004414 Protector SwitchProtector Switch
-
43515176241 LH Handle HarnessLH Handle Harness
-
44414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45516002835 Handle Heater DecalHandle Heater Decal
-
46510004405 MouldingMoulding
-
47605640015 Handle M8 X 35Handle M8 X 35
-
48605454565 Handle LinkHandle Link
-
4941007 PinPin
-
50510004419 GripGrip
