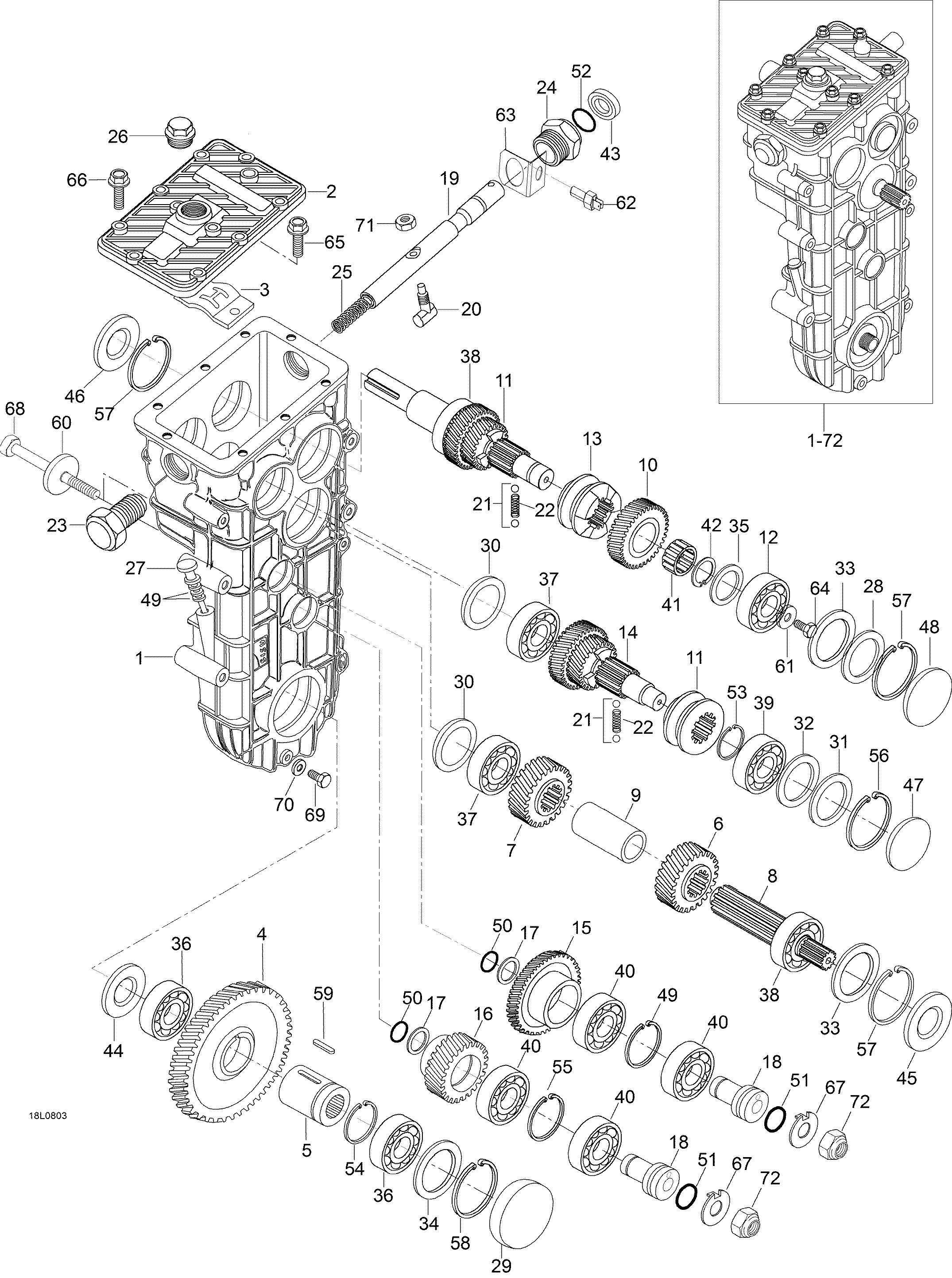

05- Transmission для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
-605612006 Vaihteisto (1,89 HP) (870156343). Includes 1 to 72Vaihteisto (1,89 HP) (870156343). Includes 1 to 72
-
1875156138 HousingHousing
-
2875156043 CoverCover
-
3875156111 H-schemeH-scheme
-
4875156114 Sprocket (53 Tooth)Sprocket (53 Tooth)
-
5875156218 ShaftShaft
-
6875156276 Gear Z=29Gear Z=29
-
7875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
8875156069 ShaftShaft
-
9875156087 SleeveSleeve
-
10875156115 Sprocket (28 Tooth)Sprocket (28 Tooth)
-
11875156063 Counter shaft assy. Includes 10 to 11Counter shaft assy. Includes 10 to 11
-
12610063050 Ball bearingBall bearing
-
13875156005 Clutch wheelClutch wheel
-
14875156068 Reverse shaftReverse shaft
-
15875156050 Sprocket (28 Tooth)Sprocket (28 Tooth)
-
16875156049 Sprocket (31 Tooth)Sprocket (31 Tooth)
-
17875156328 RingRing
-
18619230005 ShaftShaft
-
19875156072 ShaftShaft
-
20875156073 PinPin
-
21616810064 BallBall
-
22875156105 SpringSpring
-
23875156076 SleeveSleeve
-
24875156077 SleeveSleeve
-
25875156078 SpringSpring
-
26875156098 PlugPlug
-
27875156278 DipstickDipstick
-
28617395067 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
29614100068 PlugPlug
-
30875152953 PlugPlug
-
31617394352 Adjustment shim 0.5mmAdjustment shim 0.5mm
-
32617394252 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
33617395065 Adjustment shim 0.3mmAdjustment shim 0.3mm
-
34617395568 Adjustment shimAdjustment shim
-
35616092542 WasherWasher
-
36610060080 BearingBearing
-
37610063044 Bearing 6304Bearing 6304
-
38610063050 Bearing 6305Bearing 6305
-
39610063040 Bearing 6304Bearing 6304
-
40612030303 BearingBearing
-
41611002529 Needle bearingNeedle bearing
-
42617450025 CirclipCirclip
-
43614102031 Oil sealOil seal
-
44614102852 Oil sealOil seal
-
45614102562 Oil sealOil seal
-
46614103562 Oil sealOil seal
-
47614100052 PlugPlug
-
48614100062 PlugPlug
-
49614600725 O-ringO-ring
-
50614601224 O-ringO-ring
-
51614602431 O-ringO-ring
-
52614601523 O-ringO-ring
-
53617450028 CirclipCirclip
-
54617300040 CirclipCirclip
-
55617330047 CirclipCirclip
-
5631002 CirclipCirclip
-
57617330062 CirclipCirclip
-
58617330068 CirclipCirclip
-
59603345080 KeyKey
-
60619230004 ShimShim
-
61875156112 WasherWasher
-
62654100225 SenderSender
-
63875156242 Fastening plateFastening plate
-
6440036 Hex. screw M8 x 20Hex. screw M8 x 20
-
65534801362 Hex. screw M8 x 16Hex. screw M8 x 16
-
66537001402 Hex. screw M8 x 25Hex. screw M8 x 25
-
67875156327 WasherWasher
-
68619230003 Screw M8 x 80Screw M8 x 80
-
69528801342 PlugPlug
-
70615580812 Seal ringSeal ring
-
71510611002 Nut M10Nut M10
-
72510600802 Nut M10Nut M10
