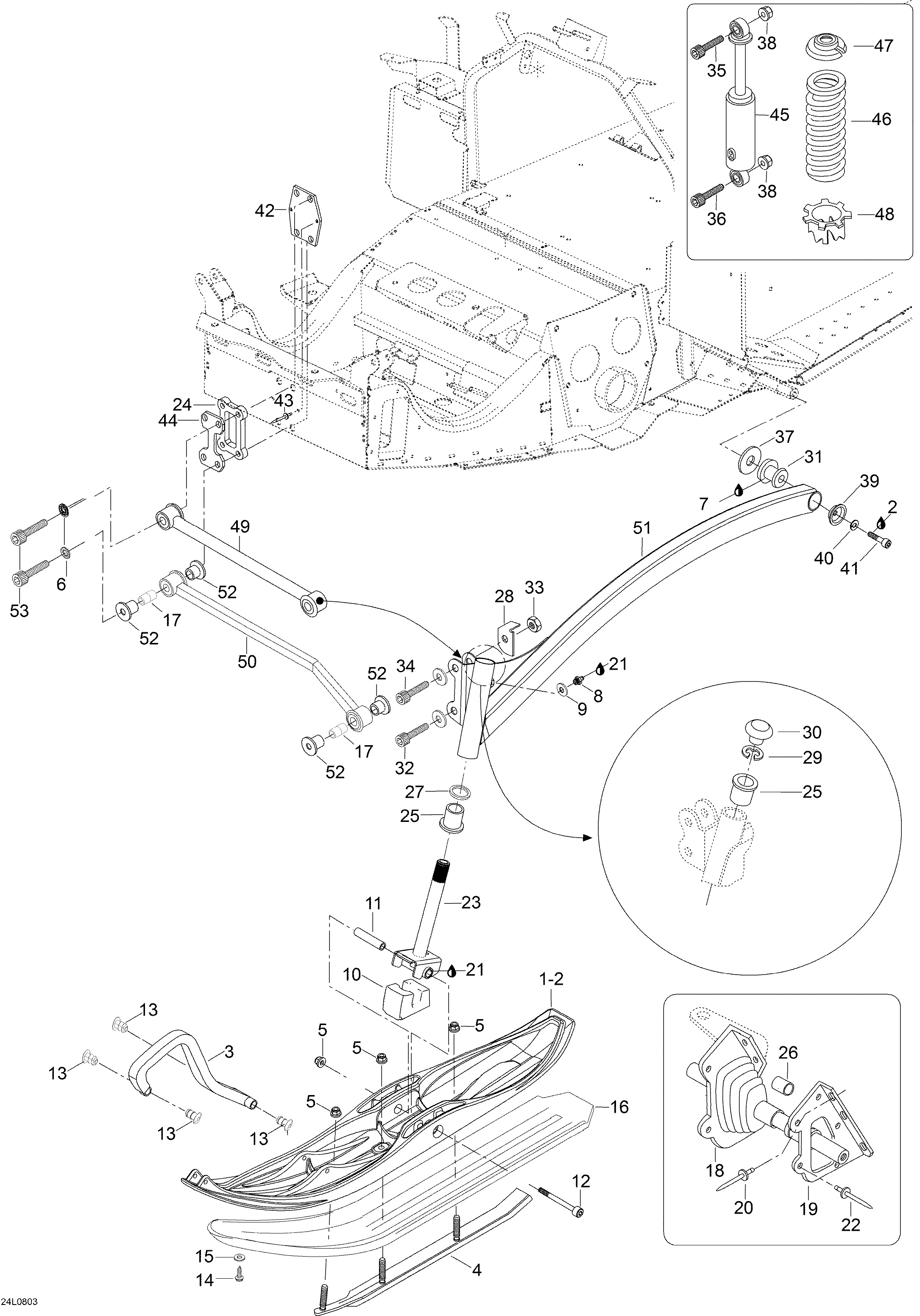

07- Front Suspension And Ski для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
1605153775 Plastic ski ass'y. Includes 1 to 2Plastic ski ass'y. Includes 1 to 2
-
2293800060 Loctite 243, 10mlLoctite 243, 10ml
-
3505070963 Handle, blackHandle, black
-
4619400006 Carbide ski runner ass'y. Includes 4 to 5Carbide ski runner ass'y. Includes 4 to 5
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
620074 Lock washerLock washer
-
7293550030 Grease, super lubeGrease, super lube
-
834011 Grease nippleGrease nipple
-
920007 Washer A6,4Washer A6,4
-
10605348458 Ski stopperSki stopper
-
11506133300 SleeveSleeve
-
1240225 Socket head screw M10 x 140Socket head screw M10 x 140
-
13505071812 RetainerRetainer
-
1440901 Screw 5 x 20Screw 5 x 20
-
1520037 Washer A4,3Washer A4,3
-
16605153964 Ski linerSki liner
-
17605450024 SleeveSleeve
-
18570024800 R.H. Tie rod capR.H. Tie rod cap
-
18570024900 L.H. Tie rod capL.H. Tie rod cap
-
19605350120 R.H. retainer ringR.H. retainer ring
-
19605350119 L.H. retainer ringL.H. retainer ring
-
2036037 RivetRivet
-
21293550033 Synthetic greaseSynthetic grease
-
2236009 RivetRivet
-
23505072001 Ski legSki leg
-
24605350191 Spacer plateSpacer plate
-
25505070003 CushionCushion
-
26572036500 CushionCushion
-
27505070004 WasherWasher
-
28605448861 R.H. LimiterR.H. Limiter
-
28605448862 L.H. LimiterL.H. Limiter
-
29371910400 CirclipCirclip
-
30572091300 CapCap
-
31570062200 Rubber damperRubber damper
-
3240371 Socket head screw M12 x 55Socket head screw M12 x 55
-
3333013 Elastic stop nut. M12Elastic stop nut. M12
-
3440306 Socket head screw M12 x 60Socket head screw M12 x 60
-
3540837 Socket head screw M10 x 55Socket head screw M10 x 55
-
3640136 Socket head screw. M10 x 50Socket head screw. M10 x 50
-
37503146700 WasherWasher
-
3833012 Elastic stop nut. M10Elastic stop nut. M10
-
39506115800 CupCup
-
4020014 Lock washer A8Lock washer A8
-
4140810 Socket head screw M8 x 20Socket head screw M8 x 20
-
42605353972 Nut plateNut plate
-
4336005 RivetRivet
-
44605450900 Spacer plateSpacer plate
-
4523122 ShockShock
-
46250143 SpringSpring
-
47230076 Spring stopperSpring stopper
-
48230078 CamCam
-
49605350022 Upper armUpper arm
-
50605252224 Lower armLower arm
-
51605251768 R.H. Swing armR.H. Swing arm
-
51605251767 L.H. Swing armL.H. Swing arm
-
52506149100 CushionCushion
-
5340370 Socket head screw M12 x 75Socket head screw M12 x 75
