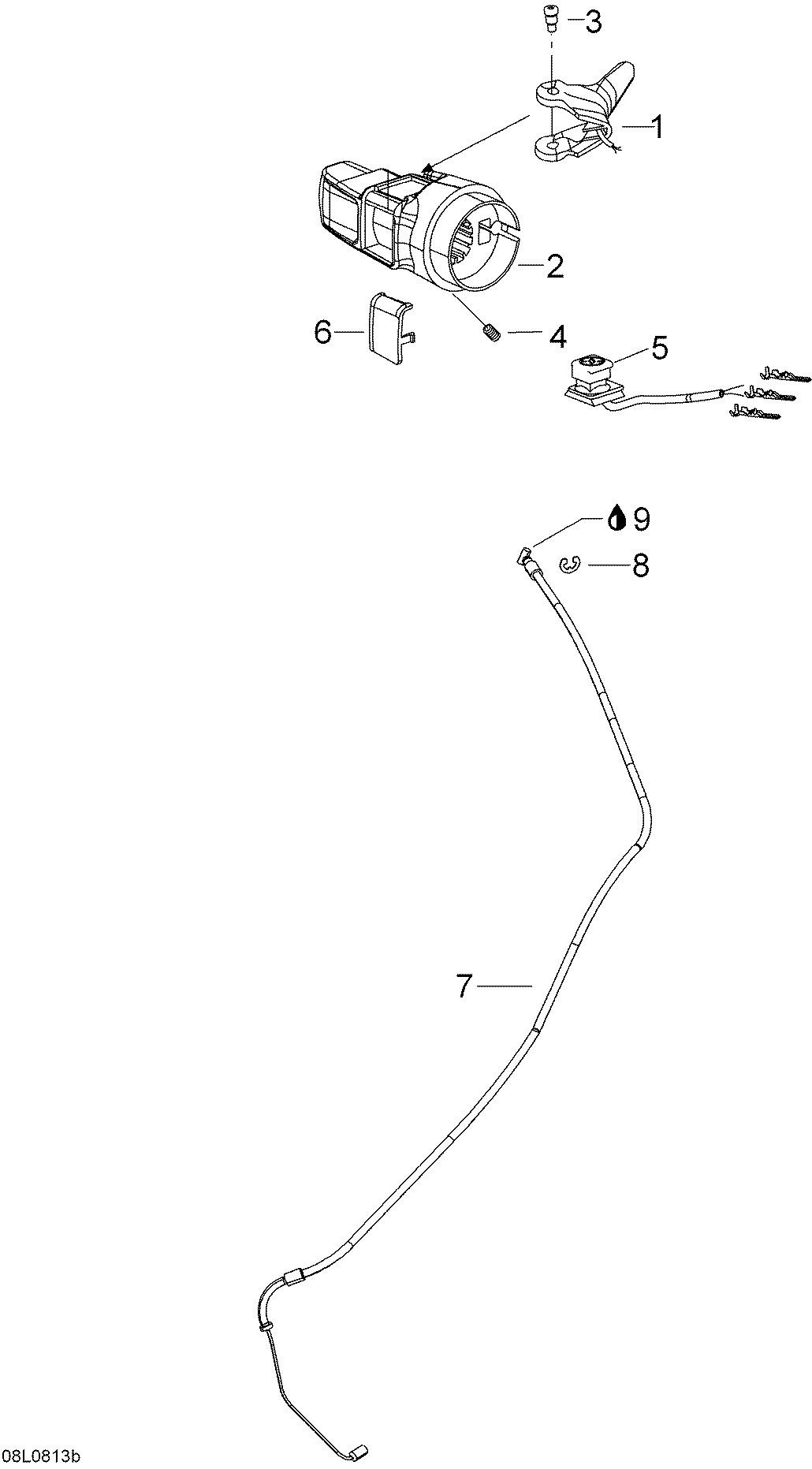

01- Throttle Handle And Housing для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1512059107 Throttle handleThrottle handle
-
2512059763 Throttle handle housingThrottle handle housing
-
3732601143 ScrewScrew
-
4114144408 Screw M8 x 10Screw M8 x 10
-
5515175410 Emergency switchEmergency switch
-
6572100901 CoverCover
-
7605352663 Throttle cableThrottle cable
-
831038 CirclipCirclip
