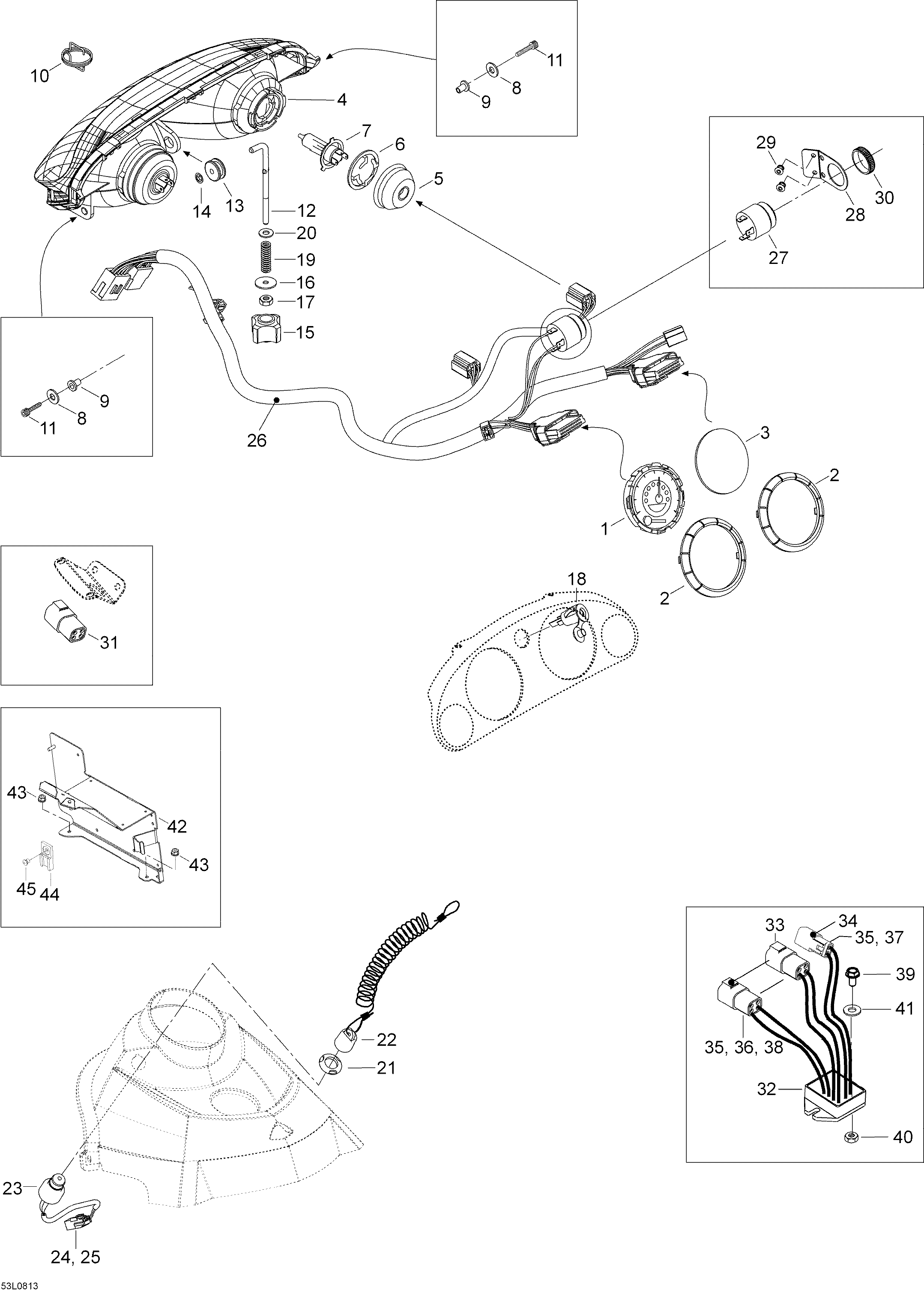

10- Electrical Acessories для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
2515176242 Ring gaugeRing gauge
-
3515175901 Cover plateCover plate
-
4515176273 Halogen headlamp. Includes 4 to 7Halogen headlamp. Includes 4 to 7
-
5515175911 ProtectorProtector
-
6515175910 HolderHolder
-
7410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
820008 Washer A5,3Washer A5,3
-
9250100018 Well-nutWell-nut
-
105447238 SpringSpring
-
1140235 Hex. screw M5 x 35Hex. screw M5 x 35
-
12605450023 Adjuster rodAdjuster rod
-
13415100800 GrommetGrommet
-
14732610072 Nut PushNut Push
-
15515175548 HandleHandle
-
1620038 WasherWasher
-
1733010 Elastic stop nut M6Elastic stop nut M6
-
1842026 Flush mounted socketFlush mounted socket
-
19415100600 SpringSpring
-
2020003 Washer A6,4Washer A6,4
-
21278000508 Plastic nutPlastic nut
-
22515176461 DESS-switchDESS-switch
-
23515175797 Switch DESS. Includes 23 to 25Switch DESS. Includes 23 to 25
-
24515175232 Male terminalMale terminal
-
25515175494 Male terminal housingMale terminal housing
-
26605153275 Harness ass'y, headlampHarness ass'y, headlamp
-
27515176035 Back up alarmBack up alarm
-
285447941 BracketBracket
-
2936005 RivetRivet
-
30414805101 NutNut
-
31515176234 Female connector housing (6 circuits)Female connector housing (6 circuits)
-
32515176243 Voltage regulator. Includes 32 to 38Voltage regulator. Includes 32 to 38
-
33278001477 Male terminal housingMale terminal housing
-
34278001674 Male terminal housingMale terminal housing
-
35515175568 Female terminalFemale terminal
-
36278001478 Male lockMale lock
-
37278001672 Male lockMale lock
-
38293000052 Sealing capSealing cap
-
3940030 Screw M6 x 20Screw M6 x 20
-
4033010 Elastic stop nut M6Elastic stop nut M6
-
4120009 Washer A6.4Washer A6.4
-
42605353300 Instrument plateInstrument plate
-
4333200 Elastic flanged nut M6Elastic flanged nut M6
-
44515175917 ClipClip
-
4536005 RivetRivet
