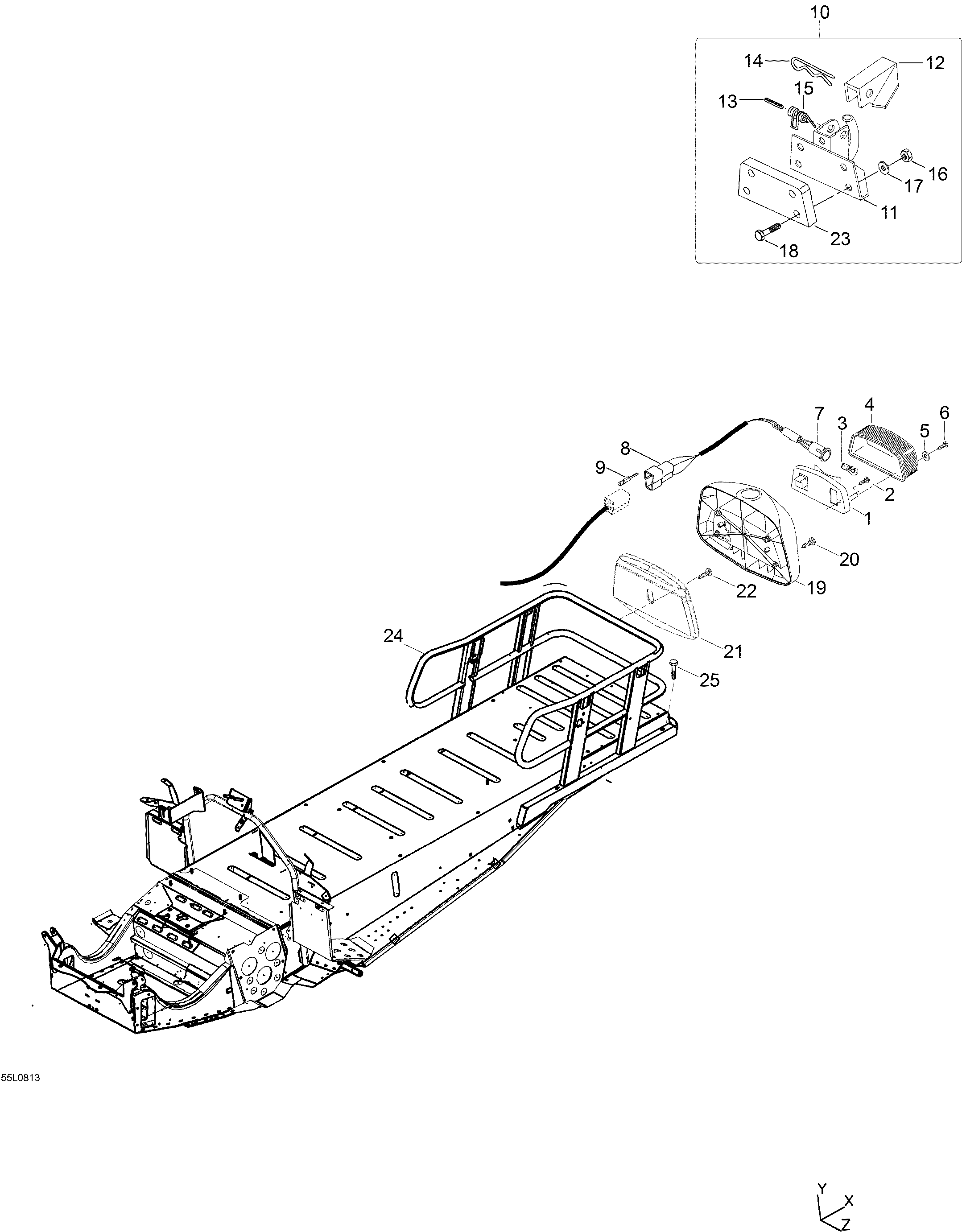

09- Rack для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1515175397 Tail lamp housingTail lamp housing
-
240207 Screw 4.8 x 45Screw 4.8 x 45
-
3410504000 Bulp tail lampBulp tail lamp
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6414516300 ScrewScrew
-
7515175852 Bulp holder + cabelBulp holder + cabel
-
842606 Female terminal housing (3-circuits)Female terminal housing (3-circuits)
-
942614 Female terminalFemale terminal
-
105344156 Hitch ass'y. Includes 12 to 17Hitch ass'y. Includes 12 to 17
-
115344208 HitchHitch
-
125440767 LockLock
-
1341012 PinPin
-
1441029 Hair pinHair pin
-
15545693 SpringSpring
-
1633011 Elastic stop nut M8Elastic stop nut M8
-
1720004 Washer A8,4Washer A8,4
-
1840009 Screw M8 x 50Screw M8 x 50
-
19605251392 Bakljus skyddBakljus skydd
-
2040206 Screw 4.8 x 25Screw 4.8 x 25
-
21605251963 Base tail lampBase tail lamp
-
2240322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
23605351510 ExtensionExtension
-
24605155241 RackRack
-
2540316 ScrewScrew
