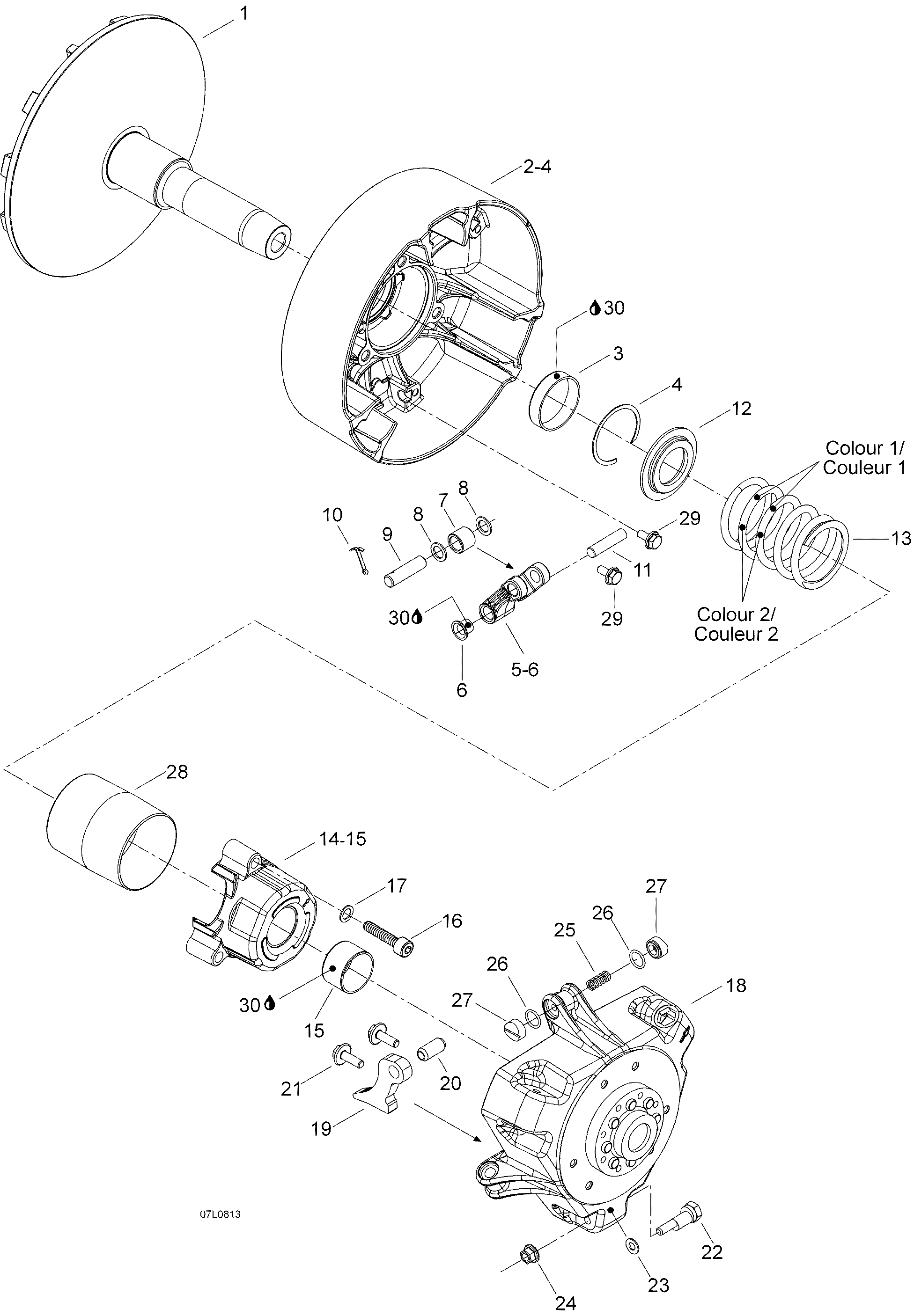

05- Drive Pulley для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1417222593 Fixed flangeFixed flange
-
2417222629 Sliding flange ass'y. Includes 2 to 4Sliding flange ass'y. Includes 2 to 4
-
3417006900 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5417222672 Lever assy. Includes 5 to 6Lever assy. Includes 5 to 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
10732958001 Cotter pinCotter pin
-
11417009202 PinPin
-
12417222312 Spring seatSpring seat
-
13414689800 Spring (red/red)Spring (red/red)
-
14417007500 Spring cover ass'y. Includes 14 to 15Spring cover ass'y. Includes 14 to 15
-
15417009204 Spring cover bushingSpring cover bushing
-
16205084044 Socket head screw M8 x 40Socket head screw M8 x 40
-
17250200009 WasherWasher
-
18417222530 Gouvernor cup ass'yGouvernor cup ass'y
-
19417222883 Ramp 614Ramp 614
-
20250400009 Dowel tube M8x24Dowel tube M8x24
-
21250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
22417222955 Calibration screwCalibration screw
-
23417005600 WasherWasher
-
24233061414 Locking nut M6Locking nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417223021 Shoe sliderShoe slider
-
28417009205 ProtectorProtector
-
29210361296 Forming screw M6 x 12Forming screw M6 x 12
-
30413703100 Loctite 609, 10mlLoctite 609, 10ml
