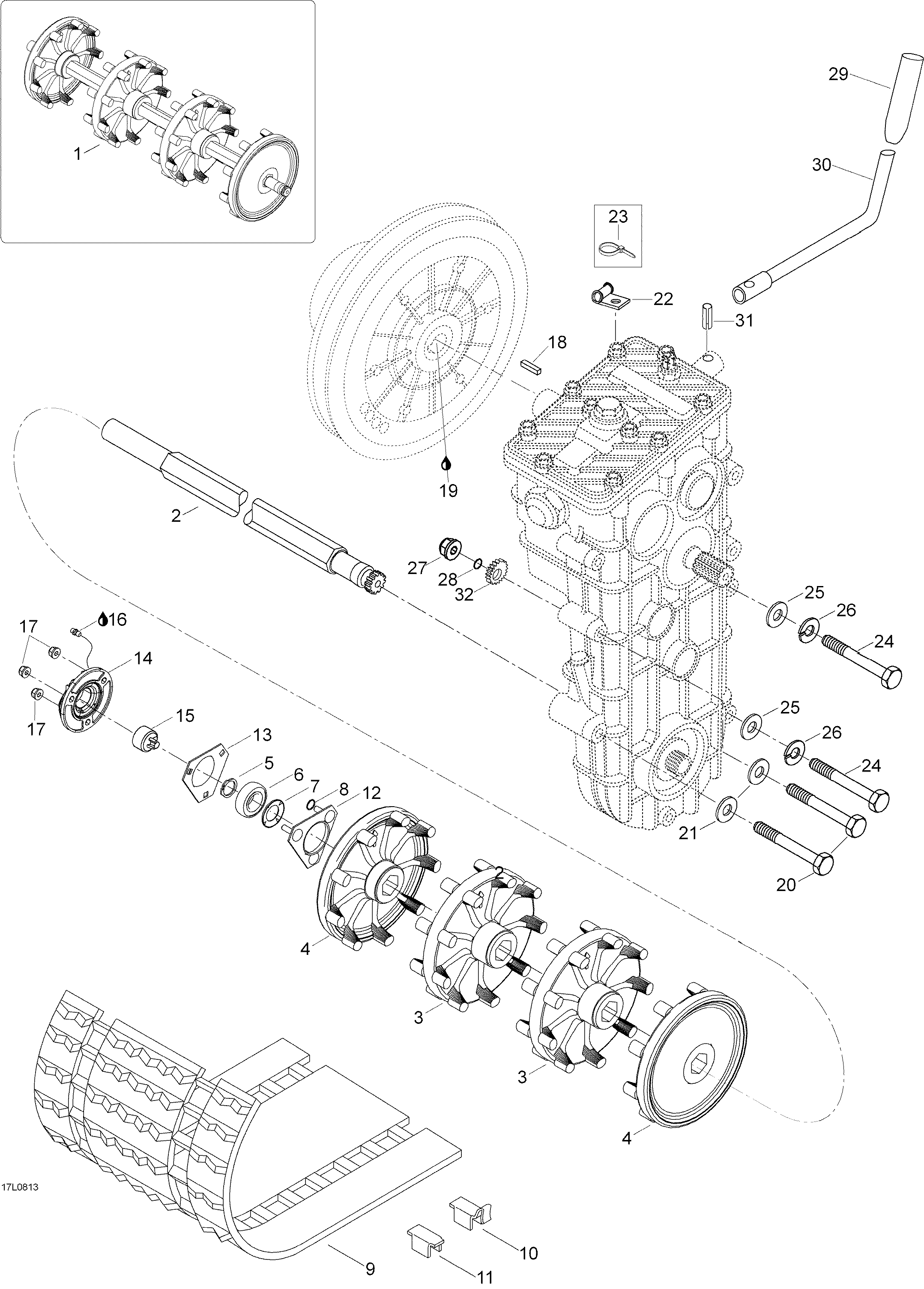

05- Drive System для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1605253105 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605253104 Drive axleDrive axle
-
3414931800 Sprocket 8-teethSprocket 8-teeth
-
4415067400 Sprocket 8-teethSprocket 8-teeth
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8414484400 O-ringO-ring
-
913070 Track (31.8)Track (31.8)
-
105318323 Cleat guideCleat guide
-
115318322 Slide guideSlide guide
-
12504151860 Bearing housing. Includes 10 to 12Bearing housing. Includes 10 to 12
-
13501025000 FlangeFlange
-
14504152173 FlangeFlange
-
15504152040 Magnetic adaptorMagnetic adaptor
-
16293550033 Synthetic grease, 400gSynthetic grease, 400g
-
1733201 Elastic flanged nut M8Elastic flanged nut M8
-
18418763 KeyKey
-
19293800070 Loctite 767, 8ozLoctite 767, 8oz
-
2040012 Hex. screw M8 x 80Hex. screw M8 x 80
-
2120004 Washer A8.4Washer A8.4
-
22605453927 ClampClamp
-
2327026 Tie-rapTie-rap
-
2440089 Screw M8 x 75Screw M8 x 75
-
2520010 Washer A8.4Washer A8.4
-
2620014 Lock washer M8Lock washer M8
-
2733201 Elastic flanged nut M8Elastic flanged nut M8
-
28506151140 O-ringO-ring
-
2928247 ButtonButton
-
30605350153 Shift handleShift handle
-
3141008 Spring keySpring key
-
32605454017 Rachel wheelRachel wheel
