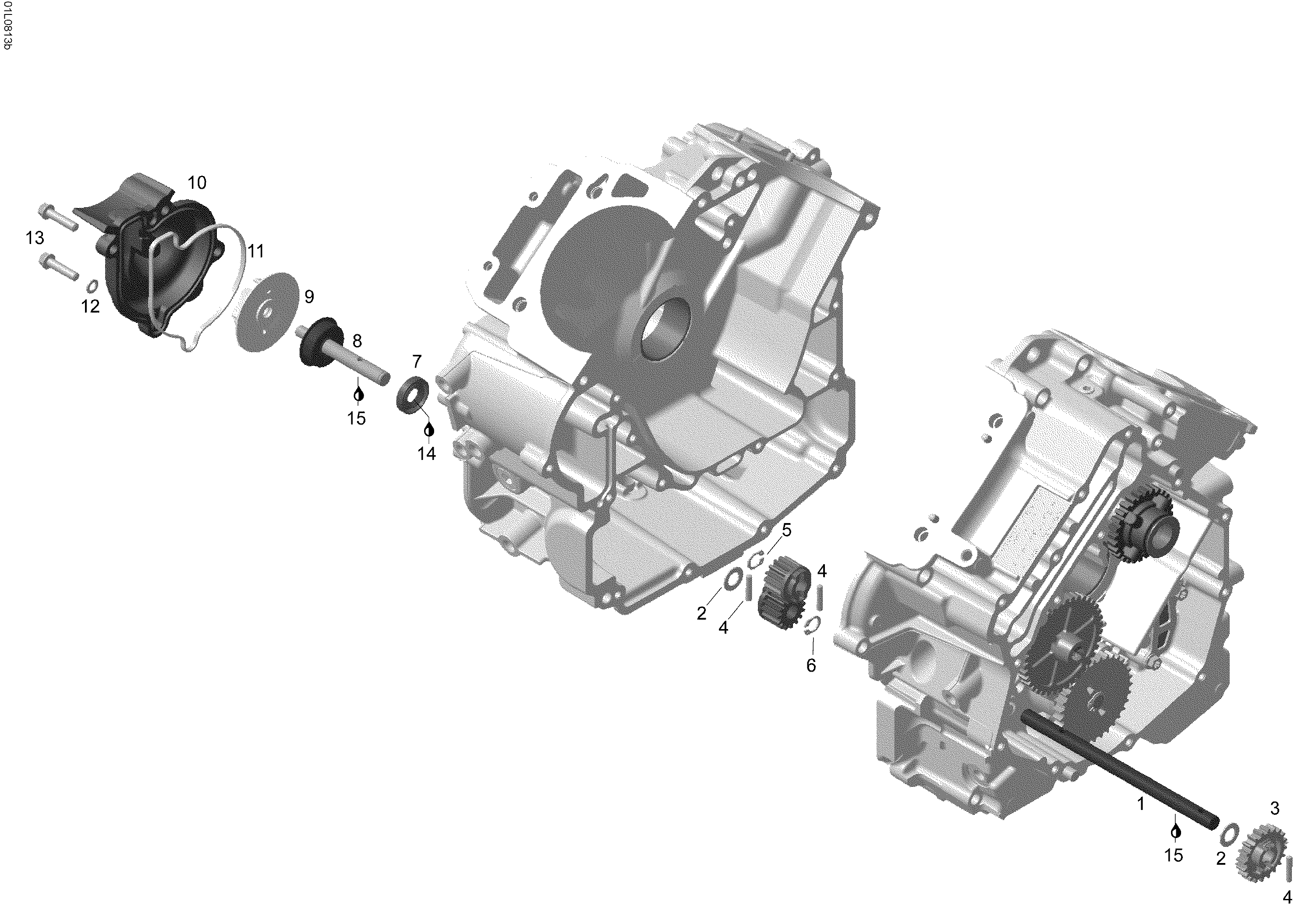

01- Waterpump для BRP Lynx YETI V-800 - 2008
-
№АртикулНазвание
-
1420620500 Intermediate shaftIntermediate shaft
-
2420827590 Thrust washerThrust washer
-
3420434330 Waterpump gear (20 teeth)Waterpump gear (20 teeth)
-
4420232420 Needle pinNeedle pin
-
5420234627 Pump gear (15 teeth)Pump gear (15 teeth)
-
6420245330 CirclipCirclip
-
8420620175 Waterpump shaft ass'yWaterpump shaft ass'y
-
9420222505 ImpellerImpeller
-
10420222780 Water pump housingWater pump housing
-
11420651190 GasketGasket
-
12420230415 O-ringO-ring
-
13420641238 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
14293550014 Grease, super lubeGrease, super lube
-
15293600054 Oil, 0 W 40, 12x1 literOil, 0 W 40, 12x1 liter
