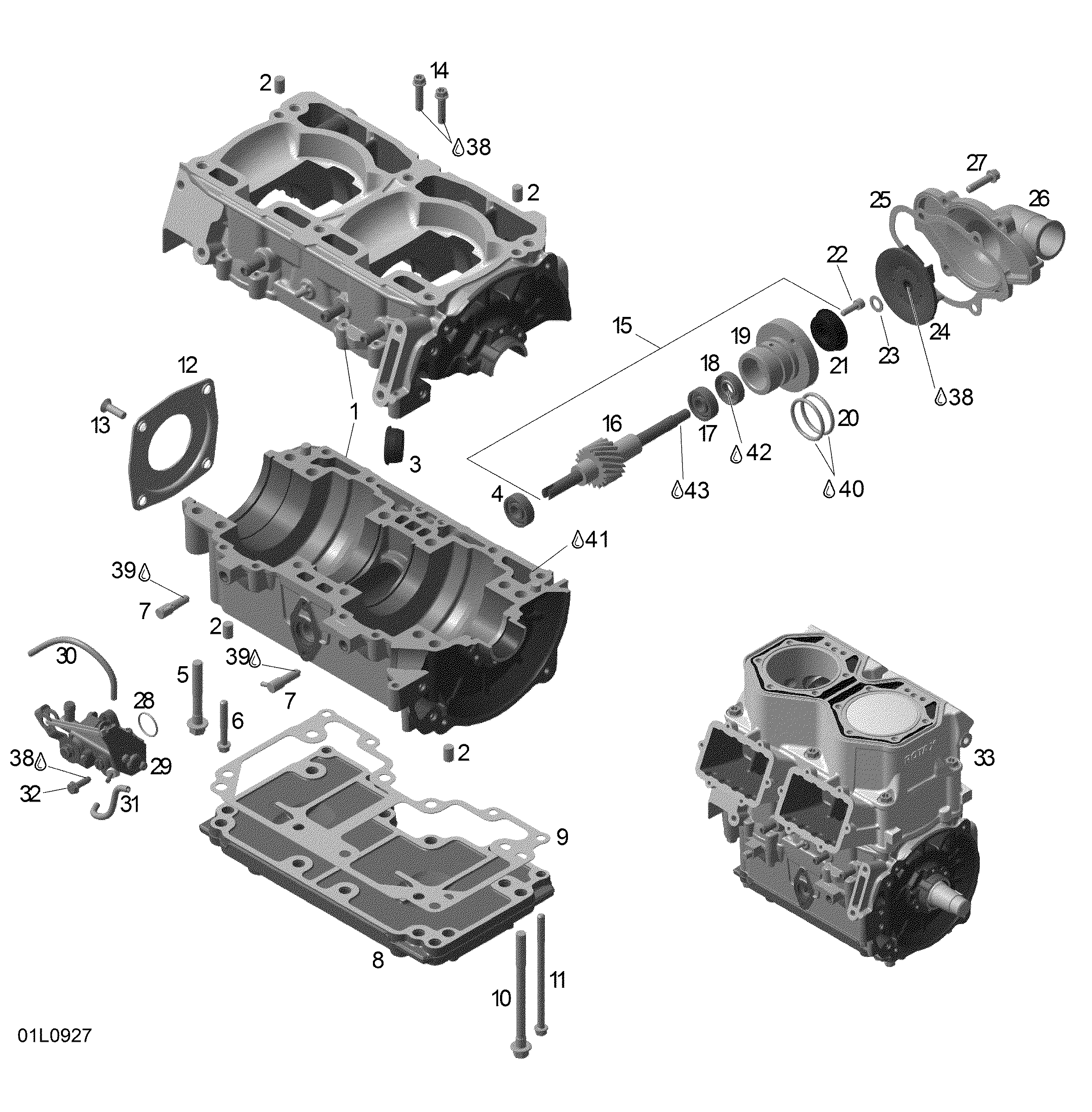

01- Crankcase для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1420890748 Crankcase ass'y. Includes 1 to 12. Includes 1 to 12Crankcase ass'y. Includes 1 to 12. Includes 1 to 12
-
2420632010 Pin 8x12 DIN 5402Pin 8x12 DIN 5402
-
3420860965 Cable grommetCable grommet
-
4420232100 Ball bearingBall bearing
-
5420941627 Allen screw M8x56,5 SW 11Allen screw M8x56,5 SW 11
-
6420440282 Screw M6x40Screw M6x40
-
7420956510 Checkvalve assyCheckvalve assy
-
8420812682 Base plateBase plate
-
9420430070 GasketGasket
-
10420941517 Screw M6x105Screw M6x105
-
11420440612 Screw M6x105 SW87T30. Includes 14 to 20. Includes 14 to 20Screw M6x105 SW87T30. Includes 14 to 20. Includes 14 to 20
-
12420812420 Cover plateCover plate
-
13420941436 Screw M6 x 20Screw M6 x 20
-
14420440232 Screw M6x25 SW87T30Screw M6x25 SW87T30
-
15420837676 Waterpump/oilpump shaft kompl.. Includes 14 to 20. Includes 15 to 21Waterpump/oilpump shaft kompl.. Includes 14 to 20. Includes 15 to 21
-
17420232100 Ball bearingBall bearing
-
18420230196 Oli sealOli seal
-
20420950890 O-ringO-ring
-
21420650370 GasketGasket
-
22420840511 Allen screw M5x16Allen screw M5x16
-
23420944033 WasherWasher
-
24420922805 ImpellerImpeller
-
25420430050 GasketGasket
-
26420822280 Pump housingPump housing
-
27420440232 Screw M6x25 SW87T30Screw M6x25 SW87T30
-
28420230400 O-ringO-ring
-
29420888774 Oilpump assyOilpump assy
-
30414413800 Oil line 115 mmOil line 115 mm
-
31414413800 Oil line 70 mmOil line 70 mm
-
32420941925 Screw M5x16Screw M5x16
-
33300079706 Short block engineShort block engine
-
38293800060 Loctite 243, 10mlLoctite 243, 10ml
-
39413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42420899271 Klueber petamo, 250gr. Chy 133Klueber petamo, 250gr. Chy 133
