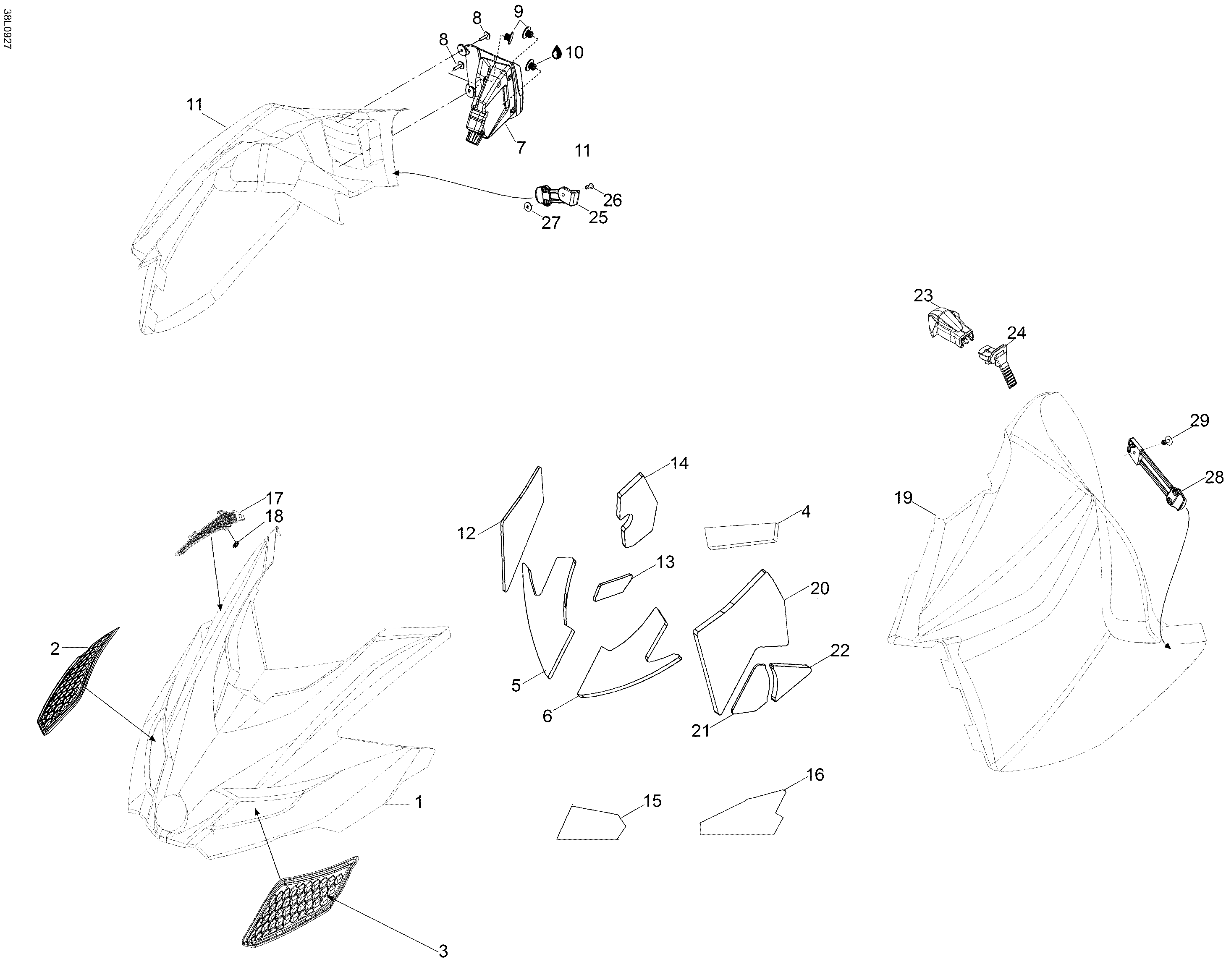

09- Hood для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1517303962 Hood/console assy. NTC_RAVEHood/console assy. NTC_RAVE
-
2517304141 R.H. Hood grillR.H. Hood grill
-
3517304008 L.H. Hood grillL.H. Hood grill
-
4517304266 Foam. NTC_RAVEFoam. NTC_RAVE
-
5517304263 Foam. NTC_RAVEFoam. NTC_RAVE
-
6517304321 FoamFoam
-
7517304322 Console R.H.Console R.H.
-
8250000113 Screw. NTC_RAVEScrew. NTC_RAVE
-
9275500241 Cap, blackCap, black
-
10413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
11517304235 Panel R.h. assy. NTC_RAVEPanel R.h. assy. NTC_RAVE
-
12517304220 Foam. NTC_RAVEFoam. NTC_RAVE
-
13517304306 FoamFoam
-
14517304339 FoamFoam
-
15517304264 Aluminuim Foil. NTC_RAVEAluminuim Foil. NTC_RAVE
-
16517304265 Aluminuim Foil. NTC_RAVEAluminuim Foil. NTC_RAVE
-
17517304007 GrillGrill
-
18517302785 NutNut
-
19517304237 Panel L.H- assy. NTC_RAVEPanel L.H- assy. NTC_RAVE
-
20517304219 Foam. NTC_RAVEFoam. NTC_RAVE
-
21517304305 FoamFoam
-
22517304340 FoamFoam
-
23517304075 End pieceEnd piece
-
24517303981 Latch panelLatch panel
-
25517303612 SalpaSalpa
-
26390402300 RivetRivet
-
27517124300 WasherWasher
-
28517303808 Latch panelLatch panel
-
29293150108 RivetRivet
