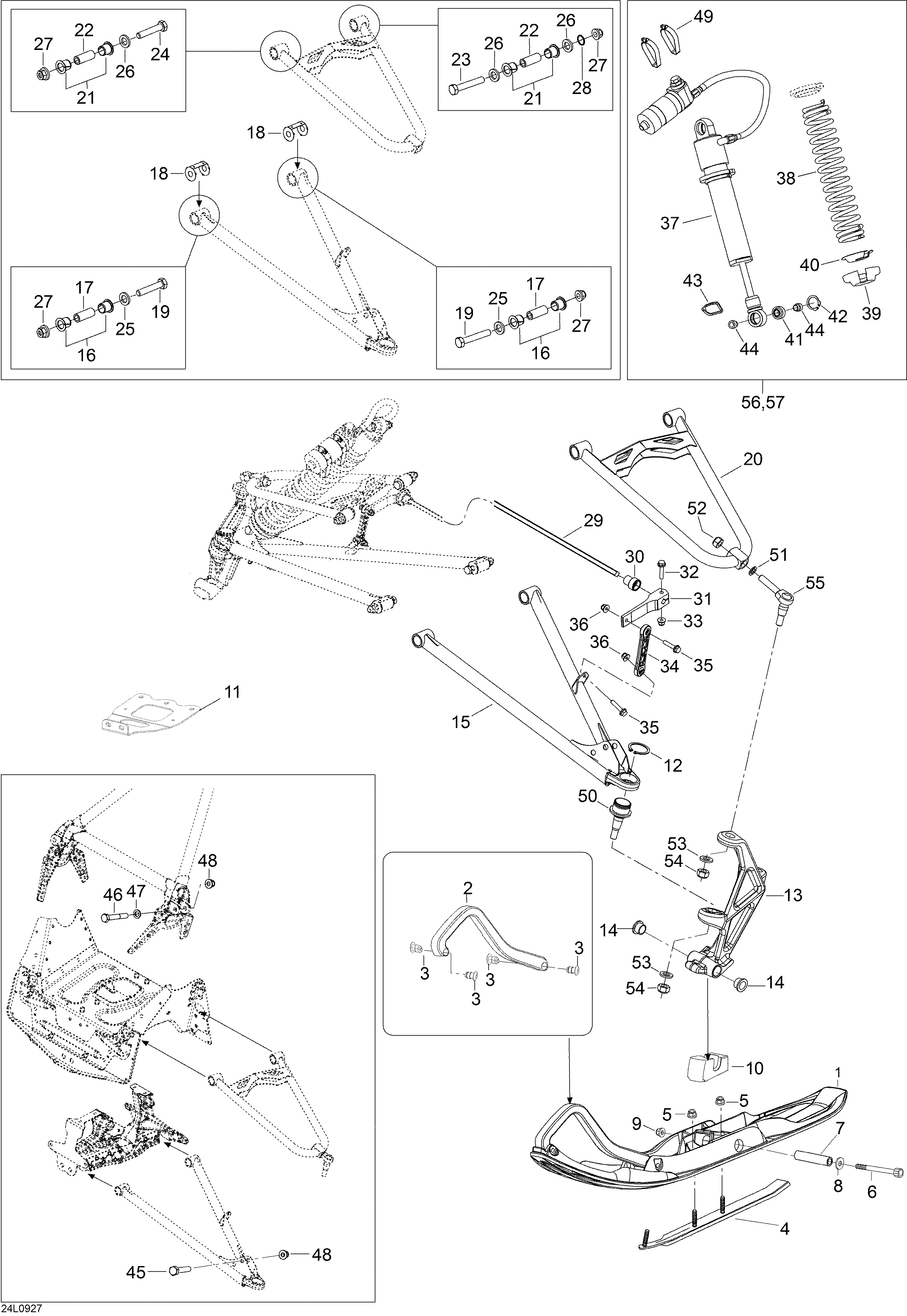

07- Front Suspension And Ski для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1505072673 Plastic-SkiPlastic-Ski
-
2505071812 RetainerRetainer
-
3505071059 Plastic handle, redPlastic handle, red
-
4605352643 Runner ass'yRunner ass'y
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
640391 Socket head screw M10 x 130Socket head screw M10 x 130
-
7505072101 SpacerSpacer
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Stopper-skiStopper-ski
-
11505072584 PlatePlate
-
12293370035 CirclipCirclip
-
13505071827 LH Ski LegLH Ski Leg
-
13505071829 RH Ski LegRH Ski Leg
-
14505072647 CushionCushion
-
15505072385 RH Lower ArmRH Lower Arm
-
15505072386 LH Lower ArmLH Lower Arm
-
16503191766 CushionCushion
-
17505072393 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072454 Upper ArmUpper Arm
-
21503191555 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072444 StabilisatorStabilisator
-
30505072445 BushingBushing
-
31505072446 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505072463 RH HPG Front ShockRH HPG Front Shock
-
37505072465 LH HPG Front ShockLH HPG Front Shock
-
38503192112 SpringSpring
-
39505072635 Spring StopperSpring Stopper
-
40505072637 CapCap
-
41414562900 Radial Ball-JointRadial Ball-Joint
-
42371910600 Interior CirclipInterior Circlip
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44506120200 BushingBushing
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49408801600 Gear Clamp TridonGear Clamp Tridon
-
50505072251 Lower Ball JointLower Ball Joint
-
51503189276 WasherWasher
-
52250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
53234021410 Flat Washer 12 mmFlat Washer 12 mm
-
54250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
55505072257 Upper Ball JointUpper Ball Joint
-
56505072464 L.H. Shock ass'y, ski. Includes 37 to 44L.H. Shock ass'y, ski. Includes 37 to 44
-
57505072462 R.H. Shock ass'y, ski. Includes 37 to 44R.H. Shock ass'y, ski. Includes 37 to 44
