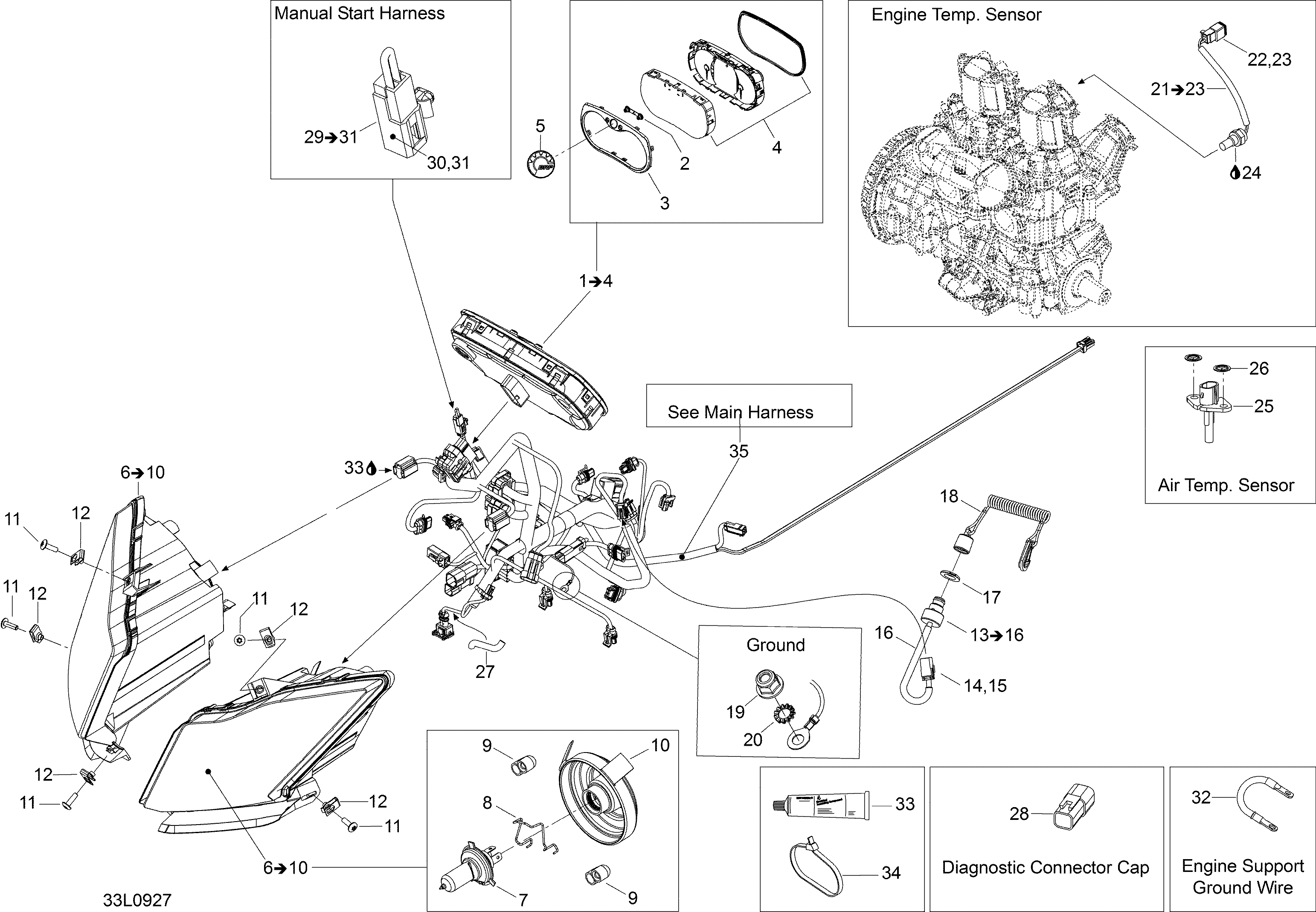

10- Electrical System для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1515176856 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp. Includes 6 to 10RH Headlamp. Includes 6 to 10
-
6517304195 LH Headlamp. Includes 6 to 10LH Headlamp. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515176815 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21515176398 Temperature Sensor. Includes 21 to 23Temperature Sensor. Includes 21 to 23
-
22515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
23278000632 Female TerminalFemale Terminal
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25515176366 Air Temperature SensorAir Temperature Sensor
-
26389804300 Push NutPush Nut
-
27515175442 Tubing 6 mmTubing 6 mm
-
28278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
29515176661 Manual Start Harness. Includes 29 to 31Manual Start Harness. Includes 29 to 31
-
30515175232 Male TerminalMale Terminal
-
31710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
32515176358 Ground WireGround Wire
-
33293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
34293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
34293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35515176713 Frame HarnessFrame Harness
