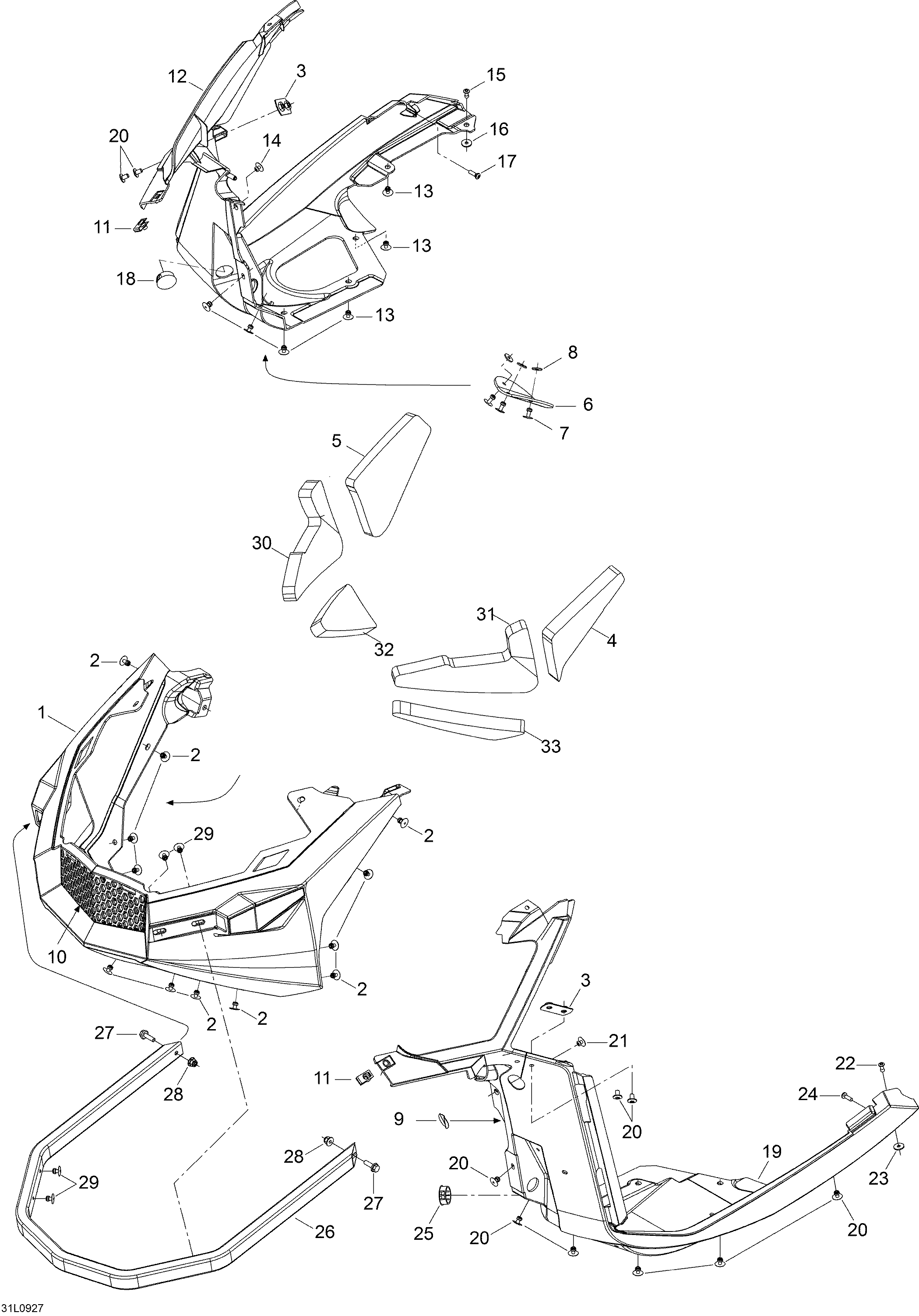

09- Bottom Pan для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1502006941 Front Bottom PanFront Bottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006949 PlatePlate
-
4502006829 Isolation R.H.Isolation R.H.
-
5502006830 Isolation L.H.Isolation L.H.
-
6502006935 Snow DeflectorSnow Deflector
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8517124300 WasherWasher
-
9293250087 GasketGasket
-
10502006942 GrillGrill
-
11293250087 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
12502006934 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150103 Pop RivetPop Rivet
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502006890 LH Bottom PanLH Bottom Pan
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150103 Pop RivetPop Rivet
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517124300 WasherWasher
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25414916600 Nylon CapNylon Cap
-
26502006833 Front BumperFront Bumper
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30502006906 Isolation R.H.Isolation R.H.
-
31502006907 Isolation L.H.Isolation L.H.
-
32502006908 Isolation R.H.Isolation R.H.
-
33502006909 Isolation L.H.Isolation L.H.
