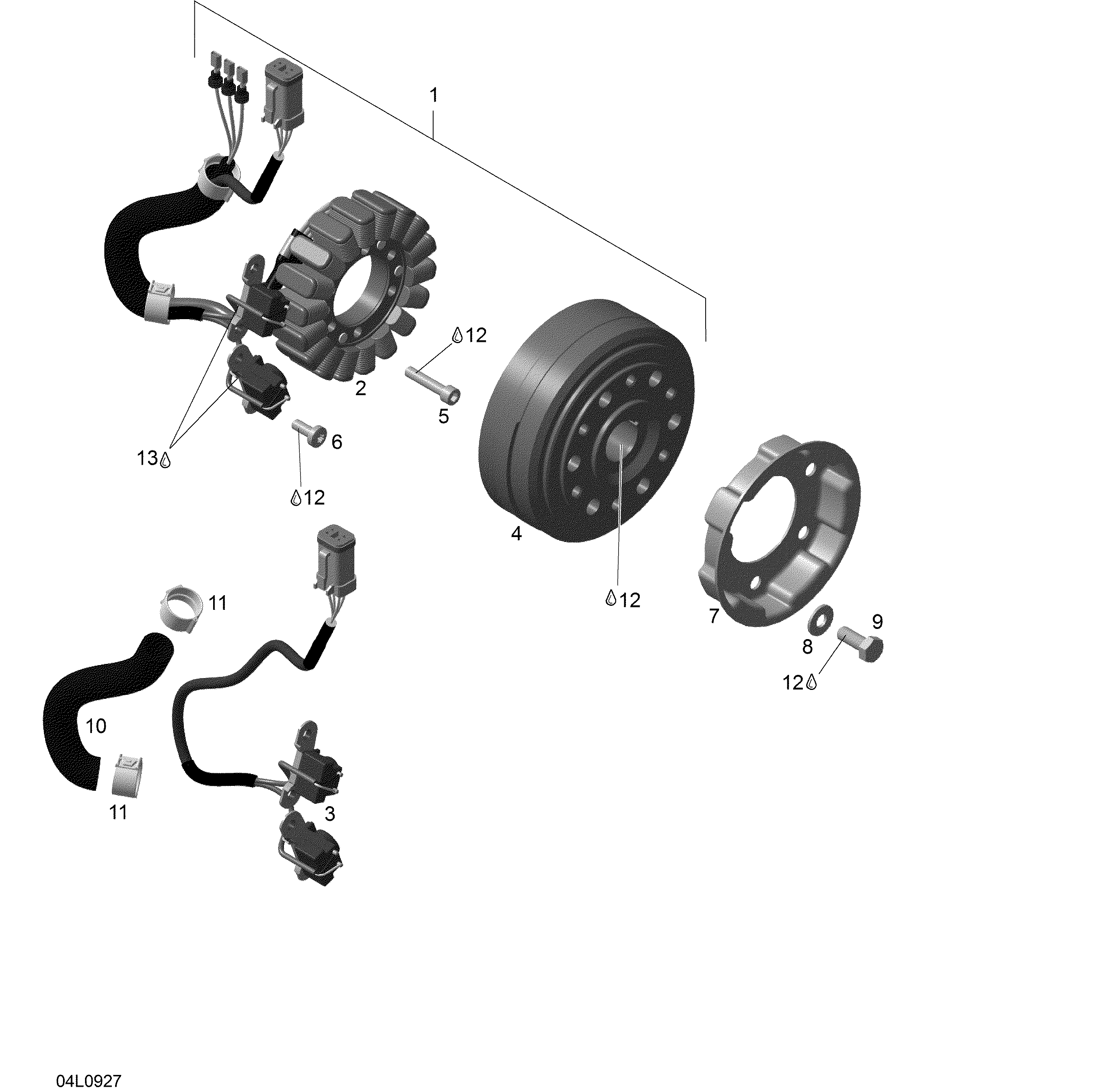

01- Ignition для BRP Lynx Rave RE 800R PowerTEK - 2009
-
№АртикулНазвание
-
1420891545 Magneto generator. Includes 1 to 9. Includes 1 to 4Magneto generator. Includes 1 to 9. Includes 1 to 4
-
2420889909 Stator ass'y whit tigger assyStator ass'y whit tigger assy
-
3420966803 Pick up ass'yPick up ass'y
-
4420665723 Magneto flywheelMagneto flywheel
-
5420840880 Allen screw M6 x 30Allen screw M6 x 30
-
6420640321 Taptite screw M5 x 16Taptite screw M5 x 16
-
7420852532 Starting pulleyStarting pulley
-
8420827405 WasherWasher
-
9420940581 Screw M8 x 16Screw M8 x 16
-
10420460871 TubeTube
-
11420960896 ClipClip
-
12293800060 Loctite 243, 10mlLoctite 243, 10ml
