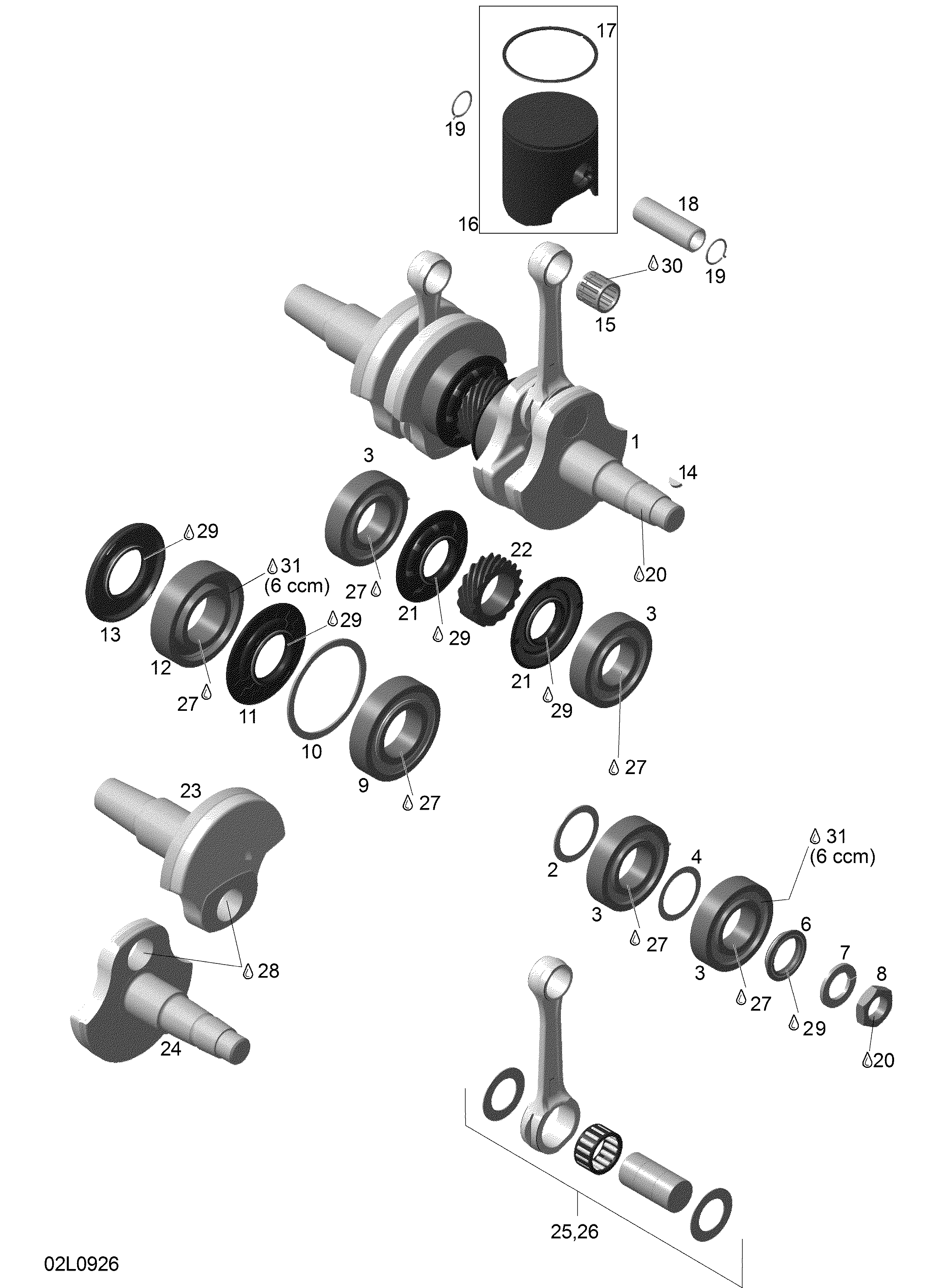

01- Crankshaft And Pistons для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1420891633 Crankshaft assy. Includes 1 to 14Crankshaft assy. Includes 1 to 14
-
2420827765 Distance ringDistance ring
-
3420832575 Ball bearing assyBall bearing assy
-
4420427502 Adjusting washerAdjusting washer
-
6420931793 Oil sealOil seal
-
7420945759 Lock washerLock washer
-
8420842230 Nut M22Nut M22
-
9420832600 Bearing 6208 assyBearing 6208 assy
-
10420926190 Retaining diskRetaining disk
-
11420931910 Oil sealOil seal
-
12420832603 Bearing 6208 assyBearing 6208 assy
-
13420931285 Oil sealOil seal
-
14420246015 Woodruff-keyWoodruff-key
-
15420832445 Needle cageNeedle cage
-
16420892383 Piston 71.89 mm. Includes 16 to 17Piston 71.89 mm. Includes 16 to 17
-
17420815295 Semi trapez ringSemi trapez ring
-
18420916411 Piston pinPiston pin
-
19420845106 CirclipCirclip
-
20293800060 Loctite 243Loctite 243
-
21420931455 Oil sealOil seal
-
22420834355 Central gear 15TCentral gear 15T
-
23420818708 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
24420818739 Crankshaft MAG. sideCrankshaft MAG. side
-
25420890958 Rod repair kit PTO.-sideRod repair kit PTO.-side
-
26420890959 Rod repair kit MAG.-sideRod repair kit MAG.-side
-
27293800070 Loctite anti seizeLoctite anti seize
-
28420897340 Loctite 14486, 250mlLoctite 14486, 250ml
-
29420899271 Klueber petamoKlueber petamo
-
30413803000 Injection oil (83x 14L)Injection oil (83x 14L)
-
31293550021 Isoflex grease, 50gIsoflex grease, 50g
