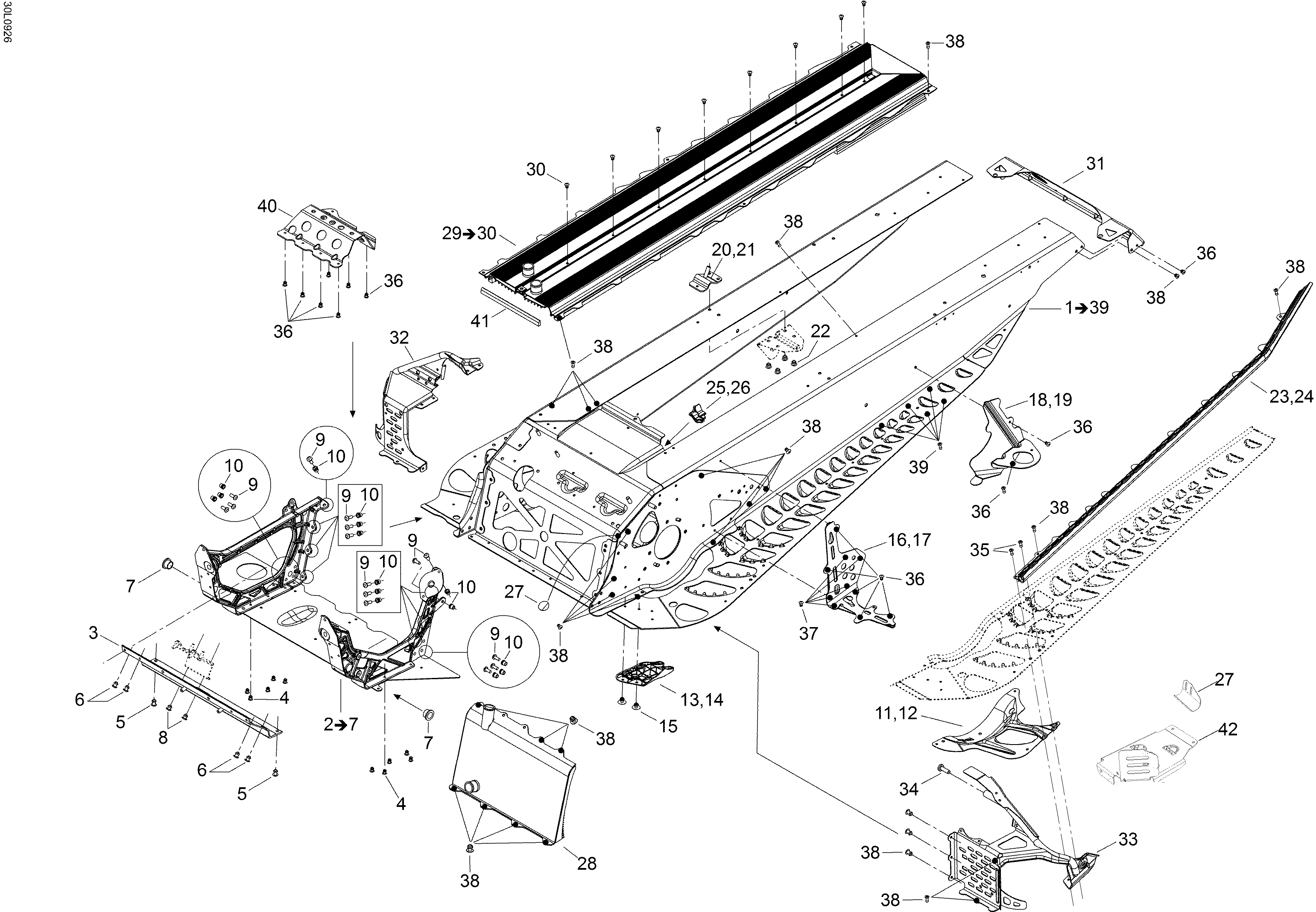

09- Frame для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1518326079 Frame assy. Includes 1 to 39Frame assy. Includes 1 to 39
-
2518326077 E ModuleE Module
-
3518325995 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock RivetHemlock Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505070954 CushionCushion
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9293150148 Magna grip rivetMagna grip rivet
-
10293150149 Huck collarHuck collar
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518325753 RH Rear SupportRH Rear Support
-
19518325754 LH Rear SupportLH Rear Support
-
20518326412 RH Rear BaseRH Rear Base
-
21518326413 LH Rear BaseLH Rear Base
-
23518325693 RH RollerRH Roller
-
24518325694 LH RollerLH Roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
27518325573 Toe-hold R.HToe-hold R.H
-
27518325574 Toe-hold L.HToe-hold L.H
-
28518325714 Front RadiatorFront Radiator
-
29518325666 Rear RadiatorRear Radiator
-
30390909100 Avex RivetAvex Rivet
-
31518325421 Rear CapRear Cap
-
32518326032 RH StirrupRH Stirrup
-
33518326021 LH StirrupLH Stirrup
-
34250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36390909200 Avex RivetAvex Rivet
-
37390909100 Avex RivetAvex Rivet
-
38390909200 Stavex RivetStavex Rivet
-
39390908600 RivetRivet
-
40518325796 Link CrossLink Cross
-
41293200105 GasketGasket
-
42518325826 Footrest L.H.Footrest L.H.
-
42518325827 Footrest R.H.Footrest R.H.
