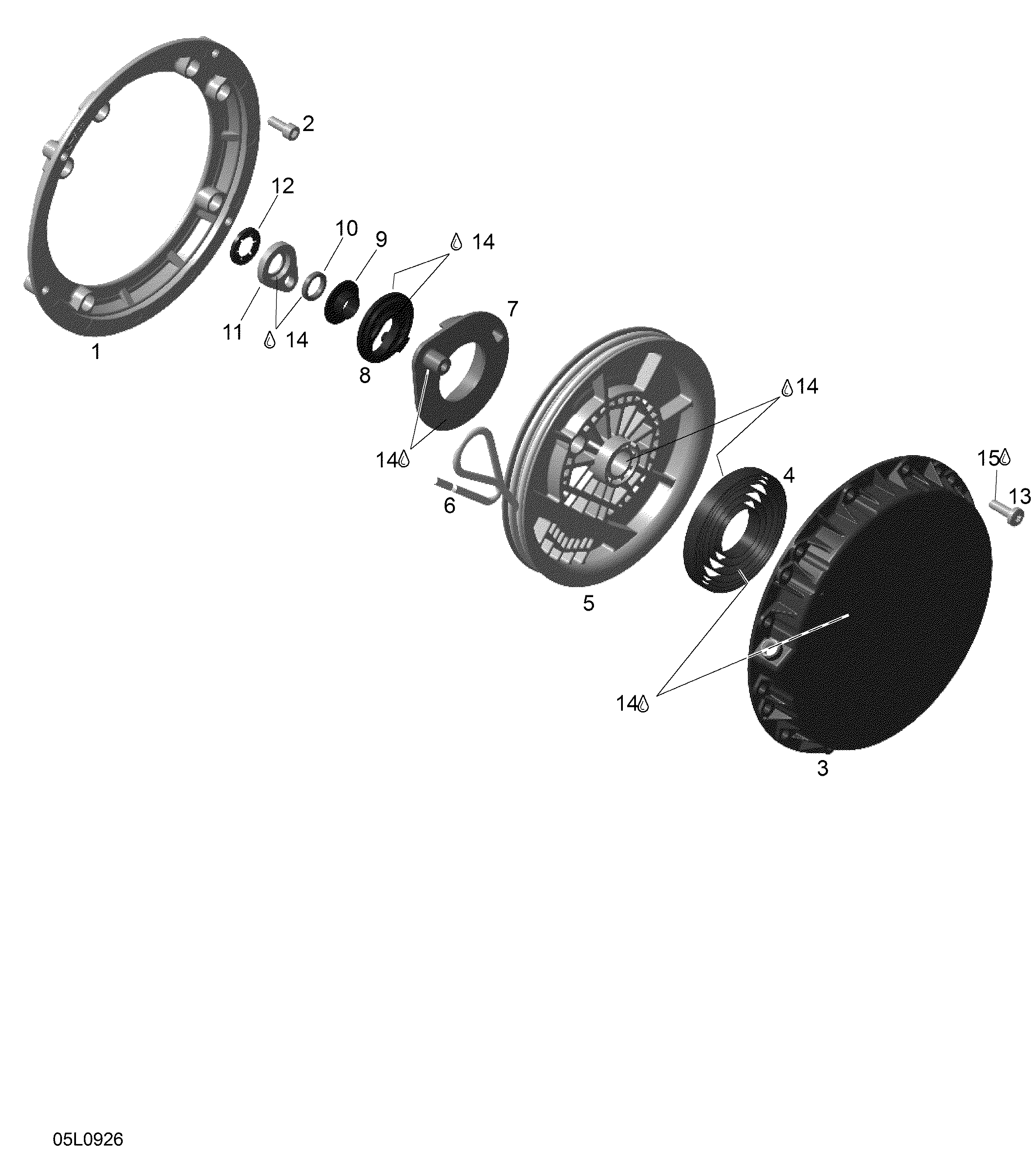

04- Rewind starter для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1420810868 Connecting flangeConnecting flange
-
2420241236 Screw M6 x 16Screw M6 x 16
-
3-13420892612 Rewind stater ass'y. Includes 3 to 13Rewind stater ass'y. Includes 3 to 13
-
3420910253 Stater housingStater housing
-
4420939115 SpringSpring
-
5420852288 Rope sheaveRope sheave
-
6412500200 Stater ropeStater rope
-
7420852630 PawlPawl
-
8420852308 Pawl lockPawl lock
-
9420847926 Step collarStep collar
-
10420250407 O-ringO-ring
-
11420852520 Lock leverLock lever
-
12420845560 Locking elementLocking element
-
13420941256 Screw M6 x 20Screw M6 x 20
-
14420297433 Molykote G-NMolykote G-N
-
15293800060 Loctite 243, 10mlLoctite 243, 10ml
