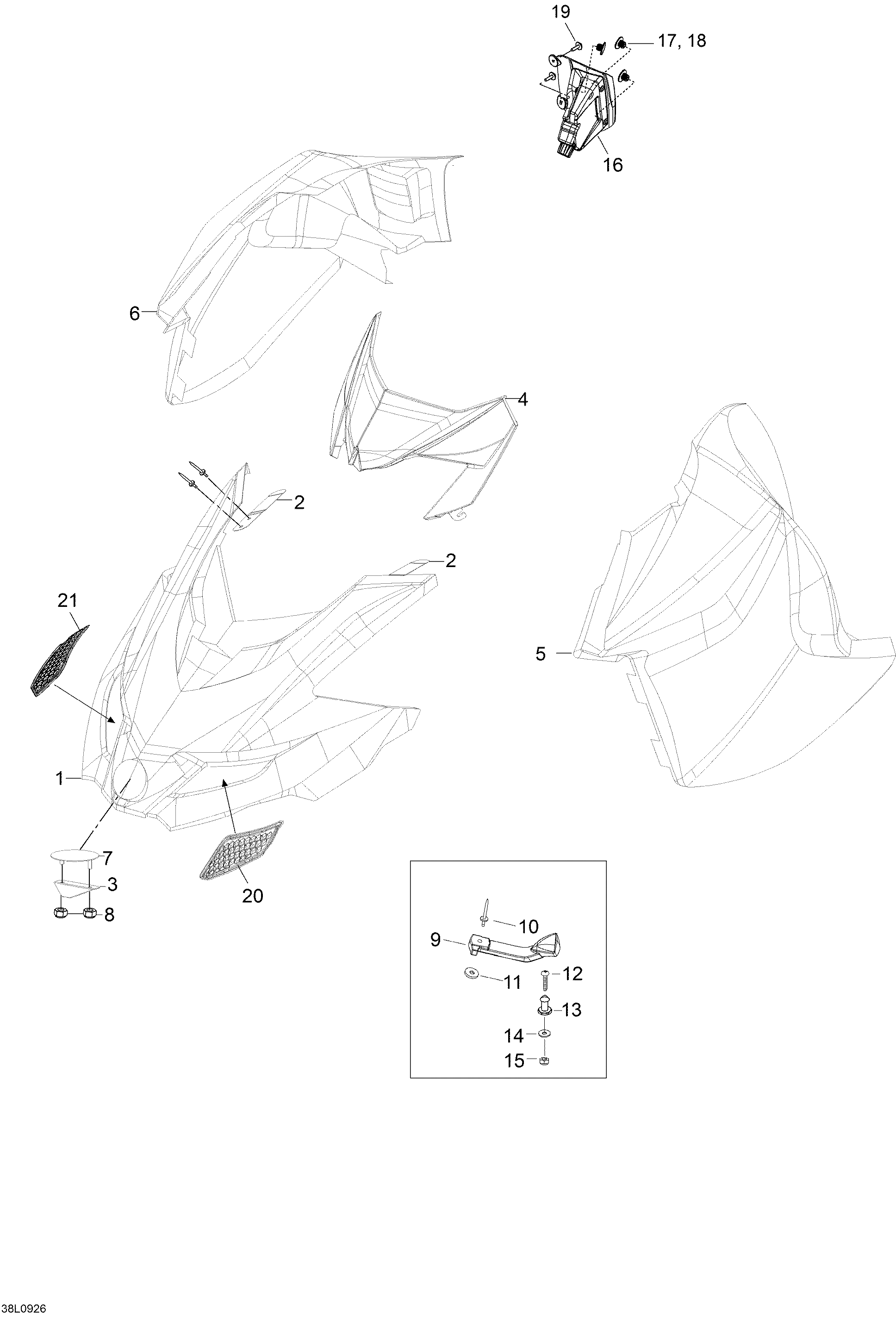

09- Hood для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1517304003 Hood/consoleHood/console
-
2517304152 Rear fastening plateRear fastening plate
-
3517304153 Front fastenung plateFront fastenung plate
-
4517303979 Headlamp coverHeadlamp cover
-
5517304337 L.H. PanelL.H. Panel
-
6517304004 R.H. PanelR.H. Panel
-
7605455262 Logo spacerLogo spacer
-
8233261414 Nut consoleNut console
-
95342952 LatchLatch
-
1036037 RivetRivet
-
1120008 Washer A5,3Washer A5,3
-
1240168 Screw M4 x 25Screw M4 x 25
-
13605449087 Counter rollerCounter roller
-
1420037 WasherWasher
-
1533008 Elastic stop nut M4Elastic stop nut M4
-
16517304322 Hood/console R.H.Hood/console R.H.
-
17275500241 Cap, BlackCap, Black
-
18413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
19250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
20517304141 R.H. Hood grillR.H. Hood grill
-
21517304008 L.H. Hood grillL.H. Hood grill
