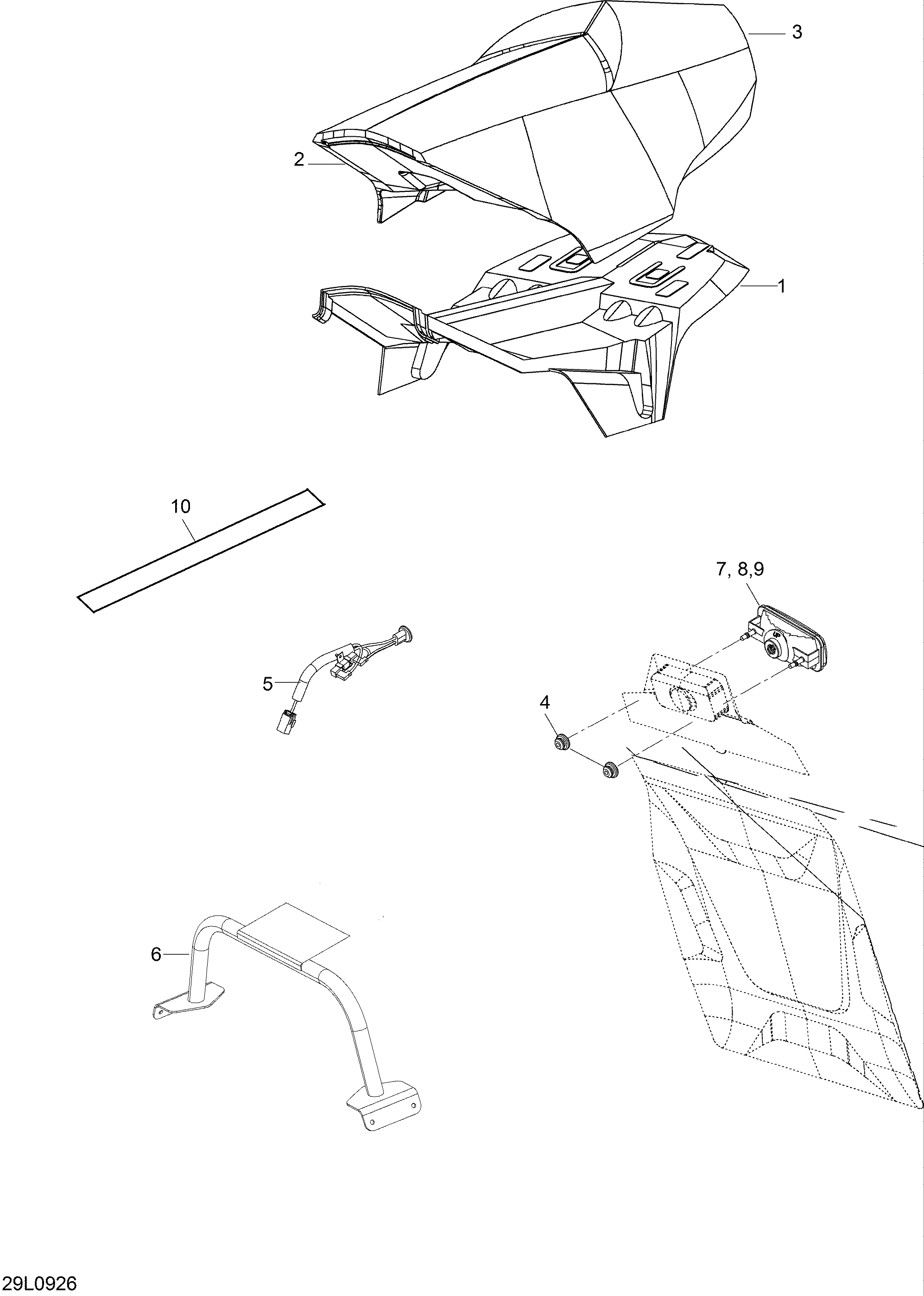

09- Seat для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1510005114 Seat baseSeat base
-
2510005189 FoamFoam
-
3510005098 CoverCover
-
4705001119 WasherWasher
-
5515176746 Wiring harnessWiring harness
-
6510005152 SupportSupport
-
7511000507 Tail lamp ass'y. Includes 7 to 9Tail lamp ass'y. Includes 7 to 9
-
8710000652 Lens boxLens box
-
9710000653 Tail lamp bulpTail lamp bulp
-
10520000829 TrimTrim
