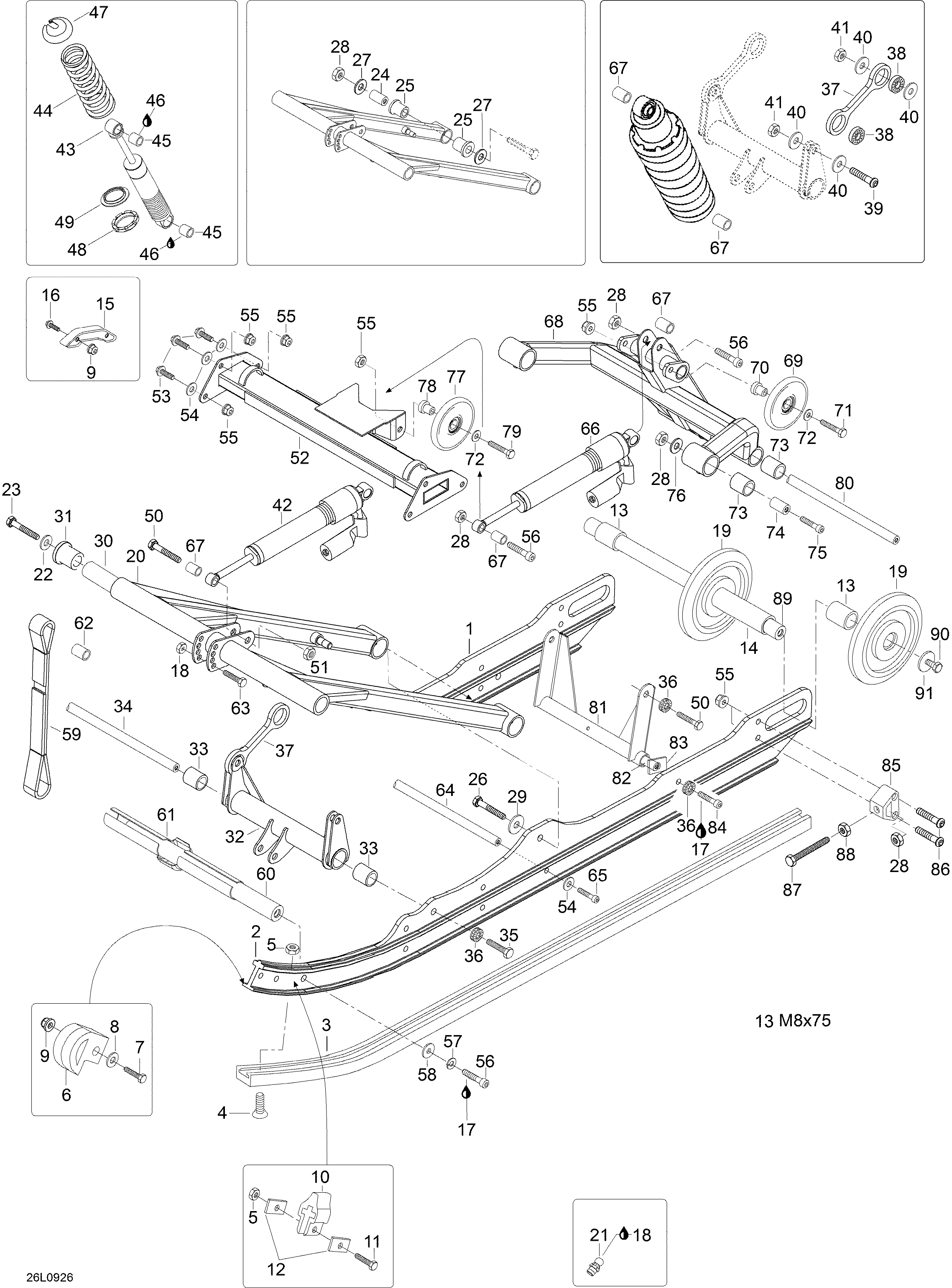

08- Rear Suspension для BRP Lynx Rave RS 600 - 2009
-
№АртикулНазвание
-
1605255122 R.H. RunnerR.H. Runner
-
2605255121 L.H. RunnerL.H. Runner
-
3605355646 ShoeShoe
-
5232561414 Elastic stop nut M6Elastic stop nut M6
-
6605348954 Runner protectorRunner protector
-
7207162544 Hex. screw M6 x 25Hex. screw M6 x 25
-
8234061410 Washer A6,4Washer A6,4
-
9233261414 Elastic flanged nut M6Elastic flanged nut M6
-
105442328 Rubber stopperRubber stopper
-
11207163044 Hex. screw M6 x 30Hex. screw M6 x 30
-
12548470 WasherWasher
-
135441512 SleeveSleeve
-
145448027 SleeveSleeve
-
155343191 Slide partSlide part
-
16207764044 Locking screw M6 x 40Locking screw M6 x 40
-
17293800005 Loctite 271, 10mlLoctite 271, 10ml
-
18293550033 Synthetic grease, 400Synthetic grease, 400
-
19503189478 Idler wheel 165Idler wheel 165
-
20503191989 Front armFront arm
-
21408200700 Grease nippleGrease nipple
-
22250200005 WasherWasher
-
23207026044 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
26207007044 Hex. screw M10 x 70Hex. screw M10 x 70
-
27605355801 WasherWasher
-
28232500416 Elastic stop nut M10Elastic stop nut M10
-
29503183300 Lock washerLock washer
-
30503192046 ShaftShaft
-
3131024 CushionCushion
-
32605355772 Front Aarm weldFront Aarm weld
-
3331024 CushionCushion
-
34605355800 ShaftShaft
-
3540852 Screw M10 x 55Screw M10 x 55
-
3620068 Lock washer D10Lock washer D10
-
37605254159 Link plateLink plate
-
38605631003 Ball bearingBall bearing
-
39205402546 Socket head screw M10 x 20Socket head screw M10 x 20
-
40234002600 WasherWasher
-
41232500416 Elastic stop nut M10Elastic stop nut M10
-
43503192079 Shock, front armShock, front arm
-
43503192110 Shock, rear armShock, rear arm
-
4425054 Spring, front armSpring, front arm
-
44605625000 Spring, rear armSpring, rear arm
-
4531094 CushionCushion
-
4632161 Loctite 641, 50mlLoctite 641, 50ml
-
47605354631 Spring stopperSpring stopper
-
48230048 CamCam
-
49230049 Spring guideSpring guide
-
50207004544 Hex. screw M10 x 45Hex. screw M10 x 45
-
51232500416 Elastic stop nut M10Elastic stop nut M10
-
52605354961 Upper armUpper arm
-
53207182544 Screw M8 x 25Screw M8 x 25
-
54605620002 Washer A8,4Washer A8,4
-
55233281414 Elastic flanged nut M8Elastic flanged nut M8
-
56205005044 Socket head screw M10 x 45Socket head screw M10 x 45
-
57234001410 Washer B10Washer B10
-
5820005 Washer, hardened M10Washer, hardened M10
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
63207084544 K-ruuvi M8 x 45 DIN931m8.8ZneK-ruuvi M8 x 45 DIN931m8.8Zne
-
645343471 ShaftShaft
-
6540136 Socket head screw M10 x 50Socket head screw M10 x 50
-
675446652 SleeveSleeve
-
68605354962 Rear armRear arm
-
6946100 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
71207084544 Screw M8 x 45Screw M8 x 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 Upper CushionUpper Cushion
-
7331024 Lower CushionLower Cushion
-
74503191927 ShaftShaft
-
75205027544 Socket head screwSocket head screw
-
7620040 Washer A10.5Washer A10.5
-
77572043500 Support wheelSupport wheel
-
78605454167 SleeveSleeve
-
79207083544 ScrewScrew
-
80605355118 ShaftShaft
-
81605353953 Rear armRear arm
-
82605355119 ShaftShaft
-
835446786 Spport plateSpport plate
-
8440852 Socket head screw M10 x 55Socket head screw M10 x 55
-
855341633 TensionerTensioner
-
86205484546 Socket head screw M8 x 45Socket head screw M8 x 45
-
87230100044 Hex. screw M10 x 100Hex. screw M10 x 100
-
88232006414 Nut M10Nut M10
-
895341511 ShaftShaft
-
91503183300 Aluslevy M10 hardenedAluslevy M10 hardened
