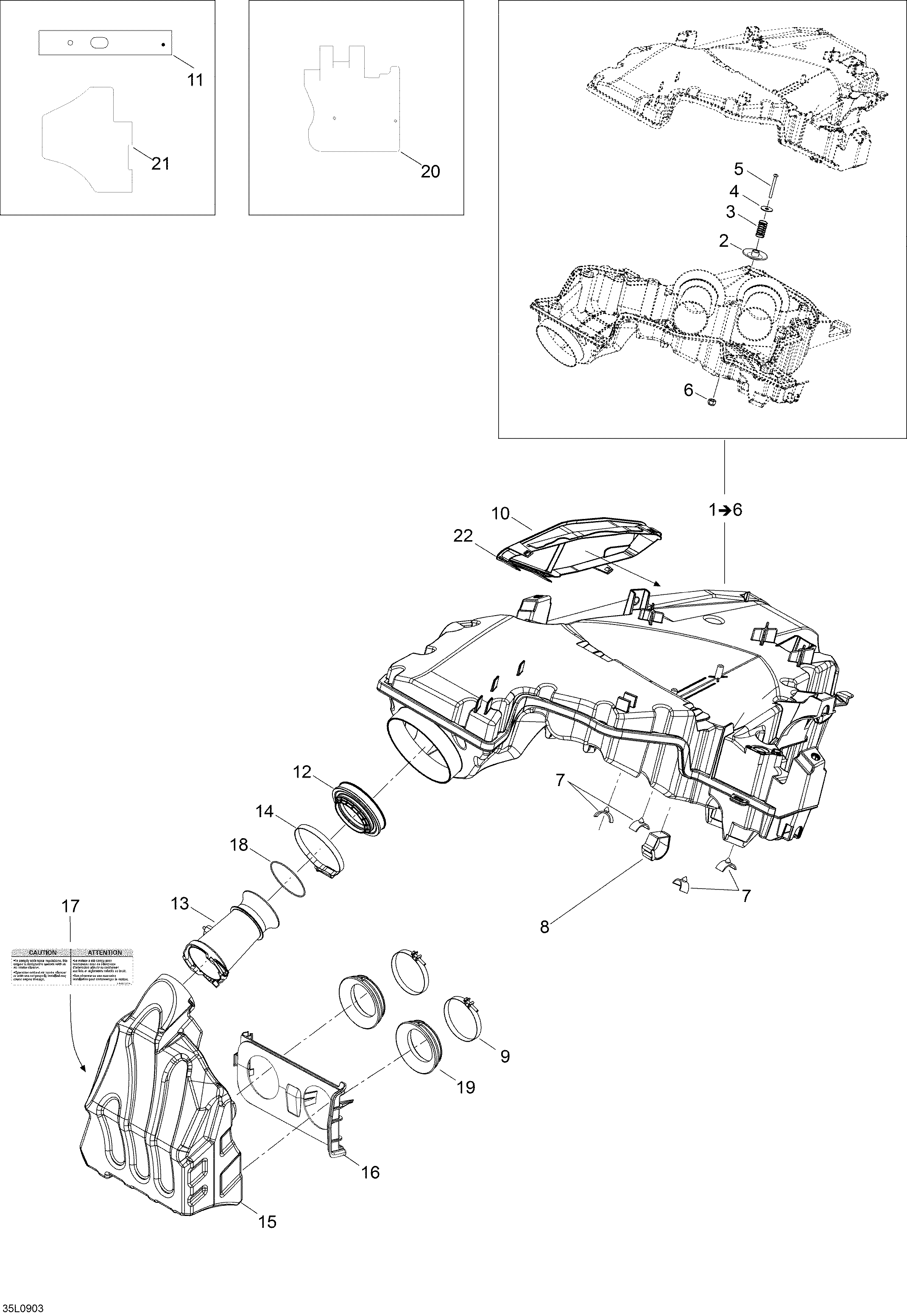

02- Air Intake System для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
1508000644 Secondaire Chamber Ass'y. Includes 1 to 6Secondaire Chamber Ass'y. Includes 1 to 6
-
2508000575 Check ValveCheck Valve
-
3508000576 SpringSpring
-
4224060201 Flat washerFlat washer
-
5205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6232541414 Nut M4Nut M4
-
7508000537 StopperStopper
-
8508000532 Strip VelcroStrip Velcro
-
9508000346 Gemi ClampGemi Clamp
-
10508000609 Air FilterAir Filter
-
11508000618 Reflective SheetReflective Sheet
-
12508000567 BootBoot
-
13508000542 FluteFlute
-
14514052983 ClampClamp
-
15508000610 Primary Chamber Ass'yPrimary Chamber Ass'y
-
16508000613 Adapter plateAdapter plate
-
17516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
18293300115 O-RingO-Ring
-
19508000614 Intake AdapterIntake Adapter
-
20508000604 Reflective SheetReflective Sheet
-
21508000622 Reflective SheetReflective Sheet
-
22508000569 InsertInsert
