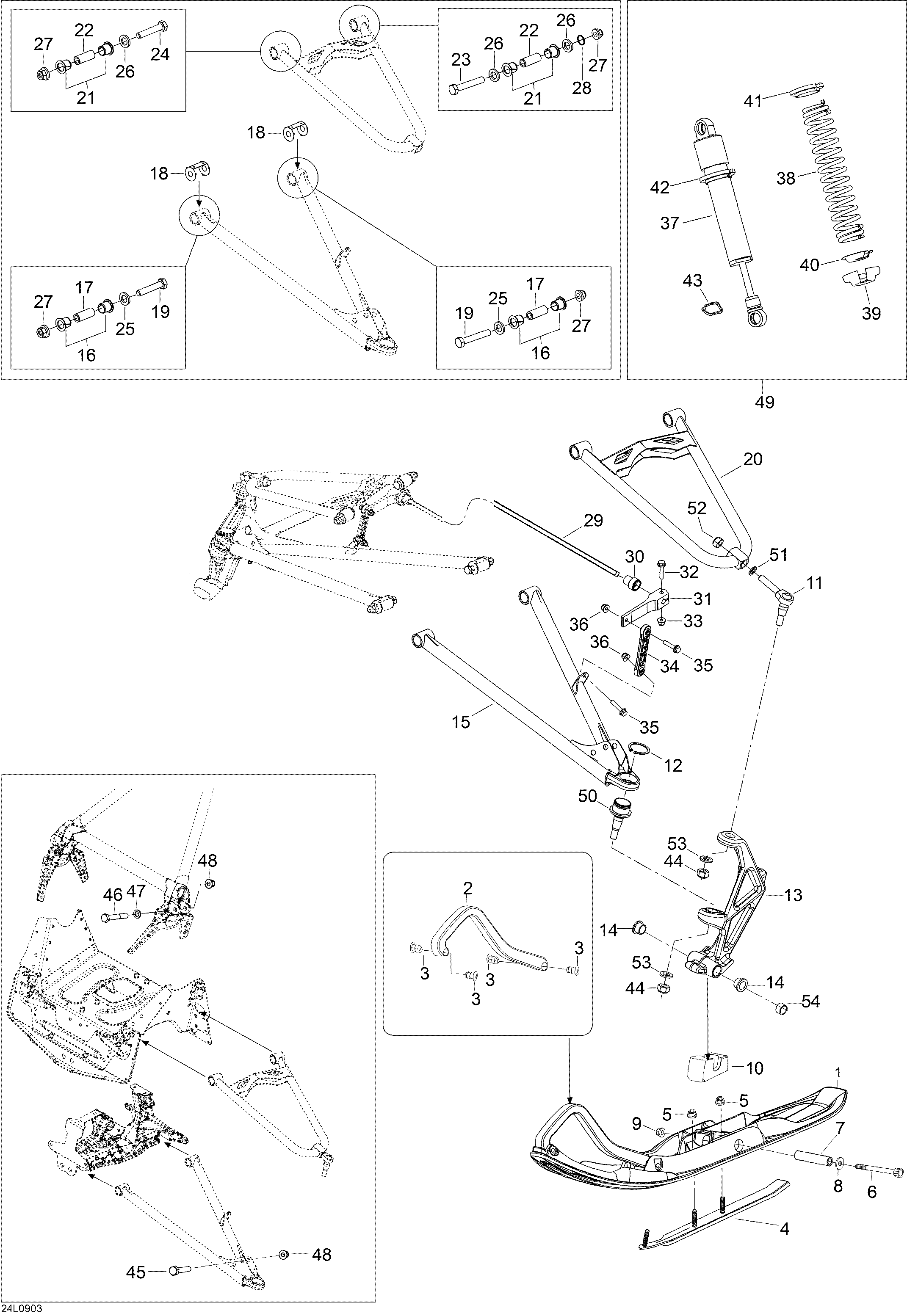

07- Front Suspension And Ski для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
1505072673 Plastic-SkiPlastic-Ski
-
2505071812 RetainerRetainer
-
3505071556 Plastic handle, full moonPlastic handle, full moon
-
4605352643 Runner ass'yRunner ass'y
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Socket head screw M10 x 130Socket head screw M10 x 130
-
7505072101 SpacerSpacer
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Stopper-skiStopper-ski
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505071997 LH Ski LegLH Ski Leg
-
13505071998 RH Ski LegRH Ski Leg
-
14505072690 CushionCushion
-
15505072640 RH Lower ArmRH Lower Arm
-
15505072641 LH Lower ArmLH Lower Arm
-
16505072208 CushionCushion
-
17505072393 Aluminum BushingAluminum Bushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072390 Upper ArmUpper Arm
-
21505072250 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072602 Stabilisator. OptionalStabilisator. Optional
-
30505072064 Bushing. OptionalBushing. Optional
-
31505072394 Stabilisator Lever. OptionalStabilisator Lever. Optional
-
32207663046 Flanged Hex. Screw M6 X 30. OptionalFlanged Hex. Screw M6 X 30. Optional
-
33233261416 Elastic Flanged Nut M6. OptionalElastic Flanged Nut M6. Optional
-
34505072204 Double Ball Joint Link. OptionalDouble Ball Joint Link. Optional
-
35207663046 Flanged Hex. Screw M6 X 30. OptionalFlanged Hex. Screw M6 X 30. Optional
-
36233261416 Elastic Flanged Nut M6. OptionalElastic Flanged Nut M6. Optional
-
37505072453 ShockShock
-
38505072668 SpringSpring
-
39230076 Spring StopperSpring Stopper
-
40505072637 CapCap
-
41503191872 Guide-springGuide-spring
-
42505070150 CamCam
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505072451 Shock ass'y, ski. Includes 37 to 42Shock ass'y, ski. Includes 37 to 42
-
50505072251 Lower Ball JointLower Ball Joint
-
51503189276 WasherWasher
-
52250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
53234021410 Flat Washer 12 mmFlat Washer 12 mm
-
54505071999 CushionCushion
