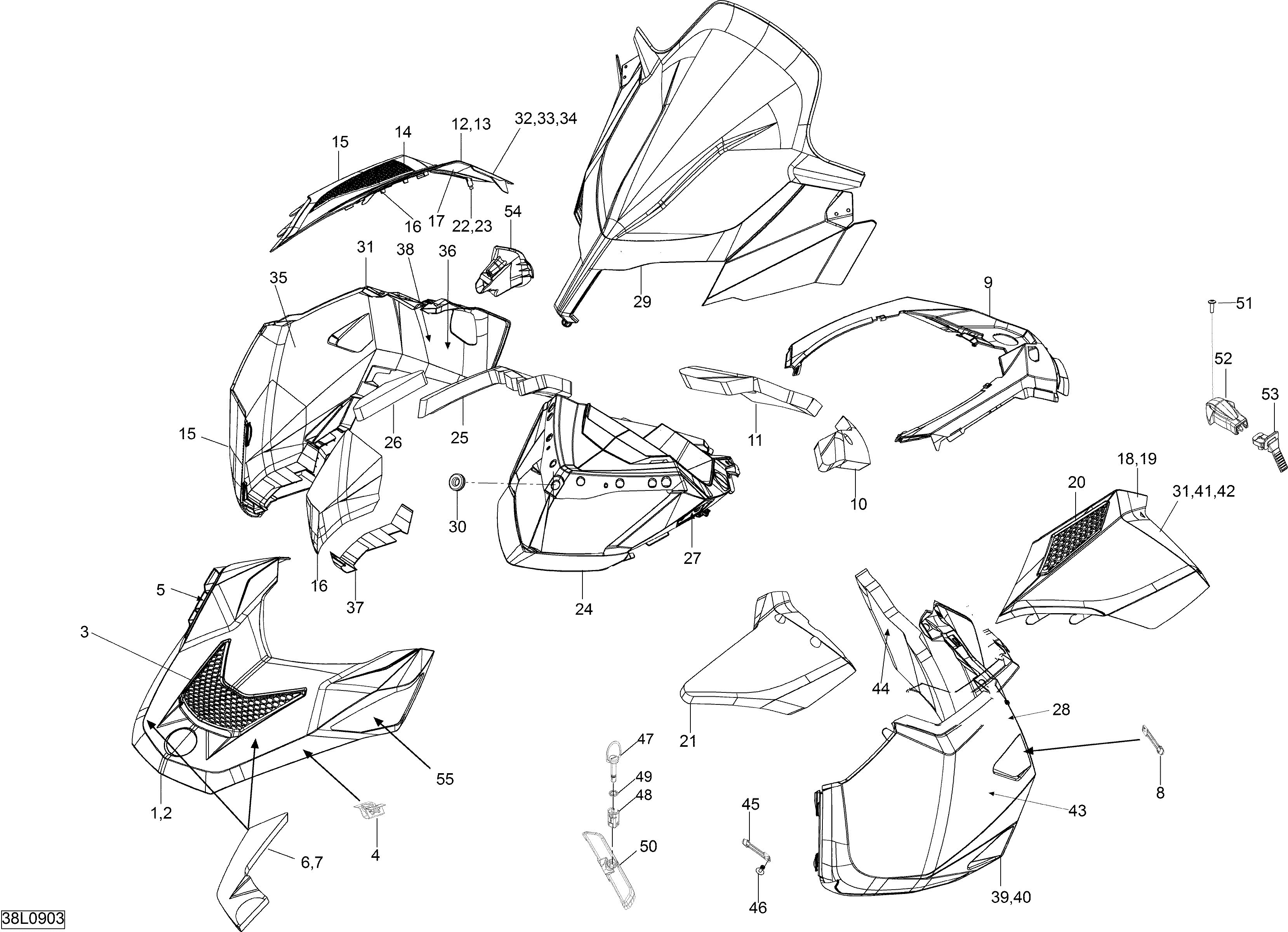

09- Hood для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
1517304244 Hood ass'y. NTC_HB-231Hood ass'y. NTC_HB-231
-
2517304249 HoodHood
-
3517303892 Hood grillHood grill
-
4517302785 LockLock
-
5517304155 Scoop grillScoop grill
-
6517304330 Isolation L.H.Isolation L.H.
-
7517304214 Isolation R.H.Isolation R.H.
-
8517304289 LatchLatch
-
9517304026 ConsolConsol
-
10517304317 Isolation L.H.Isolation L.H.
-
11517304318 Isolation R.H.Isolation R.H.
-
12517304245 Side panel upper ass'y R.H.. NTC_HB-176Side panel upper ass'y R.H.. NTC_HB-176
-
13517304248 Side panel upper R.H.Side panel upper R.H.
-
14517304015 Acces panel grill R.H.Acces panel grill R.H.
-
15517304016 Sidepanel grill lower R.H.Sidepanel grill lower R.H.
-
16517304311 IsolationIsolation
-
17517304312 IsolatioanIsolatioan
-
19517304689 Side panel upper L.H.Side panel upper L.H.
-
20517303893 Sidepanel grill L.H.Sidepanel grill L.H.
-
21517304313 IsoltionIsoltion
-
22517304295 AdapterAdapter
-
23250000146 ScrewScrew
-
24517304272 Indicator SupportIndicator Support
-
25517304314 IsolationIsolation
-
26517304315 IsolationIsolation
-
27517304316 IsolationIsolation
-
28517304319 IsolationIsolation
-
29517304284 Widshield assy, hight. NTC_STDWidshield assy, hight. NTC_STD
-
30517303756 GrommetGrommet
-
31517304184 Sidepanel R.H.. NTC_600SDISidepanel R.H.. NTC_600SDI
-
32293150108 RivetRivet
-
33250000113 ScrewScrew
-
34517124300 WasherWasher
-
35517303890 Isolation R.H.Isolation R.H.
-
36517304310 Isolation rear R.H.Isolation rear R.H.
-
37517304215 Heat protectorHeat protector
-
38517304216 Heat protectorHeat protector
-
39517303851 Sidepanel L.H. ass'ySidepanel L.H. ass'y
-
40517303853 Sidepanel L.H.Sidepanel L.H.
-
41506152156 SleeveSleeve
-
42517124300 WasherWasher
-
43517303891 Isolation L.H.Isolation L.H.
-
44517304309 Isolation rear L.H.Isolation rear L.H.
-
45517304290 LatchLatch
-
46293150108 RivetRivet
-
47517304296 Pin fasteningPin fastening
-
48517304297 Pin fastenerPin fastener
-
49517304298 Lock plateLock plate
-
50517304294 Side panel support. With 2010 sidepanel, use 517304497Side panel support. With 2010 sidepanel, use 517304497
-
5136005 RivetRivet
-
52517304075 End pieceEnd piece
-
53517303981 Latch-panelLatch-panel
-
54517303674 RH ConsoleRH Console
-
55508000609 FilterFilter
