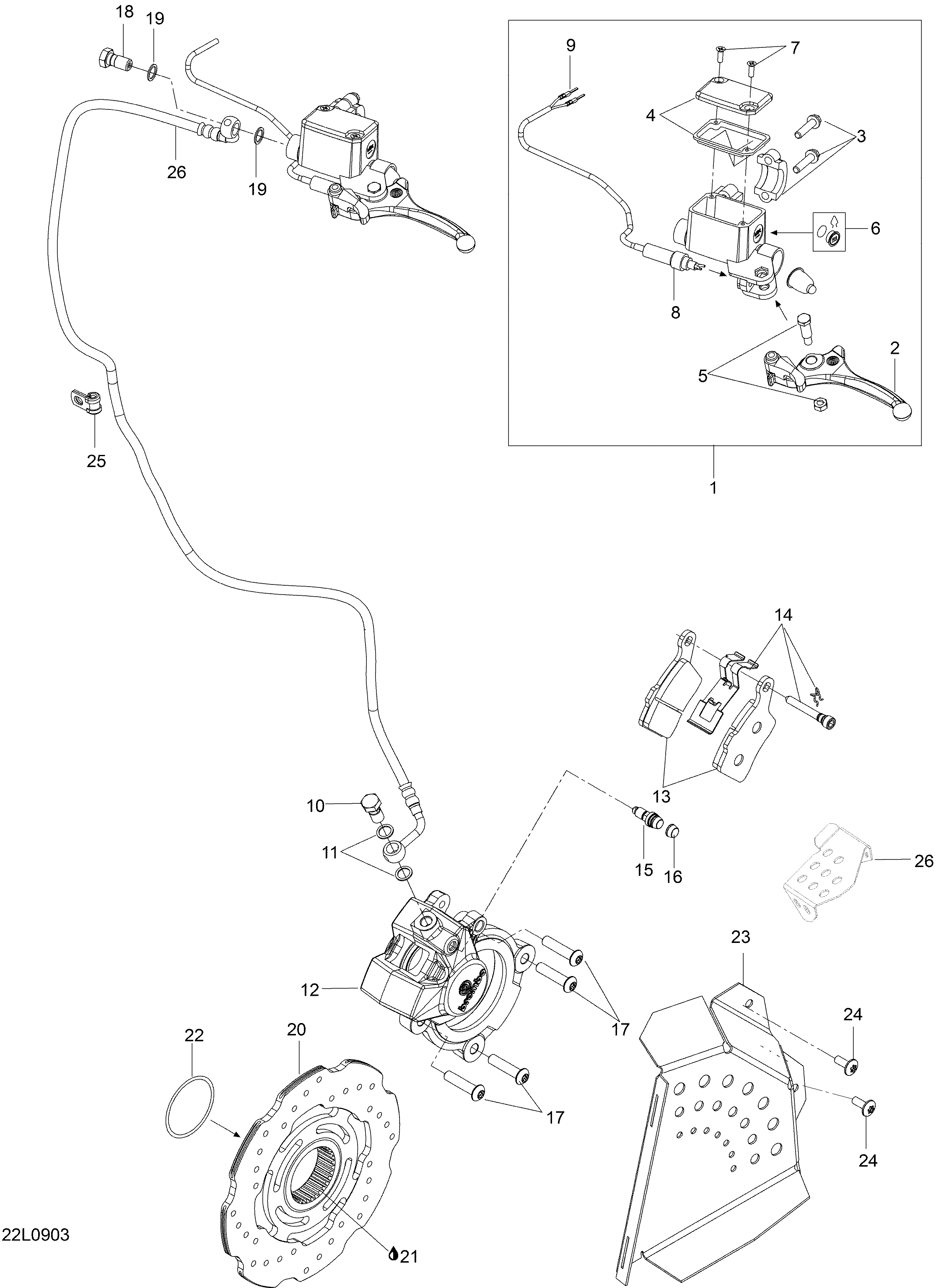

06- Hydraulic Brake для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
1507032432 Cylinder Master Ass'y. Includes 1 to 9Cylinder Master Ass'y. Includes 1 to 9
-
2507032428 LeverLever
-
3507032477 Clamp Ass'yClamp Ass'y
-
4415029900 CapCap
-
5415030000 Pin Ass'yPin Ass'y
-
7216141260 Screw M4 X 12Screw M4 X 12
-
8507032366 Microswitch. Includes 8 to 9Microswitch. Includes 8 to 9
-
9515175232 Male TerminalMale Terminal
-
10414920500 Banjo BoltBanjo Bolt
-
11414920600 WasherWasher
-
12507032499 Caliper Ass'y. Includes 12 to 16Caliper Ass'y. Includes 12 to 16
-
13507032489 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20507032488 DiskDisk
-
21293800070 Loctite 8150Loctite 8150
-
22293300134 O-RingO-Ring
-
23507032490 Disk ProtectorDisk Protector
-
24250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
26507032496 HoseHose
-
25705600459 ClampClamp
-
26518325626 Brake tube protectorBrake tube protector
