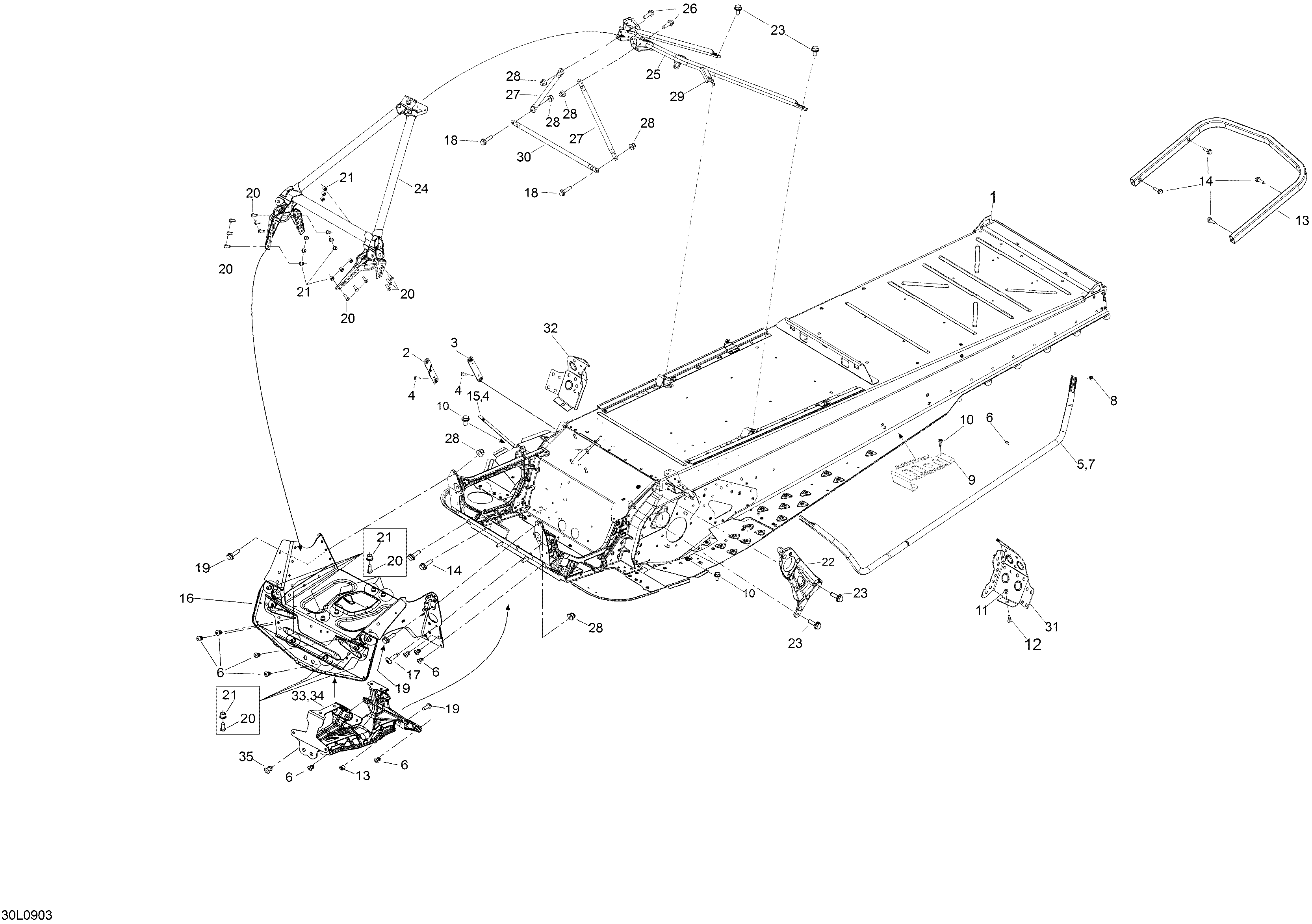

09- Frame для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
1518326073 Frame ass'y XU. NTC_600SDIFrame ass'y XU. NTC_600SDI
-
2518326123 Gearbox plate frontGearbox plate front
-
3518326124 Gearbox plate rearGearbox plate rear
-
4390402200 RivetRivet
-
5605254999 Footrest support tube L.H.Footrest support tube L.H.
-
6293150163 RivetRivet
-
7605255000 Footrest support tube R.H.Footrest support tube R.H.
-
8207561644 ScrewScrew
-
9605354068 Footrest blackFootrest black
-
10207662044 ScrewScrew
-
11233281414 NutNut
-
12250000128 ScrewScrew
-
13511000563 Rear bumberRear bumber
-
14207661644 RuuviRuuvi
-
15514054616 Spring fasteningSpring fastening
-
16518325924 Cross member. NTC_AACross member. NTC_AA
-
17210262080 ScrewScrew
-
18207662544 ScrewScrew
-
19293150175 MonoboltMonobolt
-
20293150148 RivetRivet
-
21293150149 Huck collarHuck collar
-
22518325933 Bearing baseBearing base
-
23207582586 ScrewScrew
-
24518325929 Member-front. NTC_AAMember-front. NTC_AA
-
25518326103 Support tube upperSupport tube upper
-
26207562034 ScrewScrew
-
27518325114 SupportSupport
-
28233261414 NutNut
-
29414227300 SpringSpring
-
30518325115 Upper columUpper colum
-
31518325528 Footrest L.H.Footrest L.H.
-
32518325529 Footrest R.H.Footrest R.H.
-
33518327475 SupportSupport
-
34518327475 SupportSupport
-
35293150164 RivetRivet
